- Challenger 2000
- Challenger 2000
07- Steering System

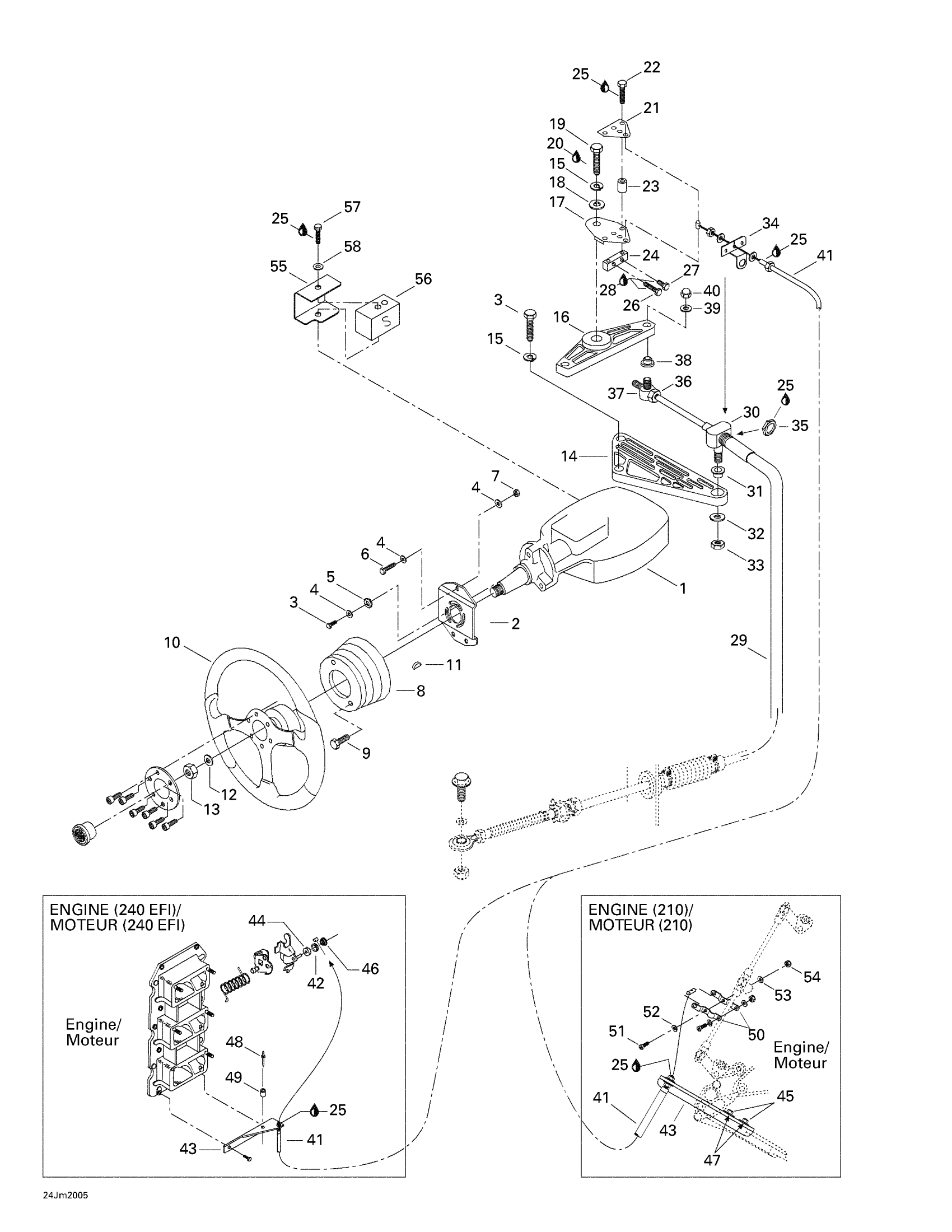

Sea-doo Challenger 2000 07- Steering System Diagram
#
1
HELM ASS'Y - Call your local BRP dealership
204390244
Unavailable
2
Support
277000383
Unavailable
3
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
4
Stainless Flat Washer M6
234061600
$0.33
5
External Serrated Lock Washer 6 mm
234461608
$1.15
6
Hex. Screw M6 X 30
207163060
$1.48
7
Hex. Elastic Stop Nut M6
232561600
$1.15
8
COLLAR, BLACK - Call your local BRP dealership
204390030
Unavailable
9
SCREW 8-32 X 1-1/4 - Call your local BRP dealership
204390059
Unavailable
10
Steering | Includes 11 to 16
204390170
Unavailable
11
WOODRUFF KEY - Call your local BRP dealership
277000384
Unavailable
12
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
13
LOCK NUT 1/2-20 - Call your local BRP dealership
211100021
Unavailable
14
CABLE SUPPORT - Call your local BRP dealership
277000458
Unavailable
15
Lock Washer 1/4”
211200025
$1.29
16
ARM - Call your local BRP dealership
204390040
Unavailable
17
Lower Clip
204390231
Unavailable
18
Spacer
204390057
Unavailable
19
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership
211000054
Unavailable
20
Loctite 271, 10 ml
293800005
$26.99
21
UPPER CLIP - Call your local BRP dealership
204390267
Unavailable
22
Hex. Screw M6 X 25
207162560
$1.47
23
SPACER 6.7 MM - Call your local BRP dealership
277000584
Unavailable
24
Adjustment Block
204390056
Unavailable
25
Loctite 243, 10 ml
293800060
$21.49
26
Hex. Screw M5 X 35
207153560
Unavailable
27
HEX. SCREW M5 X 25 - Call your local BRP dealership
207152560
Unavailable
28
Not Available As Spare Part - Friction Washer
Unavailable
29
STEERING CABLE ASS'Y - Call your local BRP dealership
204390172
Unavailable
30
PIVOT 3/8? - Call your local BRP dealership
277000461
Unavailable
31
Flanged Bushing
293350014
$12.99
32
Flat Washer 10 mm, Stainless
234001600
$1.15
33
LOCK NUT - Call your local BRP dealership
211100024
Unavailable
34
Cable Support | CHALLENGER 1800 (5774).
204390232
Unavailable
35
HEX. JAM NUT 5/8-18 - Call your local BRP dealership
204390053
Unavailable
36
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
37
PIVOT - Call your local BRP dealership
277000456
Unavailable
38
BUSHING - Call your local BRP dealership
293350012
Unavailable
39
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
40
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
41
Low Speed Cable Control | CHALLENGER 2000 (5695).
204390179
Unavailable
Low Speed Control Cable | UTOPIA 210. UTOPIA 240 EFI.
204390188
Unavailable
42
Ring Retainer | UTOPIA 240 EFI.
204390180
Unavailable
43
Cable Support | CHALLENGER 1800 (5774).
204390233
Unavailable
Support Cable (Low Speed) | UTOPIA 240 EFI.
204390181
Unavailable
44
CABLE RETAINER (LOW SPEED) - Call your local BRP dealership | UTOPIA 240 EFI.
204390268
Unavailable
45
HEX. SCREW M6 X 12 - Call your local BRP dealership
207151260
Unavailable
46
Cable Cover | UTOPIA 240 EFI.
204390269
$76.99
47
Helical Lock Washer M5
234151601
$1.15
48
Pop RIvet 1/8 X ,375
293150285
$0.33
49
Stopper - Rubber | UTOPIA 240 EFI.
204390255
Unavailable
50
Cable Attachment | CHALLENGER 1800 (5774).
204390234
Unavailable
51
SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership
205051660
Unavailable
52
Helical Lock Washer M5
234151601
$1.15
53
Flat Washer M5, Stainless
234051600
$0.77
54
Hex. Elastic Nut M5 | X
232551600
$1.15
55
Bumper Support
204390245
Unavailable
56
Bumper
204390246
Unavailable
57
HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership
204100014
Unavailable
58
Flat Washer M6, Stainless
234062600
$0.77
