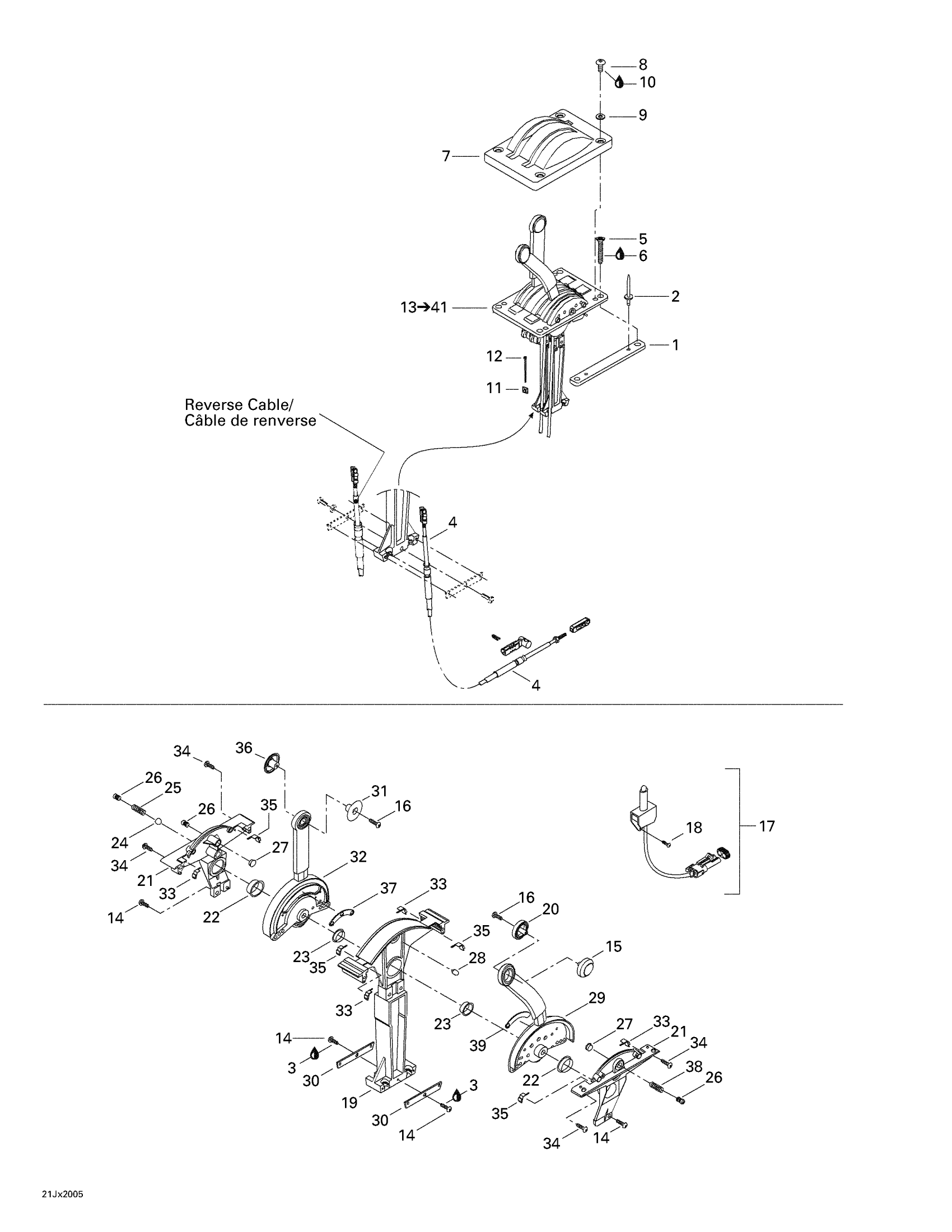

Sea-doo Challenger 2000 05- Control Handle Diagram

#

Description
Price

1

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

2

Pop Rivet 3/16"

293150013

$1.37

3

Loctite 243, 10 ml

293800060

$21.49

4

Throttle Cable

204390171

Unavailable

5

SCREW M5 X 30 - Call your local BRP dealership

205353060

Unavailable

6

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

7

Control Cover

204390123

Unavailable

8

Phillips Screw M4 X 10

208641060

$1.01

9

Flat Washer 4 mm

234040600

$0.55

10

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

11

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

12

Tie Wrap 94 mm | 4X4

293750001

$1.03

13

Ultraflex Control Ass'y | Includes 18 to 46

204390377

$1.00

14

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

15

HALF-THROTTLE HANDLE, THREADED - Call your local BRP dealership

277000415

Unavailable

16

SCREW M3.5 X 25 - Call your local BRP dealership

277000419

Unavailable

17

NEUTRAL SWITCH ASS'Y - Call your local BRP dealership

278001195

Unavailable

18

SCREW M3 X 6 - Call your local BRP dealership

208630660

Unavailable

19

LH Frame

204390224

Unavailable

20

HALF-THROTTLE HANDLE - Call your local BRP dealership

277000416

Unavailable

21

Half-Case

277000703

Unavailable

22

BUSHING - Call your local BRP dealership

277000397

Unavailable

23

BUSHING - Call your local BRP dealership

277000398

Unavailable

24

BALL - Call your local BRP dealership

277000399

Unavailable

25

SPRING - Call your local BRP dealership

277000400

Unavailable

26

CAP SCREW - Call your local BRP dealership

277000402

Unavailable

27

FRICTION INSERT - Call your local BRP dealership

277000403

Unavailable

28

BLOCKING PIVOT - Call your local BRP dealership

277000404

Unavailable

29

THROTTLE LEVER - Call your local BRP dealership

277000655

Unavailable

30

RETAINING PLATE - Call your local BRP dealership

204390227

Unavailable

31

HALF-SHIFT HANDLE - Call your local BRP dealership

277000418

Unavailable

32

SHIFT LEVER - Call your local BRP dealership

277000414

Unavailable

33

RH Water Seal

277000423

Unavailable

34

SCREW M5 X 20 - Call your local BRP dealership

204100016

Unavailable

35

LH Water Seal

277000424

Unavailable

36

HALF-SHIFT HANDLE, THREADED - Call your local BRP dealership

277000417

Unavailable

37

Shift Lever Spacer

277000408

Unavailable

38

SPRING - Call your local BRP dealership

277000401

Unavailable

39

THROTTLE LEVER SPACER - Call your local BRP dealership

277000659

Unavailable

40

CLEVIS L26 - Call your local BRP dealership | Not Shown

204390226

Unavailable

41

CLEVIS L25 - Call your local BRP dealership

204390225

Unavailable
