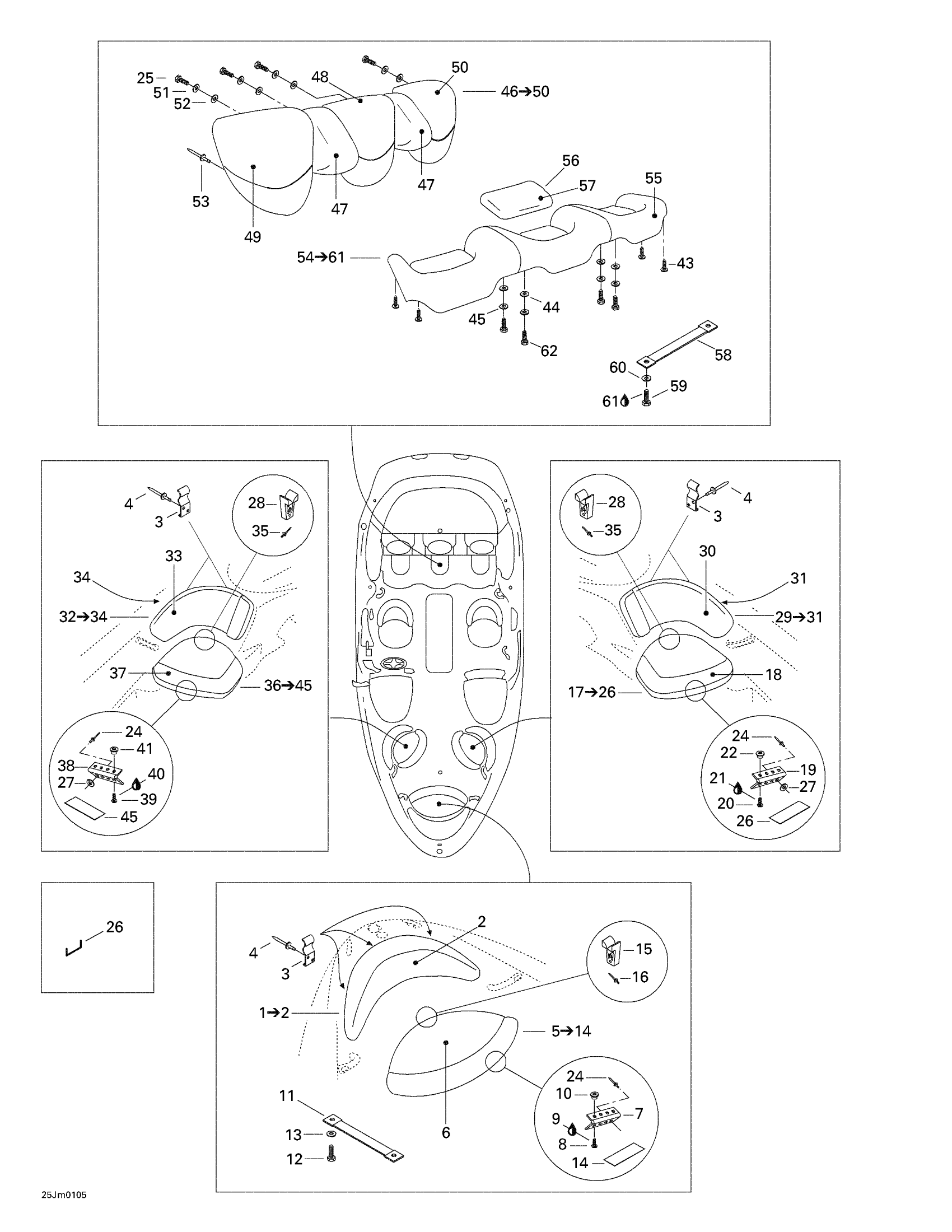

Sea-doo Challenger 2000 09- Seat (front And Rear) Diagram

#

Description
Price

1

Front Backrest Ass'y | Includes 1 - 2.

204610687

Unavailable

2

Front Backrest Cover

204610688

Unavailable

3

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

4

Pop Rivet 3/16"

293150043

$2.09

5

Front Seat Ass'y | Includes 5 - 12.

204610689

Unavailable

6

Front Seat ass'y | Includes 6 - 12.

204610989

Unavailable

7

Seat Hinge

204610940

Unavailable

8

SOCKET HEAD SCREW 10-32 X .75 - Call your local BRP dealership

204100045

Unavailable

9

Loctite 243, 10 ml

293800060

$21.49

10

TEE-NUT #10-32 - Call your local BRP dealership

204100044

Unavailable

11

Front Seat Strap

204610941

Unavailable

12

Flange Screw K40 X 20

241642060

$1.15

13

Flat Washer 4 mm, Stainless

234042600

$1.15

14

Hinge Cover

204610972

Unavailable

15

Seat Latch

204610961

Unavailable

16

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

17

LH Front Seat Ass'y | Includes 17 - 24.

204610692

Unavailable

18

LH Front Seat Cover

204610964

Unavailable

19

Seat Hinge

204610940

Unavailable

20

SOCKET HEAD SCREW 10-32 X .75 - Call your local BRP dealership

204100045

Unavailable

21

Loctite 243, 10 ml

293800060

$21.49

22

TEE-NUT #10-32 - Call your local BRP dealership

204100044

Unavailable

23

Hinge Cover

204610972

Unavailable

24

Pop Rivet 3/16"

293150043

$2.09

25

Hex. Screw M6 X 40, Scotch Grip

207364060

Unavailable

26

Staple

293730005

Unavailable

27

Flat Washer M5, Stainless

234051600

$0.77

28

Seat Latch

204610961

Unavailable

29

LH Backrest Ass'y | Includes 26 - 28.

204610947

Unavailable

30

Backrest Cover

204610954

Unavailable

31

Was 293200017 Neoprene Seal

219704365

$149.99

32

RH Backrest Ass'y | Includes 29 - 31.

204610948

Unavailable

33

Backrest Cover

204610957

Unavailable

34

Was 293200017 Neoprene Seal

219704365

$149.99

35

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

36

RH Front Seat Ass'y

204610694

Unavailable

37

RH Front Seat Cover

204610971

Unavailable

38

Seat Hinge

204610940

Unavailable

39

SOCKET HEAD SCREW 10-32 X .75 - Call your local BRP dealership

204100045

Unavailable

40

Loctite 243, 10 ml

293800060

$21.49

41

TEE-NUT #10-32 - Call your local BRP dealership

204100044

Unavailable

42

Hinge Cover

204610972

Unavailable

43

Dart

293730021

$7.79

44

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

45

Flat Washer M6, Stainless

234062600

$0.77

46

Rear Backrest Ass'y | Includes 46 - 50.

204611306

Unavailable

47

Rear Bump Cover

204610696

Unavailable

48

Backrest Cover (Metalic Quartz)

204610697

Unavailable

49

RH Backrest Cover (Metalic Quartz)

204610698

Unavailable

50

LH Backrest Cover (Metalic Quartz)

204610699

Unavailable

51

Flat Washer M6, Stainless

234062600

$0.77

52

Flat Washer 8 mm, Stainless

234082600

$2.43

53

RIVET - Call your local BRP dealership

293150065

Unavailable

54

Rear Seat Ass'y | Includes 43 - 51.

204610700

Unavailable

55

Rear Seat Cover

204610701

Unavailable

56

Rear Seat Cushing Ass'y | Includes 56 - 57.

204610719

Unavailable

57

Not Available As Spare Part - Friction Washer

Unavailable

58

Rear Seat Strap

204610703

Unavailable

59

Hex. Screw M6 X 16

207161660

$1.59

60

Flat Washer M6, Stainless

234062600

$0.77

61

Loctite 243, 10 ml

293800060

$21.49

62

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.89
