Description

Price

1

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

2

FLEXIBLE EXHAUST - Call your local BRP dealership

204340294

Unavailable

3

Tridon Clamp

293650064

$8.29

4

Exhaust Hose | 5171 (240 EFI)

204340290

Unavailable

5

Exhaust Hose | 5171 (240 EFI)

204340291

Unavailable

6

Exhaust Outlet Ass'y

204340252

Unavailable

7

Tridon Clamp

293650112

$12.99

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

Stainless Flat Washer M6

234061600

$0.33

10

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

208663560

Unavailable

11

Silicone Sealant 51388, 300 ml

296000309

$36.99

12

LH Muffler Support | 5171 (240 EFI)

204340218

Unavailable

13

RH Muffler Support | 5171 (240 EFI)

204340219

Unavailable

14

LH Rear Muffler Support

204340220

Unavailable

15

RH Muffler Support | 5171 (240 EFI)

204340221

Unavailable

16

Strap Clip 90°

204060017

Unavailable

17

Pop Rivet 3/16"

293150008

$0.50

18

STRAP - Call your local BRP dealership

293850022

Unavailable

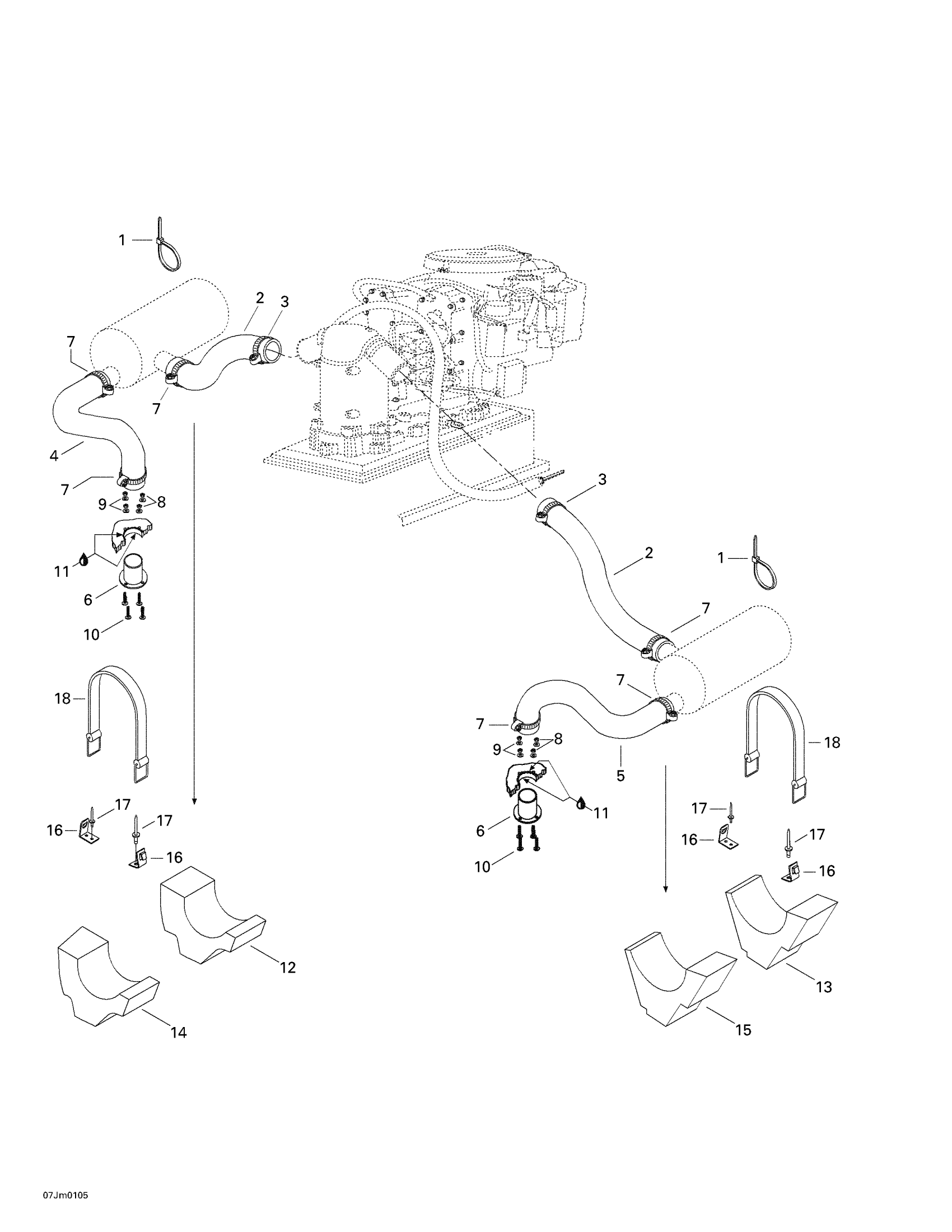

Sea-doo Challenger 2000 01- Exhaust System Diagram

WRAP_TIE 828 X 9 - Call your local BRP dealership

FLEXIBLE EXHAUST - Call your local BRP dealership

Tridon Clamp

Exhaust Hose | 5171 (240 EFI)

Exhaust Hose | 5171 (240 EFI)

Exhaust Outlet Ass'y

Tridon Clamp

Hex. Elastic Stop Nut M6

Stainless Flat Washer M6

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

Silicone Sealant 51388, 300 ml

LH Muffler Support | 5171 (240 EFI)

RH Muffler Support | 5171 (240 EFI)

LH Rear Muffler Support

RH Muffler Support | 5171 (240 EFI)

Strap Clip 90°

Pop Rivet 3/16"

STRAP - Call your local BRP dealership
