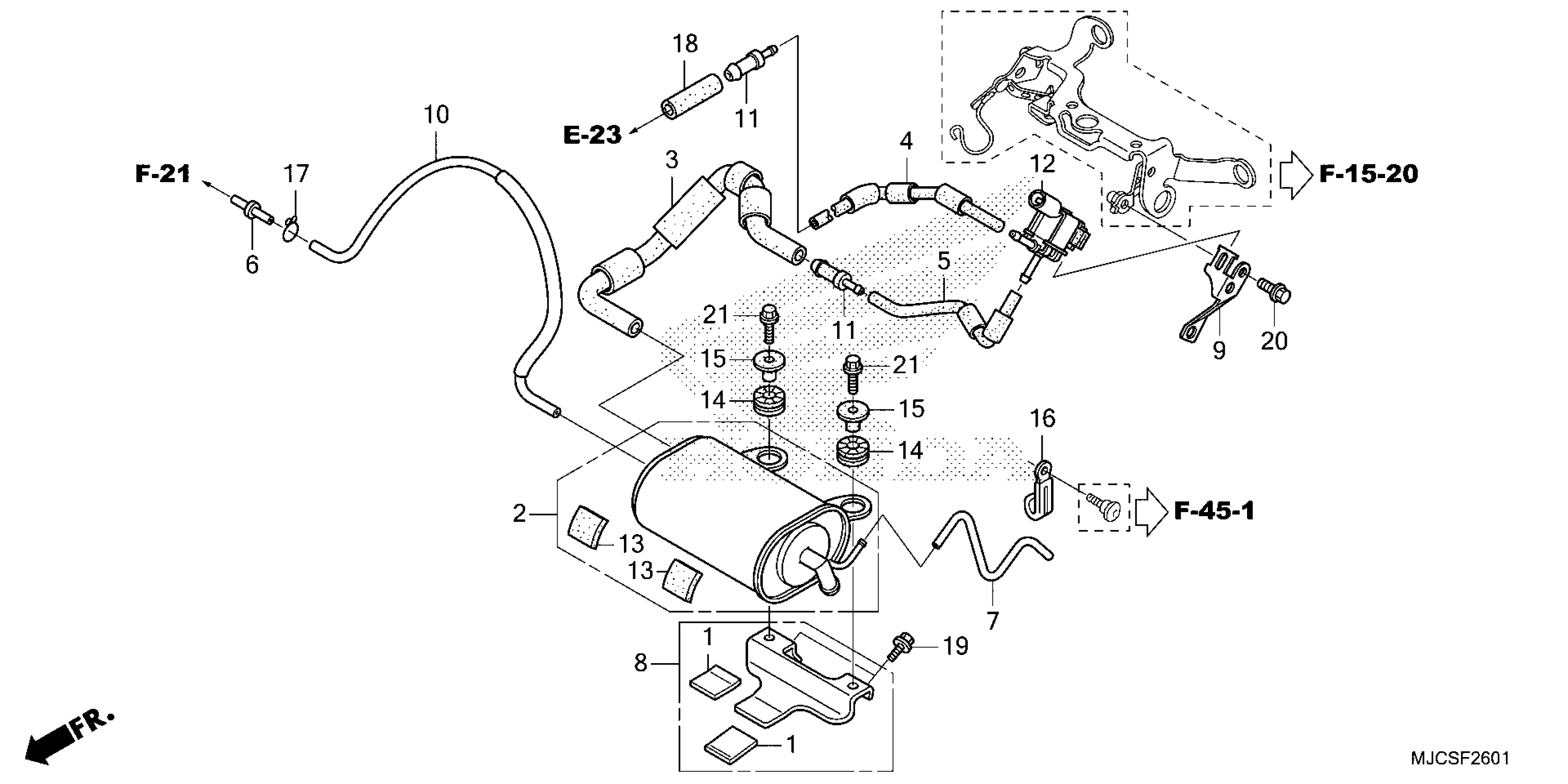

Honda CBR600RA7AC (25) MOTORCYCLE, JPN, VIN# JH2PC408-SK900001 TO JH2PC408-SK999999 EVAP CANISTER (2) Diagram

CUSHION, AIR CLEANER HOUSING

17209-GN2-300

$2.85

EVAPORATIVE EMISSION CANISTER

17410-MFJ-L00

$290.48

TUBE A, CANISTER PURGE CONTROL VALVE

17412-MFJ-L40

$20.18

TUBE, FIVE WAY-PURGE CONTROL VALVE

17413-MFJ-L40

$10.92

TUBE B, CANISTER PURGE CONTROL VALVE

17414-MFJ-L40

$8.05

JOINT (3.5) (TWO-WAY)

17414-PC6-660

$6.45

TUBE, CANISTER DRAIN

17434-MFJ-L00

$5.13

STAY, CANISTER

17440-MFJ-L00

$17.36

STAY, PCS

17445-MFJ-L40

$16.26

TUBE (CANISTER-2WAY)

17556-MFJ-L40

$23.34

JOINT, BREATHER TUBE

17561-MEE-000

$4.41

VALVE ASSY., PURGE CONTROL SOLENOID

36160-P0A-A01

$400.25

RUBBER, BATTERY

50328-HP1-600

$1.62

RUBBER B, SEAT MOUNTING

77208-KW7-900

$3.37

COLLAR (6.2X13)

90501-MA3-720

$4.78

CLIP (2X60)

91410-KPE-C20

$3.16

CLIP, TUBE (B8) CLIP, TUBE (B7)

95002-02080

$1.80

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$23.91

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
