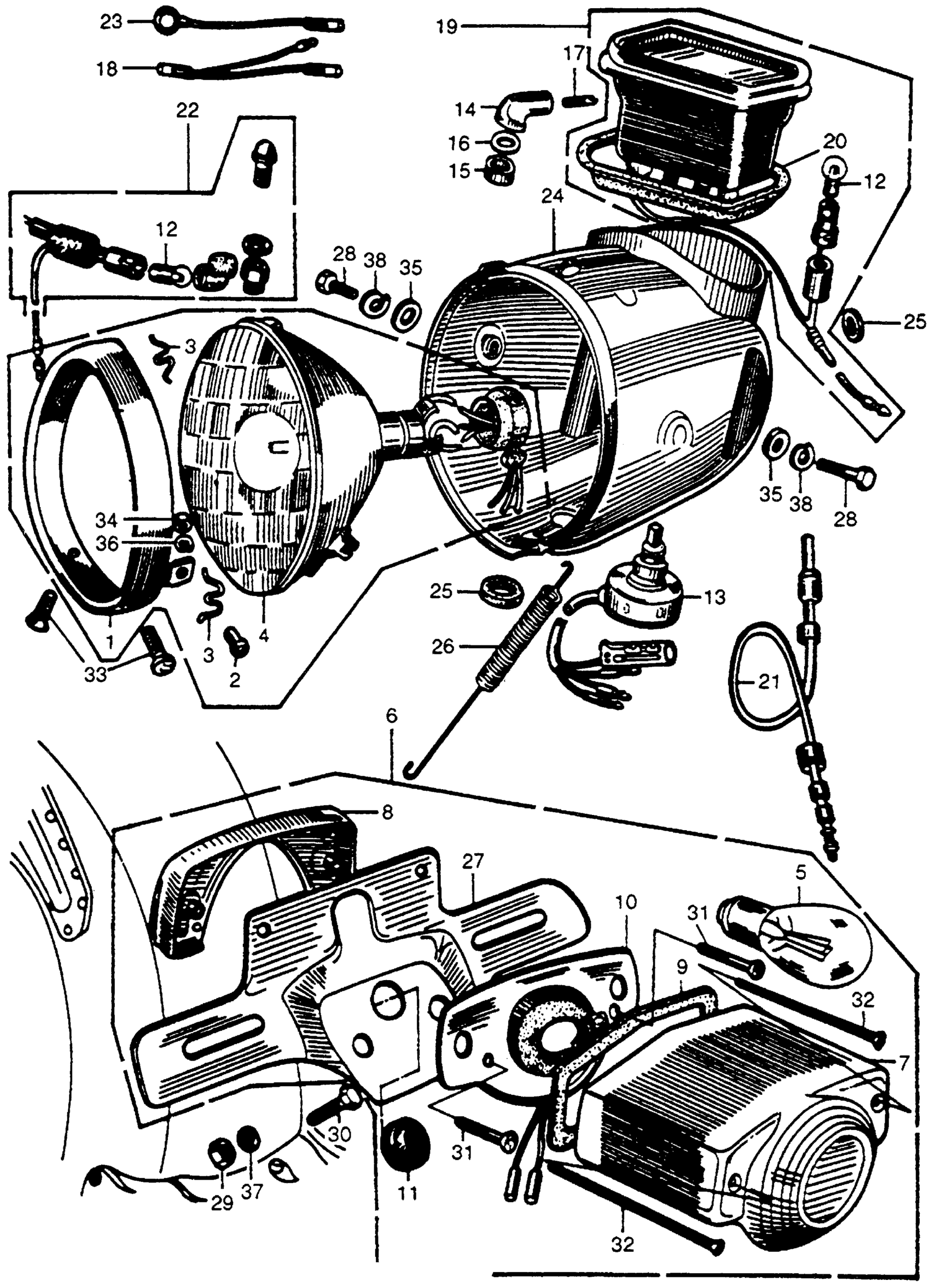

Honda CB72A MOTORCYCLE, JPN, VIN# CB72-100001 HEADLIGHT + METER + TAILLIGHT Diagram

#

Description
Price

1

RIM, HEADLIGHT (NOT AVAILABLE)

33101-268-672

Unavailable

2

SCREW (3MM) (NOT AVAILABLE) This part replaces 33102-200-000.

33102-200-003

Unavailable

2

SCREW (3MM) (NOT AVAILABLE)

33102-200-003

Unavailable

3

SPRING, UNIT HOLDER

33108-268-000

Unavailable

4

SEALED BEAM UNIT (NOT AVAILABLE)

33120-268-670

Unavailable

5

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 33551-568-610.

34906-313-671

$6.67

5

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

5

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34906-268-810.

34906-313-671

$6.67

5

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

6

TAILLIGHT ASSY. (NOT AVAILABLE)

33700-268-601

Unavailable

7

LENS, TAILLIGHT

33701-268-680

Unavailable

8

PLATE, TAILLIGHT LENS HOLDER

33705-268-670

Unavailable

9

GASKET, TAILLIGHT LENS

33709-268-810

Unavailable

10

SOCKET, TAILLIGHT (NOT AVAILABLE)

33710-268-610

Unavailable

11

GROMMET B, TAILLIGHT CABLE (NOT AVAILABLE)

33714-268-000

Unavailable

12

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

13

SWITCH ASSY., LIGHT (NOT AVAILABLE)

35150-268-810

Unavailable

14

KNOB, LIGHT SWITCH (NOT AVAILABLE) This part replaces 35151-268-000.

35151-292-751

Unavailable

14

KNOB, LIGHT SWITCH (NOT AVAILABLE)

35151-292-751

Unavailable

15

NUT, LIGHT SWITCH (NOT AVAILABLE)

35152-268-000

Unavailable

16

WASHER, LIGHTING SWITCH (NOT AVAILABLE)

35153-268-000

Unavailable

17

SCREW, SETTING

35154-268-000

Unavailable

18

WIRE A, PILOT LAMP (NOT AVAILABLE)

35451-262-305

Unavailable

19

SPEEDOMETER/TACHOMETER ASSY. (NOT AVAILABLE) This part replaces 37200-268-812.

37200-268-820

Unavailable

19

SPEEDOMETER/TACHOMETER ASSY. (NOT AVAILABLE) This part replaces 37200-268-813.

37200-268-820

Unavailable

19

SPEEDOMETER/TACHOMETER ASSY. (NOT AVAILABLE)

37200-268-820

Unavailable

19

SPEEDOMETER/TACHOMETER ASSY. (NOT AVAILABLE) | Use from Frame SN 1003907

37200-268-821

Unavailable

20

GASKET, SPEEDOMETER (NOT AVAILABLE) | Use from Frame SN 0010001 to 0020634

37242-268-000

Unavailable

20

GASKET, SPEEDOMETER (NOT AVAILABLE) | Use from Frame SN 0020635 to 0022841

37242-268-010

Unavailable

20

GASKET, SPEEDOMETER (NOT AVAILABLE) | Use from Frame SN 0022842

37242-268-020

Unavailable

21

CABLE, TACHOMETER (NOT AVAILABLE)

37260-268-020

Unavailable

22

LAMP ASSY., PILOT (NOT AVAILABLE) | Use from Frame SN 0010001 to 0029881

37700-259-000

Unavailable

22

LAMP ASSY., PILOT (NOT AVAILABLE) | Use from Frame SN 0310001 to 0315446

37700-259-000

Unavailable

22

LAMP ASSY., PILOT (NOT AVAILABLE) | Use from Frame SN 0103257 to 0109800

37700-272-000

Unavailable

23

SUB-WIRE B, BEAM PILOT (NOT AVAILABLE)

37706-268-810

Unavailable

24

CASE, HEADLIGHT (NOT AVAILABLE) This part replaces 61300-268-810Z.

61301-268-670Z

Unavailable

24

CASE, HEADLIGHT | Use from Frame SN 0010001 to 0022841

61301-268-325Z

Unavailable

24

CASE, HEADLIGHT (NOT AVAILABLE)

61301-268-670Z

Unavailable

25

GROMMET, TACHOMETER CABLE (NOT AVAILABLE) | Use from Frame SN 0010001 to 0022841

61302-268-010

Unavailable

25

GROMMET A, HEADLIGHT CASE | Use from Frame SN 0010001 to 0022841

61302-268-020

Unavailable

25

GROMMET A, HEADLIGHT CASE | Use from Frame SN 0022842

61302-268-020

Unavailable

26

SPRING, SPEEDOMETER (NOT AVAILABLE)

61321-268-010

Unavailable

27

BRACKET, TAILLIGHT (NOT AVAILABLE)

84701-268-810Z

Unavailable

28

BOLT, LIGHT CASE SETTING (NOT AVAILABLE)

90154-268-000

Unavailable

29

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM)

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

30

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

30

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

30

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

31

SCREW, PAN (4X10) This part replaces 93500-04010.

93500-04010-0A

$1.49

31

SCREW, PAN (4X10)

93500-04010-0A

$1.49

31

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$1.49

32

SCREW, OVAL (3X60) This part replaces 93700-03060.

93700-03060-0A

$0.98

32

SCREW, OVAL (3X60)

93700-03060-0A

$0.98

32

SCREW, OVAL (3X60) This part replaces 93700-03060-0B.

93700-03060-0A

$0.98

32

SCREW, OVAL (3X60) This part replaces 93700-03060-02.

93700-03060-0A

$0.98

33

SCREW, OVAL (5X10) (SOURCE: VINTAGE PARTS INC.)

93700-05010-0B

Unavailable

33

SCREW, OVAL (5X10) (SOURCE: VINTAGE PARTS INC.) This part replaces 93700-05010-02.

93700-05010-0B

Unavailable

34

NUT, HEX. (3MM) (NOT AVAILABLE)

94001-03020

Unavailable

35

WASHER, PLAIN (10MM)

94101-10000

$1.49

36

WASHER, SPRING (3MM)

94111-03000

$1.49

37

WASHER, SPRING (6MM)

94111-06000

$1.49

38

WASHER, SPRING (8MM)

94111-10000

$1.49
