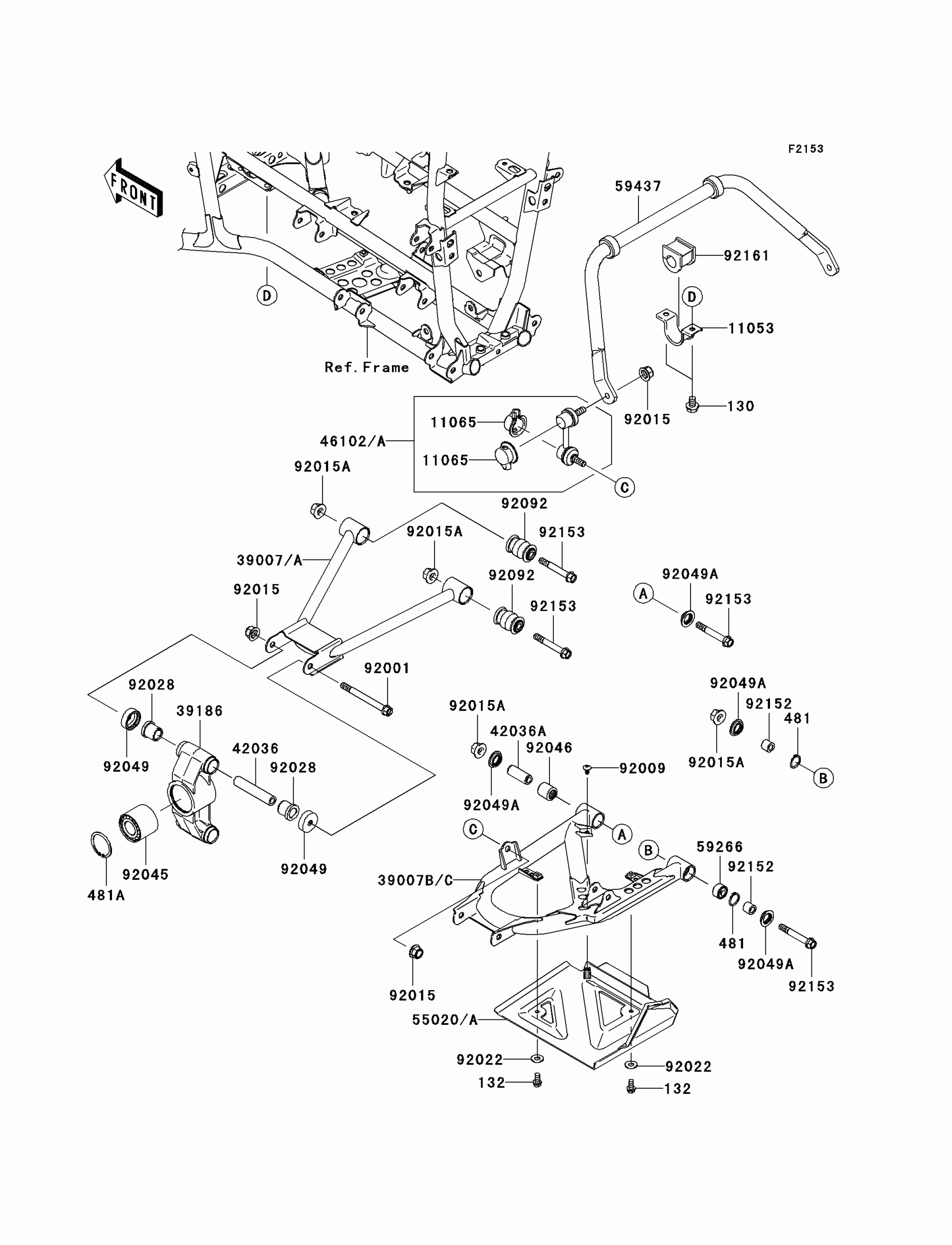

Kawasaki Brute Force 750 4x4i Hardwoods Green HD Rear Suspension Diagram

Description

Price

130

BOLT-FLANGED,8X12

130J0812

$0.67

132

BOLT-FLANGED-SMALL,6X12

132J0612

$1.92

481

CIRCLIP-TYPE-C,24MM

481J2400

$3.40

481A

CIRCLIP-TYPE-C,52MM

481J5200

$4.96

11053

BRACKET,STABILIZER

11053-1585

$4.12

11065

CAP

11065-0086

$10.71

39007

ARM-SUSP,RR,UPP,LH

39007-0021

$89.12

39007A

ARM-SUSP,RR,UPP,RH

39007-0022

$89.12

39007B

ARM-SUSP,RR,LWR,LH

39007-0038

$89.12

39007C

ARM-SUSP,RR,LWR,RH

39007-0039

$89.12

39186

KNUCKLE,RR

39186-0030

$227.71

42036

SLEEVE,10X17X85.6

42036-1190

$29.63

42036A

SLEEVE

42036-1376

$14.71

46102

ROD,STABILIZER,LH

46102-0055

Unavailable

46102A

ROD,STABILIZER,RH

46102-0056

Unavailable

55020

GUARD,REAR ARM,LH,F.BLACK

55020-0166-6Z

Unavailable

55020A

GUARD,REAR ARM,RH,F.BLACK

55020-0167-6Z

Unavailable

59266

JOINT-BALL

59266-1011

$65.53

59437

STABILIZER

59437-0001

$108.09

92001

BOLT,FLANGED,10X105,BLACK

92001-1751

$10.65

92009

SCREW,6X12

92009-1480

$3.21

92015

NUT,FLANGED,10MM

92015-1335

$2.61

92015A

NUT,FLANGED,10MM

92015-1415

$4.69

92022

WASHER PLAIN

92022-024

$3.65

92028

BUSHING

92028-1466

$10.28

92045

BEARING-BALL,25BWD02A

92045-0021

$93.13

92046

BEARING-NEEDLE

92046-1046

$27.88

92049

SEAL-OIL,KNUCKLE

92049-1198

$20.09

92049A

SEAL-OIL,MHA17245.7F

92049-1223

$8.86

92092

BUSHING-RUBBER

92092-0004

$8.28

92152

COLLAR,10X17X14.5

92152-1455

$9.07

92153

BOLT,FLANGED,10X70

92153-0666

$4.80

92161

DAMPER

92161-0265

$5.64
