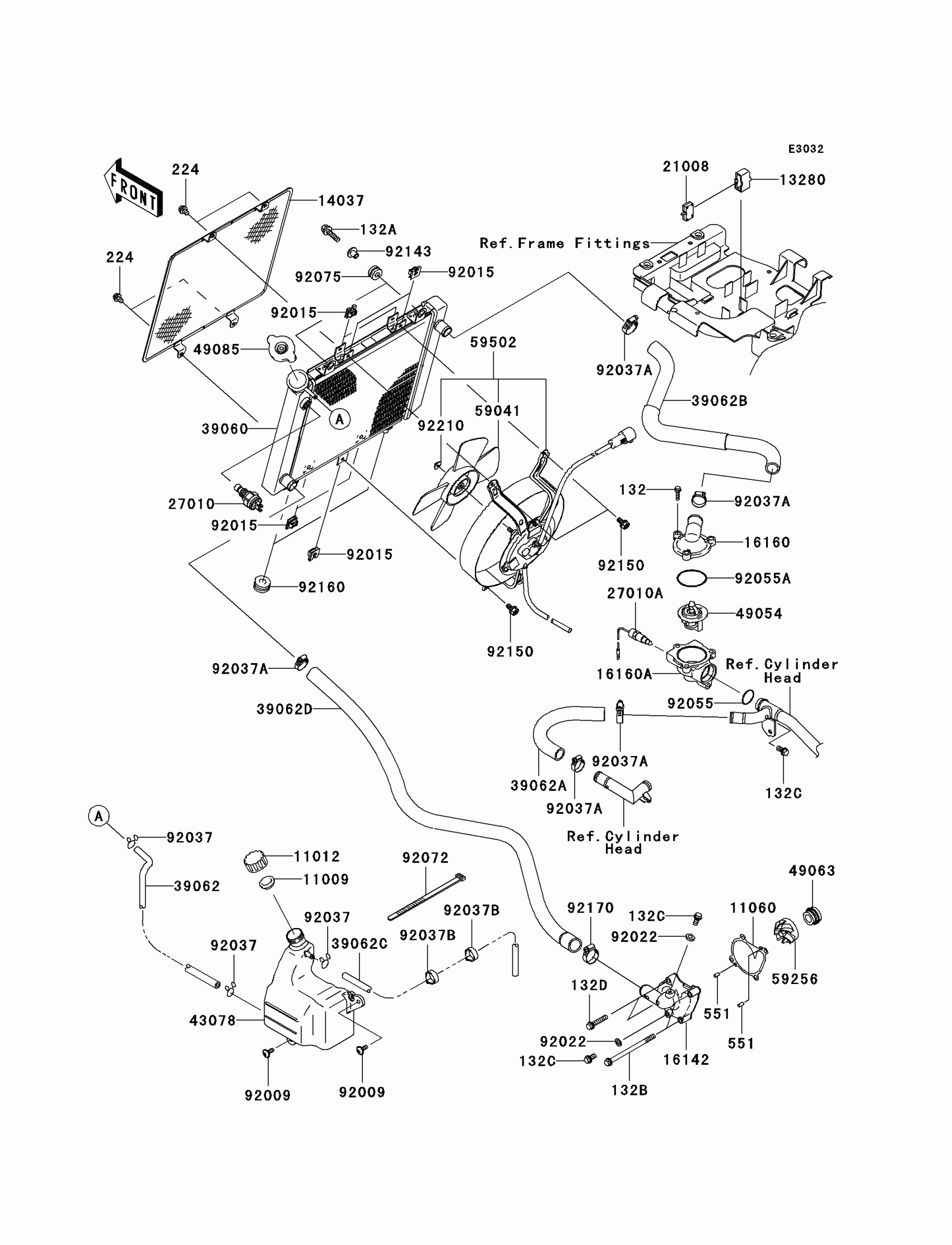

Kawasaki Brute Force 750 4x4i Hardwoods Green HD Radiator Diagram
#
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
11060
GASKET,WATER PUMP
11060-1964
$7.58
13280
HOLDER,BREAKER
13280-0082
$5.60
14037
SCREEN
14037-0045
$79.64
16142
COVER-PUMP,WATER
16142-0002
$83.83
16160
BODY,THERMOSTAT,UPP
16160-0046
$68.33
16160A
BODY,THERMOSTAT,LWR
16160-0067
$81.81
21008
BREAKER,FAN MOTOR
21008-0001
$26.03
27010
SWITCH,FAN
27010-1202
$98.81
27010A
SWITCH,SENSOR WATER
27010-1346
$120.07
39060
RADIATOR
39060-0016
$924.67
39062
HOSE-COOLING,5.5X10.5X1200
39062-0034
$10.01
39062A
HOSE-COOLING,FR HEAD-THERMO
39062-0035
Unavailable
39062B
HOSE-COOLING,THERMO-RADIATOR
39062-0036
Unavailable
39062C
HOSE-COOLING,5.5X10.5X890
39062-0056
$8.94
39062D
HOSE-COOLING,RAD-WATER PUMP
39062-0075
$38.93
43078
RESERVOIR
43078-0024
$54.40
49054
THERMOSTAT
49054-1055
$54.56
49063
SEAL-MECHANICAL
49063-1055
$20.06
49085
CAP-ASSY-PRESSURE
49085-1066
$37.42
59041
FAN
59041-0002
$48.32
59256
IMPELLER
59256-1069
$21.38
59502
FAN-ASSY
59502-0011
$605.57
92009
SCREW,6X16
92009-1694
$3.92
92015
NUT
92015-1487
$4.80
92022
WASHER,6.2X11X1
92022-304
$3.65
92037
CLAMP,TUBE
92037-147
$7.34
92037A
CLAMP,COOLING HOSE
92037-1589
$18.57
92037B
CLAMP,HOSE
92037-1827
$7.45
92055
RING-O,22.1X2.4
92055-1081
$4.69
92055A
RING-O,44.7X2.4
92055-1279
$7.34
92072
BAND,L=123
92072-030
$5.00
92075
DAMPER RUBBER,RR FENR
92075-209
$4.69
92143
COLLAR
92143-1353
$8.58
92150
BOLT,6X12
92150-1186
$3.37
92160
DAMPER
92160-1007
$5.52
92170
CLAMP
92170-1497
$16.83
92210
NUT
92210-0335
$4.13
132
BOLT-FLANGED-SMALL,6X20
132E0620
$4.44
132A
BOLT-FLANGED-SMALL,6X25
132H0625
Unavailable
132B
BOLT-FLANGED-SMALL,6X90
132J0690
$5.55
132C
BOLT-FLANGED-SMALL,6X12
132Y0612
$1.92
132D
BOLT-FLANGED-SMALL,6X30
132Y0630
$3.41
224
SCREW-PAN-WP-CROS,6X10
224C0610
$1.74
551
PIN-DOWEL,4X8
551A0408
$0.78
