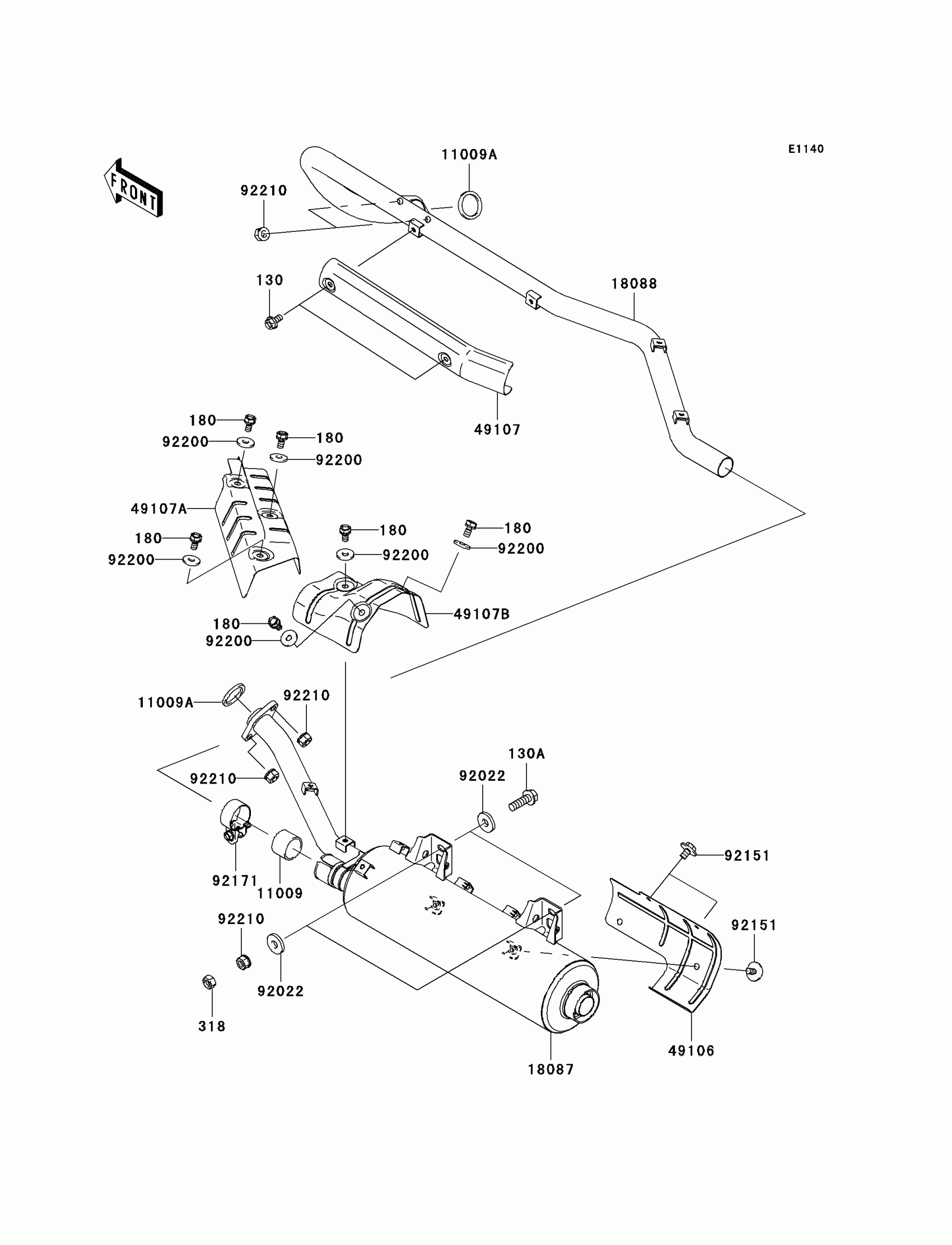

Kawasaki Brute Force 750 4x4i Hardwoods Green HD Muffler(s) Diagram

Description

Price

130

BOLT-FLANGED

130J0610

$2.33

130A

BOLT-FLANGED,8X25

130Z0825

$2.52

180

BOLT-UPSET-WS,6X12

180Y0612

$2.24

318

NUT-HEX-SMALL,8MM

318G0800

Unavailable

11009

GASKET,MUFFLER CONNECTING

11009-1865

Unavailable

11009A

GASKET,EXHAUST HOLDER

11009-1894

$8.03

18087

MUFFLER

18087-0066

$311.46

18088

PIPE-EXHAUST

18088-0146

Unavailable

49106

COVER-MUFFLER

49106-0011

Unavailable

49107

COVER-EXHAUST PIPE,FR

49107-0042

$29.36

49107A

COVER-EXHAUST PIPE,CNT

49107-0049

Unavailable

49107B

COVER-EXHAUST PIPE,RR

49107-0050

$9.08

92022

WASHER,8.5X22X3.2

92022-276

$9.97

92151

BOLT,UPSET-WP,6X12

92151-1944

$4.90

92171

CLAMP

92171-1330

$22.35

92200

WASHER,6.5X18X2.0

92200-2035

$0.43

92210

NUT,8MM

92210-1242

$2.41
