Description

Price

13168

LEVER

13168-1715

$8.58

13168A

LEVER,LH

13168-1736

$26.86

13271

PLATE,LOCK

13271-1259

$17.76

13271A

PLATE,LEVER LOCK

13271-1635

$14.02

13271B

PLATE,WIRE OUTER STOPPER

13271-1636

$4.18

13280

HOLDER,DIFF LOCK LEVER

13280-1226

$28.44

13280A

HOLDER,LEVER,LH

13280-1227

$28.44

13320

LEVER-ASSY,DIFF LOCK

13320-1018

$63.90

14091

COVER,DIFF LOCK LEVER

14091-1403

$18.20

27010

SWITCH,BRAKE

27010-1294

$35.18

27045

SWITCH-ASSY

27045-1081

$34.82

39074

LEVER-ASSY-THROTTLE

39074-1062

$183.68

39075

LEVER-THROTTLE

39075-1062

$28.70

43049

PACKING

43049-1088

$11.06

46003

HANDLE

46003-1580

$75.62

46012

HOLDER-HANDLE

46012-1168

$16.33

46075

GRIP,HANDLE

46075-7501

$19.78

46076

LEVER-ASSY-GRIP,DIFF LOCK

46076-1238

$103.23

46091

HOUSING-ASSY-CONTROL,LH

46091-1847

$209.09

46092

LEVER-GRIP,CHOKE

46092-1217

$5.47

59441

COVER-HANDLE,RR,F.BLACK

59441-0006-6Z

$22.64

59441A

COVER-HANDLE,FR,C.H.GREEN

59441-0015-826

$70.07

92009

SCREW,CABLE ADJUST,8MM

92009-1435

$16.33

92009A

SCREW,5X16,BLACK

92009-1654

$3.13

92009B

SCREW

92009-1959

$2.41

92009C

SCREW,6X30

92009-1961

$2.80

92015

NUT,CABLE ADJUST LOCK,8MM

92015-1596

$8.86

92015A

NUT,WELL,5MM

92015-1757

$7.29

92015B

NUT

92015-1829

$4.26

92022

WASHER,5MM

92022-1837

$3.35

92022A

WASHER,WAVE,5MM

92022-1838

$3.35

92028

BUSHING

92028-1986

$4.14

92049

SEAL-OIL

92049-1578

$4.67

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$4.65

92143

COLLAR

92143-1216

$6.34

92145

SPRING

92145-1392

$3.70

92145A

SPRING

92145-1429

$7.58

92150

BOLT

92150-1420

Unavailable

92151

BOLT,5X10

92151-1975

$2.41

92152

COLLAR

92152-1176

$4.31

130

BOLT-FLANGED,8X60

130P0860

$1.74

220

SCREW-PAN-CROS,5X25

220C0525

$3.52

220A

SCREW-PAN-CROS,5X35

220C0535

$2.06

220B

SCREW-PAN-CROS,6X25,B

220C0625

$3.41

220C

SCREW-PAN-CROSS

220D0308

$0.58

223

SCREW-PAN-WS-CROS,5X12

223C0512

$4.32

312

NUT-HEX,6MM,BLACK

312C0600

$3.57

92153

BOLT,5X20

92153-1129

$3.26

92160

DAMPER,4.5X11X20

92160-1074

$7.45

92171

CLAMP,BREATHER TUBE

92171-0378

$78.73

92171A

CLAMP,CLIP

92171-1095

$3.09

92171B

CLAMP

92171-1344

$2.41

92172

SCREW,5X20

92172-0078

$2.80

92200

WASHER

92200-1558

$5.00

92200A

WASHER

92200-1559

$5.00

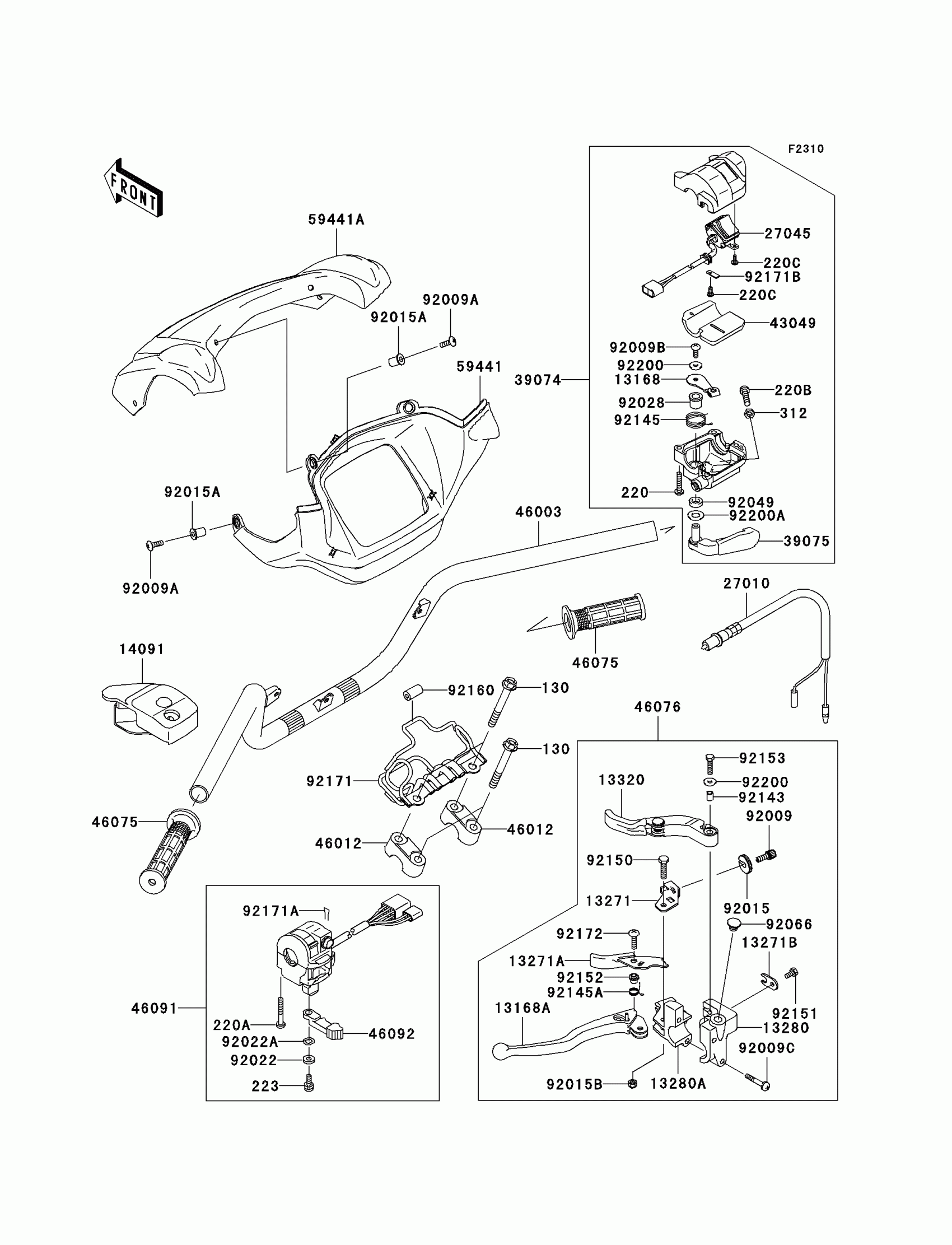

Kawasaki Brute Force 750 4x4i Hardwoods Green HD Handlebar Diagram

LEVER

LEVER,LH

PLATE,LOCK

PLATE,LEVER LOCK

PLATE,WIRE OUTER STOPPER

HOLDER,DIFF LOCK LEVER

HOLDER,LEVER,LH

LEVER-ASSY,DIFF LOCK

COVER,DIFF LOCK LEVER

SWITCH,BRAKE

SWITCH-ASSY

LEVER-ASSY-THROTTLE

LEVER-THROTTLE

PACKING

HANDLE

HOLDER-HANDLE

GRIP,HANDLE

LEVER-ASSY-GRIP,DIFF LOCK

HOUSING-ASSY-CONTROL,LH

LEVER-GRIP,CHOKE

COVER-HANDLE,RR,F.BLACK

COVER-HANDLE,FR,C.H.GREEN

SCREW,CABLE ADJUST,8MM

SCREW,5X16,BLACK

SCREW

SCREW,6X30

NUT,CABLE ADJUST LOCK,8MM

NUT,WELL,5MM

NUT

WASHER,5MM

WASHER,WAVE,5MM

BUSHING

SEAL-OIL

PLUG,9.5X8,POLYETHYLENE

COLLAR

SPRING

SPRING

BOLT

BOLT,5X10

COLLAR

BOLT-FLANGED,8X60

SCREW-PAN-CROS,5X25

SCREW-PAN-CROS,5X35

SCREW-PAN-CROS,6X25,B

SCREW-PAN-CROSS

SCREW-PAN-WS-CROS,5X12

NUT-HEX,6MM,BLACK

BOLT,5X20

DAMPER,4.5X11X20

CLAMP,BREATHER TUBE

CLAMP,CLIP

CLAMP

SCREW,5X20

WASHER

WASHER
