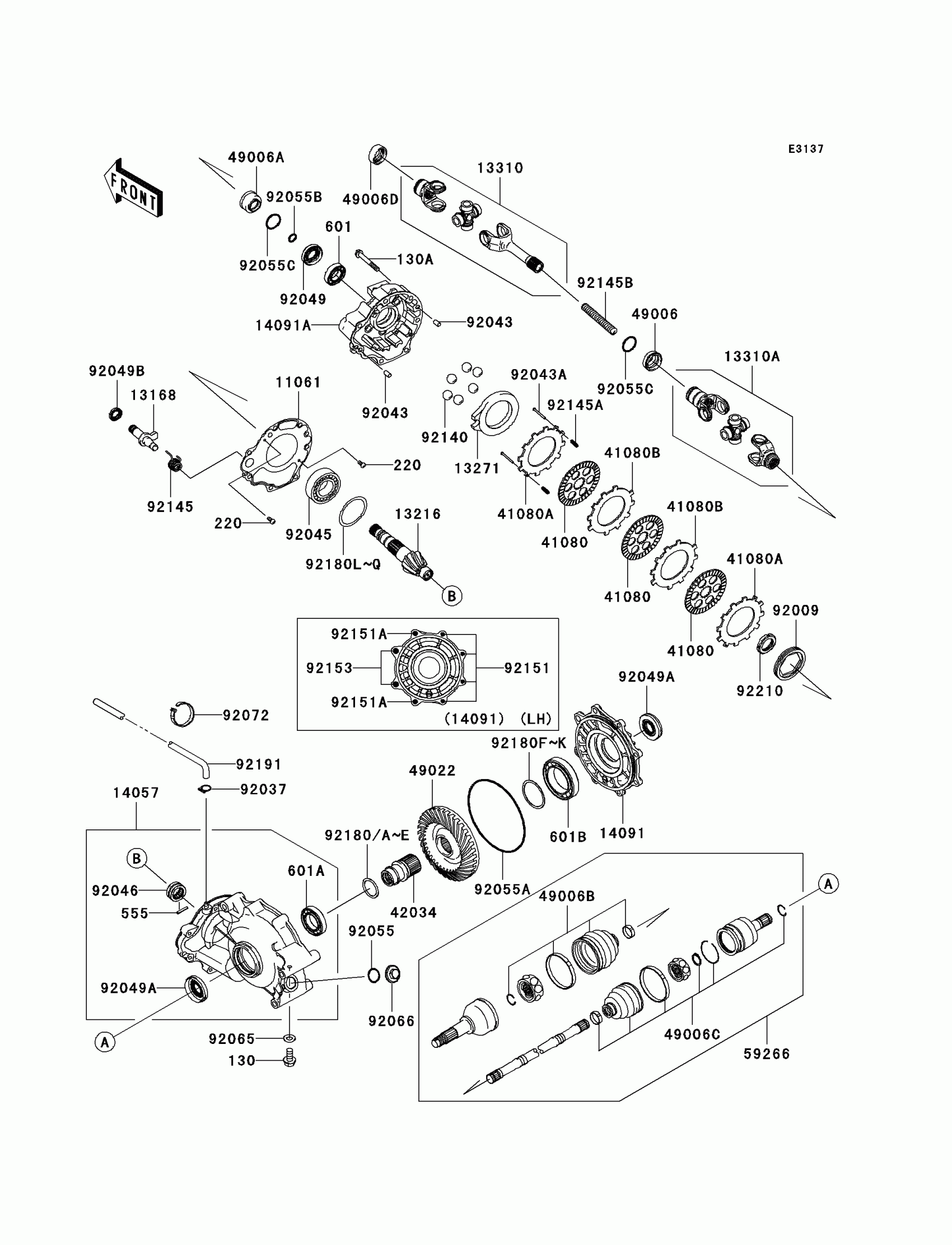

Kawasaki Brute Force 750 4x4i Hardwoods Green HD Drive Shaft-Rear Diagram
#
11061
GASKET,SOFT METAL
11061-0059
$29.32
13168
LEVER,BRAKE
13168-0042
$38.54
13216
GEAR-COMP
13216-0017
Unavailable
13271
PLATE,CAM
13271-0539
Unavailable
13310
SHAFT-ASSY,ENGINE SIDE
13310-0013
Unavailable
13310A
SHAFT-ASSY,GEAR-ASSY SIDE
13310-0014
$227.79
14057
CASE-COMP-GEAR
14057-0002
Unavailable
14091
COVER,RH
14091-0142
$69.22
14091A
COVER,FR
14091-0143
$111.61
41080
DISC,FRICTION
41080-1482
$49.80
41080A
DISC,PRESSURE
41080-1483
$18.80
41080B
DISC,SEPARATER
41080-1484
$18.80
42034
COUPLING
42034-0006
$78.98
49006
BOOT
49006-0007
$4.10
49006A
BOOT
49006-0008
$4.10
49006B
BOOT,BJ
49006-0018
$101.04
49006C
BOOT,DOJ
49006-0019
$101.04
49006D
BOOT
49006-0021
$17.92
49022
GEAR-BEVEL,35T
49022-0009
Unavailable
59266
JOINT-BALL
59266-0002
Unavailable
92009
SCREW-SET-SOCKET,75X10
92009-1667
$88.39
92037
CLAMP-HOSE
92037-1104
$1.45
92043
PIN,8X14
92043-1567
$2.26
92043A
PIN,3X35
92043-1617
$2.41
92045
BEARING-BALL,BX30-1C3 UR3
92045-0026
$51.38
92046
BEARING-NEEDLE,AH502504A
92046-1280
$63.69
92049
SEAL-OIL,HTGY 24X45X9.5
92049-0028
$11.95
92049A
SEAL-OIL,SDD7 25X57X7 HS
92049-0029
$11.95
92049B
SEAL-OIL,TC17X28X6
92049-1537
$11.81
92055
RING-O,25.7X2.4
92055-1136
$5.00
92055A
RING-O,158.5X3.70
92055-1631
$12.92
92055B
RING-O,18X24X3
92055-1633
$6.18
92055C
RING-O,30X35X2.5
92055-1693
$6.18
92065
GASKET,8.5X16X1
92065-023
$3.88
92066
PLUG
92066-1303
$12.96
92072
BAND,L=186
92072-056
$5.00
92140
BALL,D/O#12
92140-1064
$2.39
92145
SPRING
92145-0223
$5.33
130
BOLT-FLANGED,8X16
130G0816
$1.10
130A
BOLT-FLANGED,8X60
130Z0860
$3.76
220
SCREW PAN HEAD 4X8
220B0408
$0.67
555
PIN-SPRING
555A0428
$2.30
601
BEARING-BALL
601A6005
$13.82
601A
BEARING-BALL,#6007
601A6007
$32.21
601B
BEARING-BALL
601A6011
$43.66
92145A
SPRING,RR BRAKE
92145-1301
$1.84
92145B
SPRING,PROPELLER SHAFT
92145-1304
$3.23
92151
BOLT,8X30
92151-1908
$2.80
92151A
BOLT,10X35
92151-1909
$3.26
92153
BOLT,12X35
92153-0311
$4.18
92180
SHIM,35.2X44.0X1.2
92180-0161
Unavailable
92180A
SHIM,35.2X44.0X1.0
92180-0162
Unavailable
92180B
SHIM,35.2X44.0X0.8
92180-0163
Unavailable
92180C
SHIM,35.2X44.0X0.5
92180-0164
Unavailable
92180D
SHIM,35.2X44.0X0.2
92180-0165
Unavailable
92180E
SHIM,35.2X44.0X0.15
92180-0166
Unavailable
92180F
SHIM,55X64X0.15
92180-1417
Unavailable
92180G
SHIM,55X64X0.20
92180-1418
Unavailable
92180H
SHIM,55X64X0.50
92180-1419
Unavailable
92180I
SHIM,55X64X0.80
92180-1420
Unavailable
92180J
SHIM,55X64X1.00
92180-1421
Unavailable
92180K
SHIM,55X64X1.20
92180-1422
Unavailable
92180L
SHIM,60X72X0.15
92180-1423
Unavailable
92180M
SHIM,60X72X0.20
92180-1424
Unavailable
92180N
SHIM,60X72X0.50
92180-1425
Unavailable
92180O
SHIM,60X72X0.80
92180-1426
Unavailable
92180P
SHIM,60X72X1.00
92180-1427
Unavailable
92180Q
SHIM,60X72X1.20
92180-1428
Unavailable
92191
TUBE,BREATHER
92191-1595
$18.52
92210
NUT,30MM
92210-1294
$40.82
