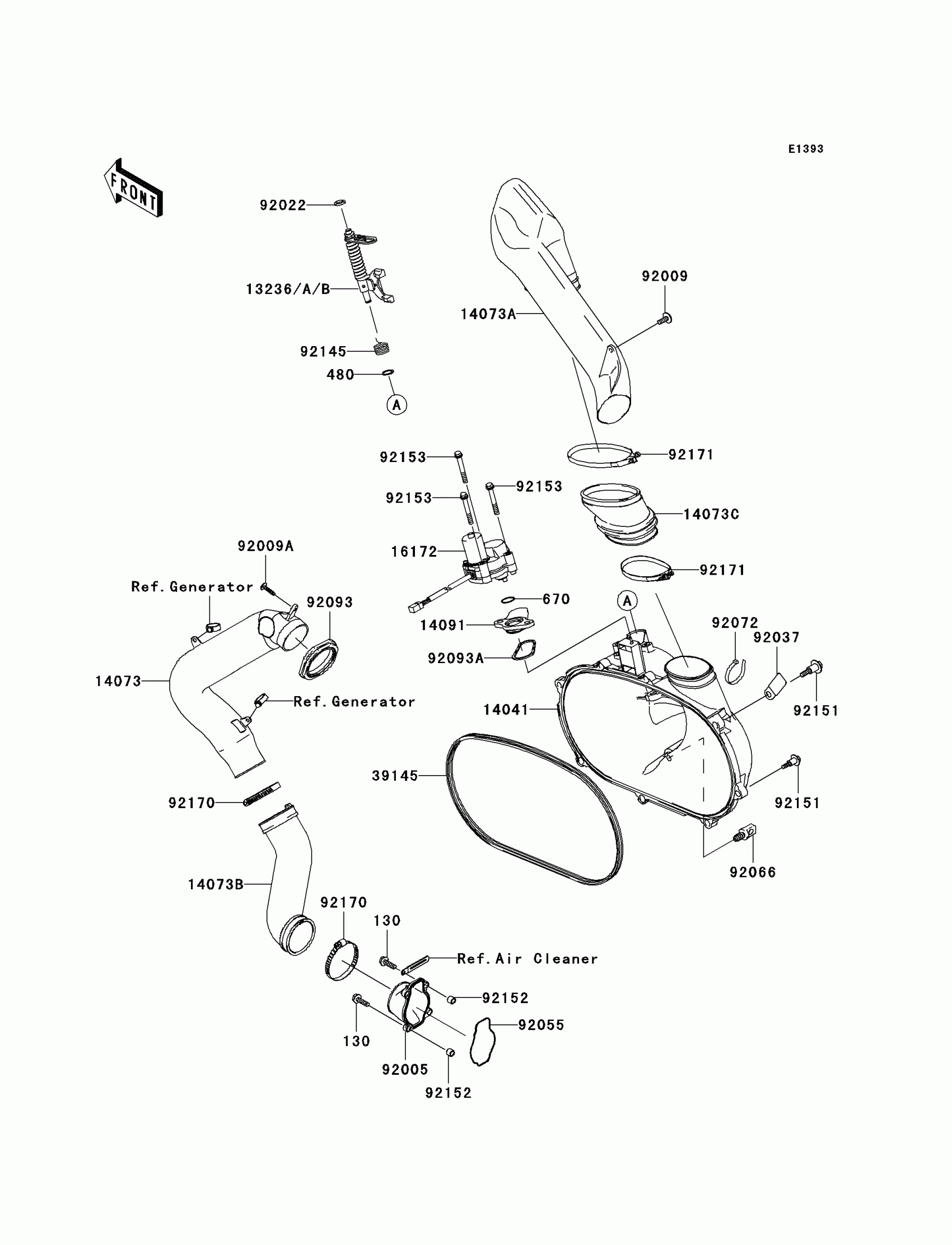

Kawasaki Brute Force 750 4x4i Hardwoods Green HD Converter Cover Diagram
#
Description
Price
130
BOLT-FLANGED
130Z0620
$1.63
480
CIRCLIP-TYPE-C,10MM
480J1000
$0.65
670
O RING
670D3022
$2.80
13236
LEVER-COMP,YELLOW
13236-0046
Unavailable
13236A
LEVER-COMP,GREEN
13236-0047
Unavailable
13236B
LEVER-COMP,PAINT LESS
13236-0048
$131.68
14041
COVER-COMP
14041-0004
$217.24
14073
DUCT,INTAKE
14073-0025
$23.44
14073A
DUCT,EXHAUST
14073-0026
$30.63
14073B
DUCT,INTAKE JOINT
14073-0027
$22.31
14073C
DUCT,EXHAUST JOINT
14073-0028
$16.47
14091
COVER
14091-1421
Unavailable
16172
ACTUATOR
16172-0006
Unavailable
39145
TRIM-SEAL
39145-1135
Unavailable
92005
FITTING
92005-1387
$8.10
92009
SCREW,6X16
92009-1694
$3.92
92009A
SCREW,TAPPING,5X20
92009-1993
$1.03
92022
WASHER,10.2X16X1
92022-1829
$4.31
92037
CLAMP
92037-1780
$6.57
92055
RING-O
92055-1630
$10.49
92066
PLUG,DRAIN,11X19
92066-1580
$6.28
92072
BAND,L=188
92072-1239
$1.73
92093
SEAL
92093-0016
$7.59
92093A
SEAL
92093-1548
$10.06
92145
SPRING
92145-1567
$2.78
92151
BOLT,FLANGED,6X30
92151-1686
$9.43
92152
COLLAR
92152-1332
$4.18
92153
BOLT,6X47
92153-0678
$3.07
92170
CLAMP
92170-1764
$11.48
92171
CLAMP
92171-0208
Unavailable
