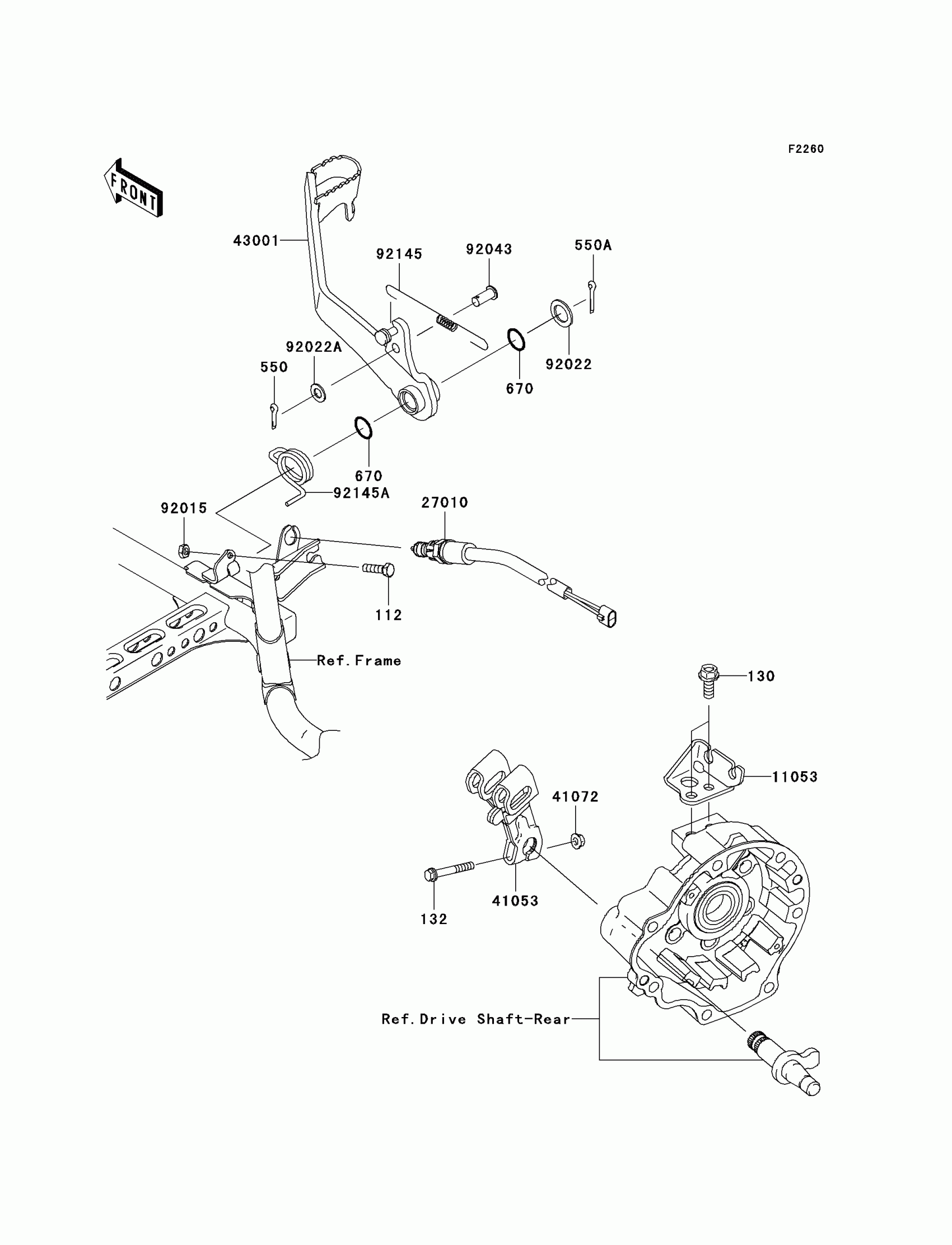

Kawasaki Brute Force 750 4x4i Hardwoods Green HD Brake Pedal Diagram

Description

Price

112

BOLT-UPSET,6X22

112D0622

$4.30

130

BOLT-FLANGED,8X20

130J0820

$0.83

132

BOLT-FLANGED-SMALL,6X40

132G0640

$4.15

550

PIN COTTER 2.0X15

550D2015

$1.04

550A

PIN-COTTER,2.0X22

550D2022

$2.51

670

O RING,15MM

670B2015

$1.42

11053

BRACKET,BRAKE CABLE

11053-0642

$6.35

27010

SWITCH,BRAKE

27010-1494

$50.49

41053

LEVER-BRAKE CAM

41053-0003

$56.70

41072

NUT,6MM

41072-007

$3.92

43001

LEVER-BRAKE,PEDAL

43001-0036

$64.10

92015

NUT,6MM

92015-1410

$3.92

92022

WASHER,15.5X24X1.6

92022-1049

$6.57

92022A

WASHER,8.5X16X1.2

92022-1582

$0.96

92043

PIN,8X16

92043-1013

$9.91

92145

SPRING,REAR BRAKE SWITCH

92145-0144

$3.87

92145A

SPRING,BRAKE PEDAL RETURN

92145-1421

$5.43
