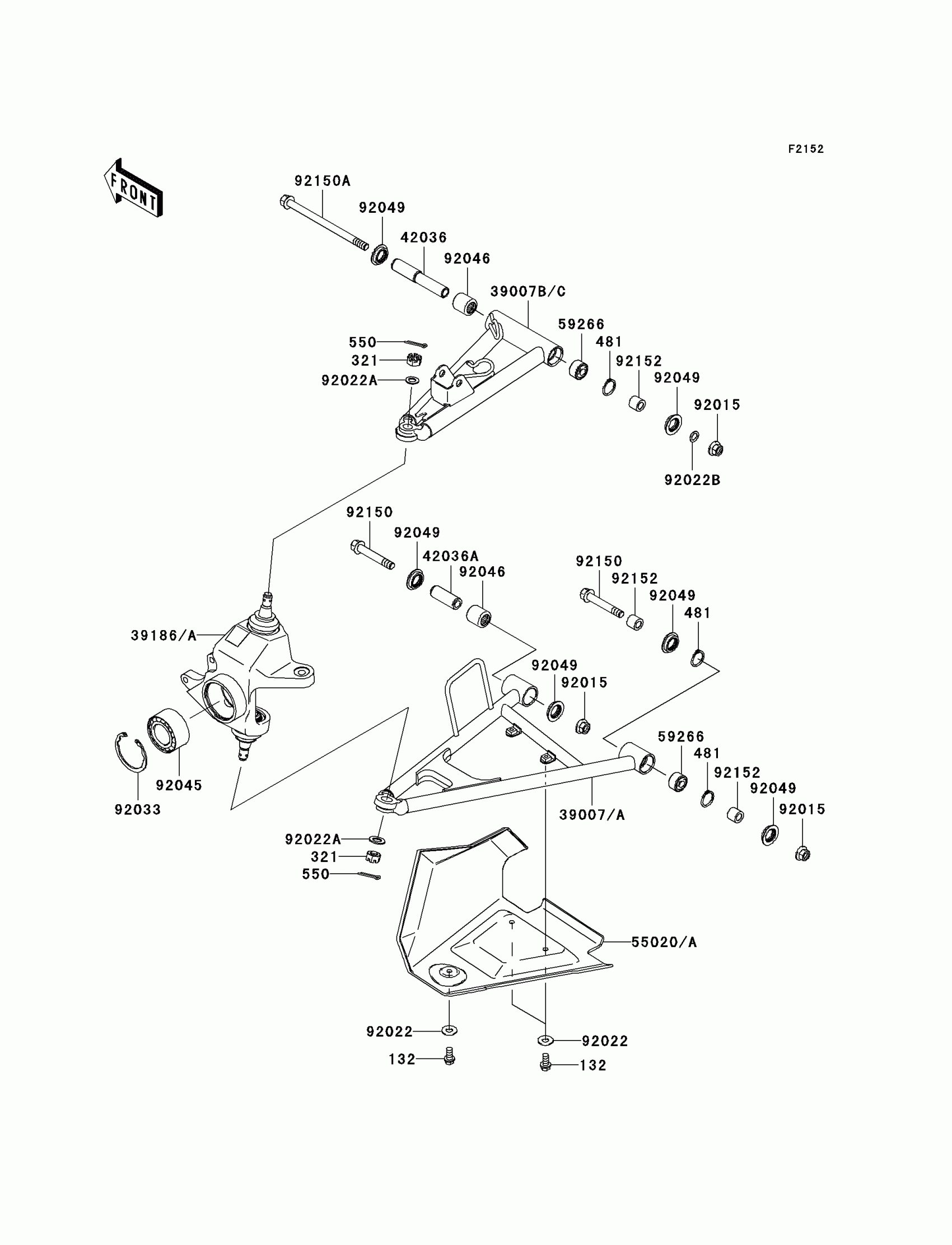

Kawasaki Brute Force 750 4x4i Front Suspension(-JKAVFDA1 6B524414) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132J0612

$1.92

321

NUT-CASTLE,12MM

321H1200

$6.61

481

CIRCLIP-TYPE-C,24MM

481J2400

$3.40

550

PIN-COTTER,3.0X25

550D3025

$0.58

39007

ARM-SUSP,FR,LWR,LH

39007-0040

$93.37

39007A

ARM-SUSP,FR,LWR,RH

39007-0041

$93.37

39007B

ARM-SUSP,FR,UPP,LH

39007-7507

$93.37

39007C

ARM-SUSP,FR,UPP,RH

39007-7508

$93.37

39186

KNUCKLE ASSY,FR,LH

39186-0033

$296.64

39186A

KNUCKLE ASSY,FR,RH

39186-0034

$296.64

42036

SLEEVE,SUSPENSION ARM

42036-0016

$28.82

42036A

SLEEVE

42036-1376

$14.71

55020

GUARD,FRONT ARM,LH,F.BLACK

55020-0109-6Z

$33.78

55020A

GUARD,FRONT ARM,RH,F.BLACK

55020-0110-6Z

$33.78

59266

JOINT-BALL

59266-0013

$65.53

92015

NUT,FLANGED,10MM

92015-1415

$4.69

92022

WASHER PLAIN

92022-024

$3.65

92022A

WASHER,12.3X22X1.6

92022-1065

$3.96

92022B

WASHER,10.2X16X1

92022-1829

Unavailable

92033

RING-SNAP,55MM

92033-1274

$9.43

92045

BEARING-BALL,30BWD08A

92045-1448

$93.57

92046

BEARING-NEEDLE

92046-1046

$27.88

92049

SEAL-OIL,MHA17245.7F

92049-1223

$8.86

92150

BOLT,FLANGED,10X63

92150-1384

$13.75

92150A

BOLT,FLANGED,10X150

92150-1686

$16.01

92152

COLLAR,10X17X14.5

92152-1455

$9.07
