Description

Price

11012

CAP

11012-1263

$16.53

11012A

CAP,CHAIN ADJUSTER

11012-1601

$20.99

12053

GUIDE-CHAIN,RR,LH

12053-1203

$81.86

12053A

GUIDE-CHAIN,RR,RH

12053-1204

$81.86

12053B

GUIDE-CHAIN,FR,UPP

12053-1237

Unavailable

12053C

GUIDE-CHAIN,FR,LWR

12053-1256

Unavailable

33001A

ARM-COMP-SWING,SILVER NO.25

33001-1322-CE

$488.79

33032A

SHAFT-SWING ARM

33032-1154

Unavailable

33040

ADJUSTER-CHAIN,OUTSIDE

33040-1066

Unavailable

33040A

ADJUSTER-CHAIN,INSIDE

33040-1081

$40.52

42036

SLEEVE,SWING ARM,L=34

42036-1067

$10.65

55020

GUARD,CALIPER

55020-1247

Unavailable

92009

SCREW,6X14,WHITE

92009-1287

$2.55

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,LOCK,12MM

92015-1774

$7.71

92046

BEARING-NEEDLE

92046-1046

$27.88

132

BOLT-FLANGED-SMALL,6X40

132G0640

$4.15

132A

BOLT-FLANGED-SMALL,6X45

132G0645

$4.15

221

SCREW-CSK-CROS,6X10

221B0610

$3.67

312

NUT 6MM

312B0600

$0.72

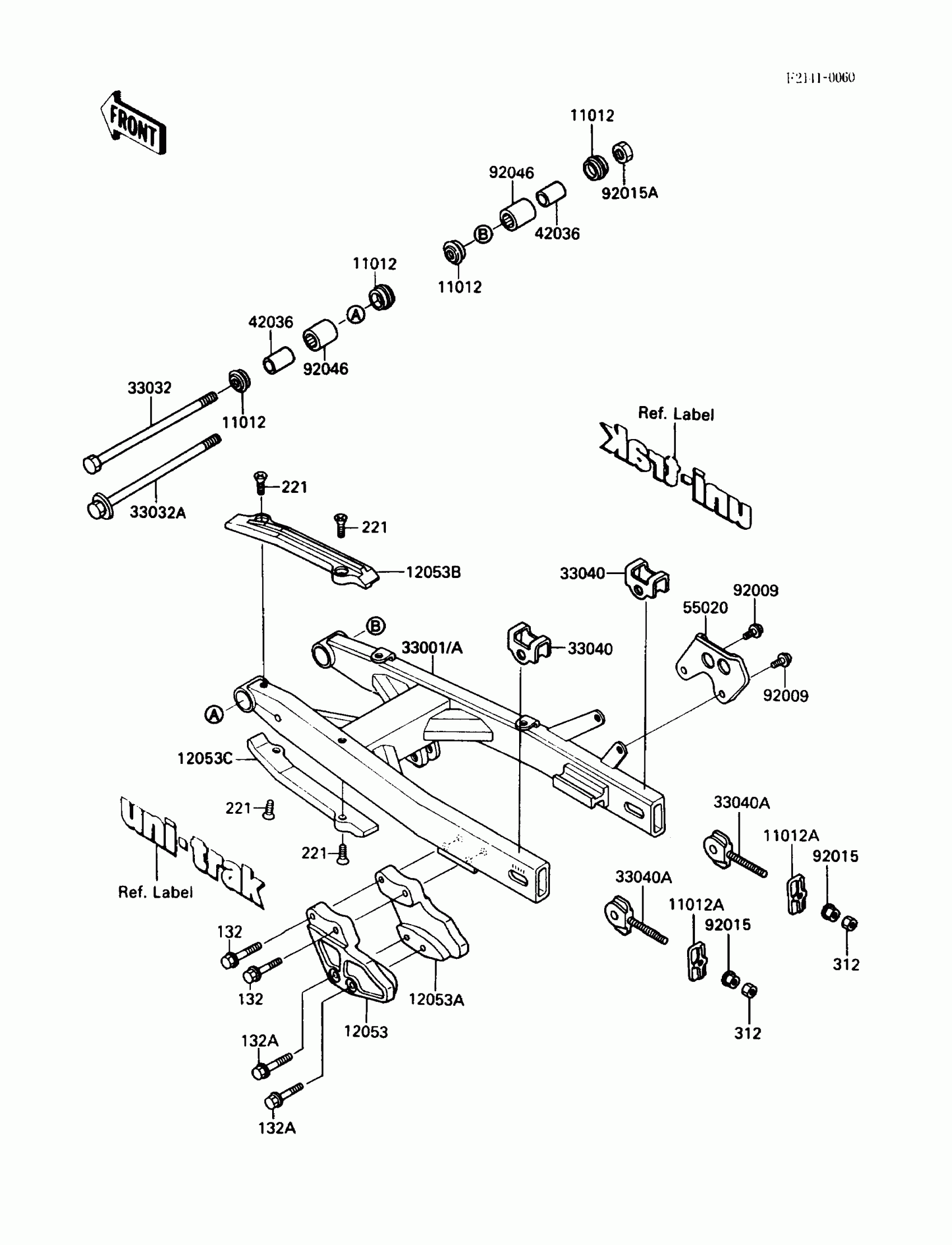

Kawasaki Big Wheel Swingarm Diagram

CAP

CAP,CHAIN ADJUSTER

GUIDE-CHAIN,RR,LH

GUIDE-CHAIN,RR,RH

GUIDE-CHAIN,FR,UPP

GUIDE-CHAIN,FR,LWR

ARM-COMP-SWING,SILVER NO.25

SHAFT-SWING ARM

ADJUSTER-CHAIN,OUTSIDE

ADJUSTER-CHAIN,INSIDE

SLEEVE,SWING ARM,L=34

GUARD,CALIPER

SCREW,6X14,WHITE

NUT,FLANGED,6MM

NUT,LOCK,12MM

BEARING-NEEDLE

BOLT-FLANGED-SMALL,6X40

BOLT-FLANGED-SMALL,6X45

SCREW-CSK-CROS,6X10

NUT 6MM
