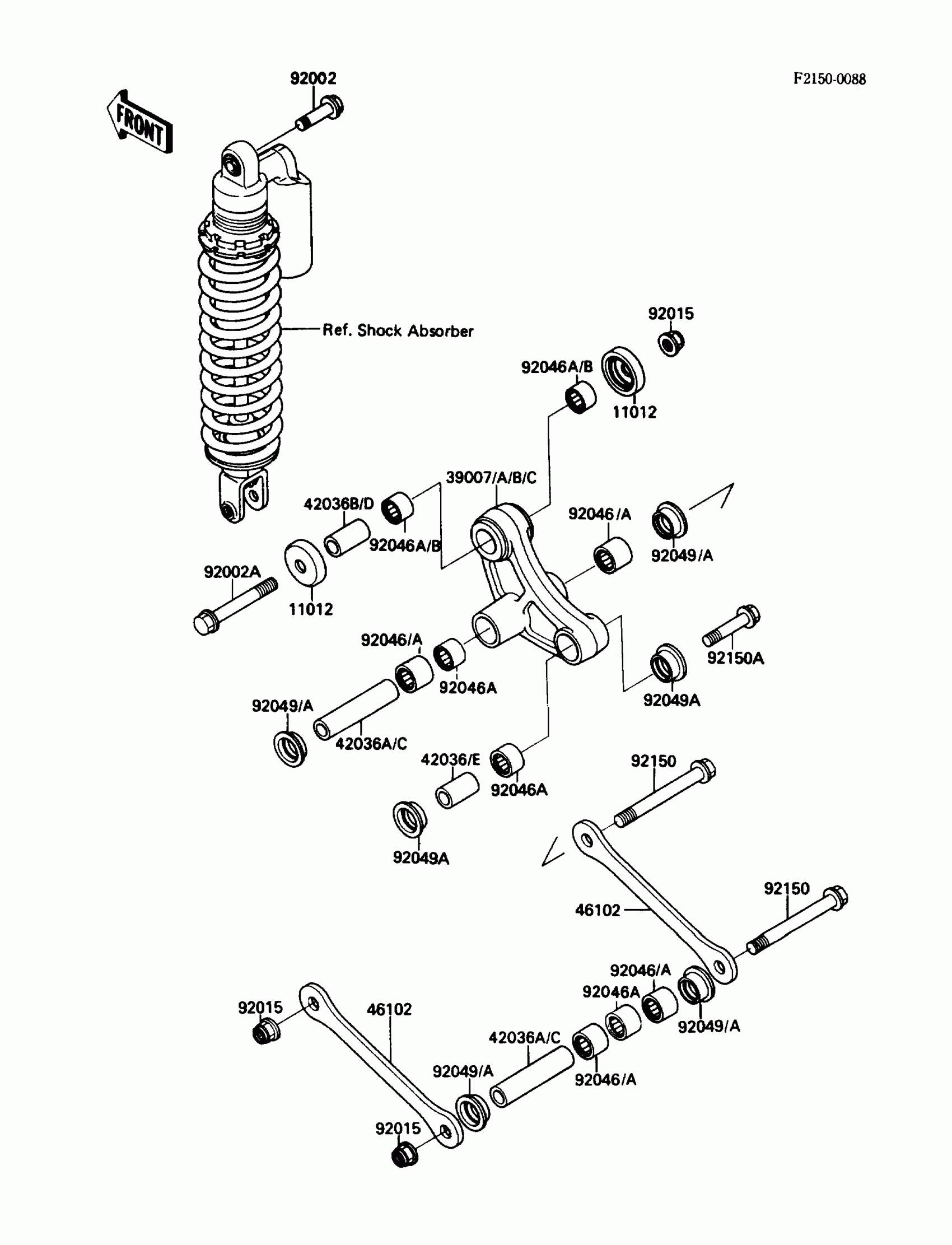

Kawasaki Big Wheel Rear Suspension Diagram

Description

Price

11012

CAP,SUSPENSION ARM

11012-1666

Unavailable

39007C

ARM-SUSP,UNI TRAK

39007-1178

$243.31

42036C

SLEEVE,12X18X74

42036-1256

$25.28

42036D

SLEEVE,12X18X36

42036-1257

$25.28

42036E

SLEEVE,10.1X18X30

42036-1258

$12.35

46102

ROD,SUSPENSION

46102-1251

$18.77

92002

BOLT,10X40

92002-1675

$12.35

92002A

BOLT,FLANGED,12X67

92002-1861

$11.16

92015

NUT,LOCK,12MM

92015-1617

$8.98

92046A

BEARING-NEEDLE,18BM2416

92046-1144

$29.26

92049A

SEAL-OIL

92049-1328

$27.27

92150

BOLT,FLANGED,12X104

92150-1169

Unavailable

92150A

BOLT,FLANGED,10X49

92150-1170

$8.43
