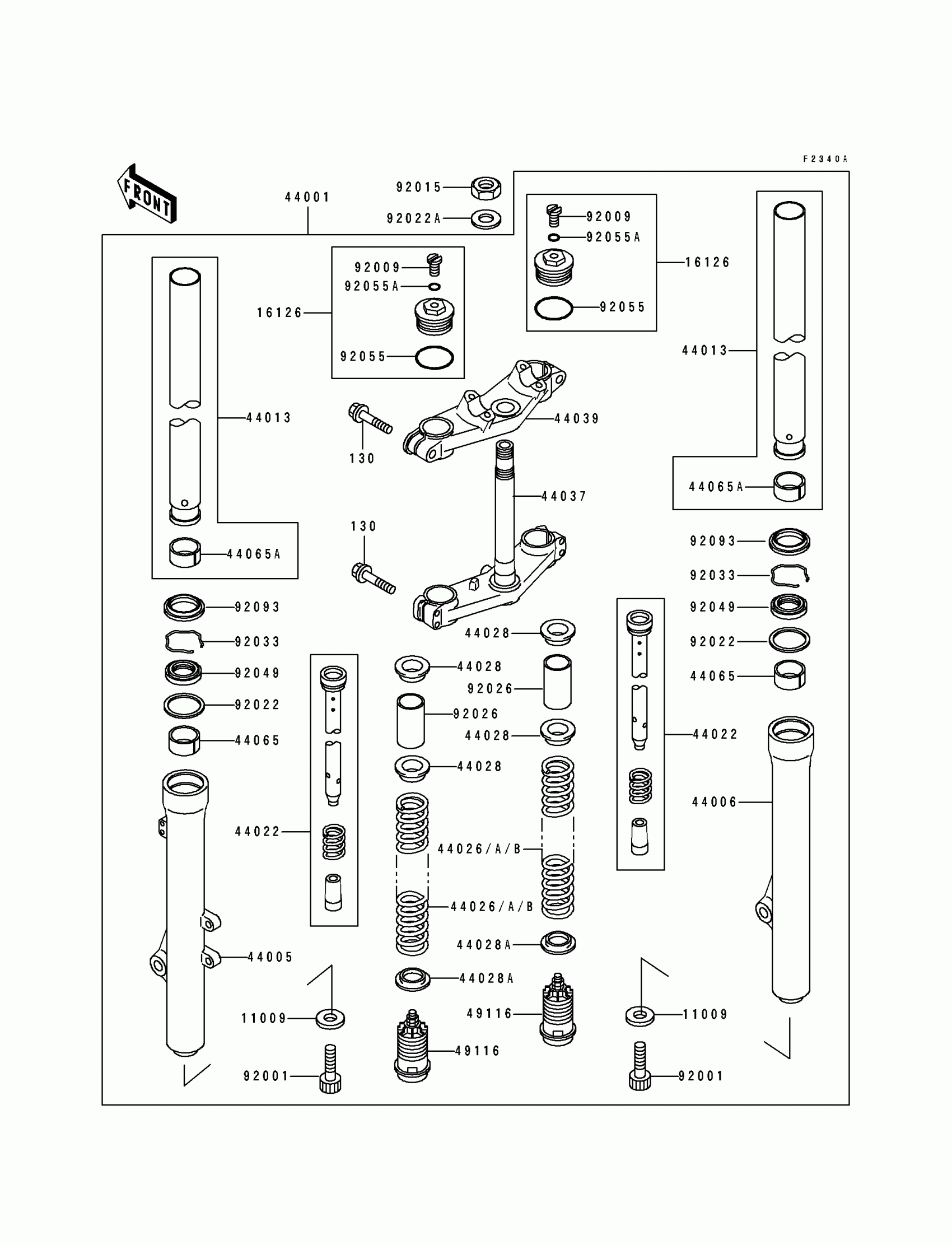

Kawasaki Big Wheel Front Fork(KX80-T1) Diagram
#
Description
Price
11009
GASKET
44045-057
$4.86
16126
VALVE,AIR
16126-1230
$57.76
44001
FORK-FRONT
44001-1778
$767.95
44005
PIPE-LEFT FORK OUTER
44005-1302
$278.57
44006
PIPE-RIGHT FORK OUTER
44006-1298
$195.81
44013
PIPE-FORK INNER
44013-1338
$304.73
44022
CYLINDER-FORK
44022-1257
$103.49
44026
SPRING-FRONT FORK,K=0.29
44026-1480
$49.91
44026A
SPRING-FRONT FORK,K=0.28
44026-1484
$29.46
44026B
SPRING-FRONT FORK,K=0.30
44026-1485
$49.91
44028
GUIDE-FORK SPRING
44028-1004
$11.28
44028A
GUIDE-FORK SPRING
44028-1068
Unavailable
44037
HOLDER-FORK UNDER
44037-1225
$189.60
44039
HOLDER-FORK UPPER
44039-1183
Unavailable
44065
BUSHING-FRONT FORK
44065-1097
Unavailable
44065A
BUSHING-FRONT FORK,INNER PIPE
44065-1098
Unavailable
49116
VALVE-ASSY,FORK
49116-1091
$132.04
92001
BOLT,SOCKET,FORK CYLINDER
44041-040
$6.57
92009
SCREW
92009-1568
$7.21
92015
NUT,STEERING STEM,22MM
92015-1653
$16.69
92022
WASHER,FORK
92022-1801
$8.35
92022A
WASHER,STEERING STEM
92022-1873
$7.45
92026
SPACER,FORK SPRING
92026-1402
$10.39
92033
RING-SNAP
44044-015
$14.94
92049
SEAL-OIL,FORK
92049-1350
$25.92
92055
RING-O
92055-1318
$5.11
92055A
RING-O,2.8X6.6X1.9
92055-1441
$4.33
92093
SEAL,FORK OUTER TUBE
92093-1304
Unavailable
130
BOLT-FLANGED,8X35
130G0835
$1.42
