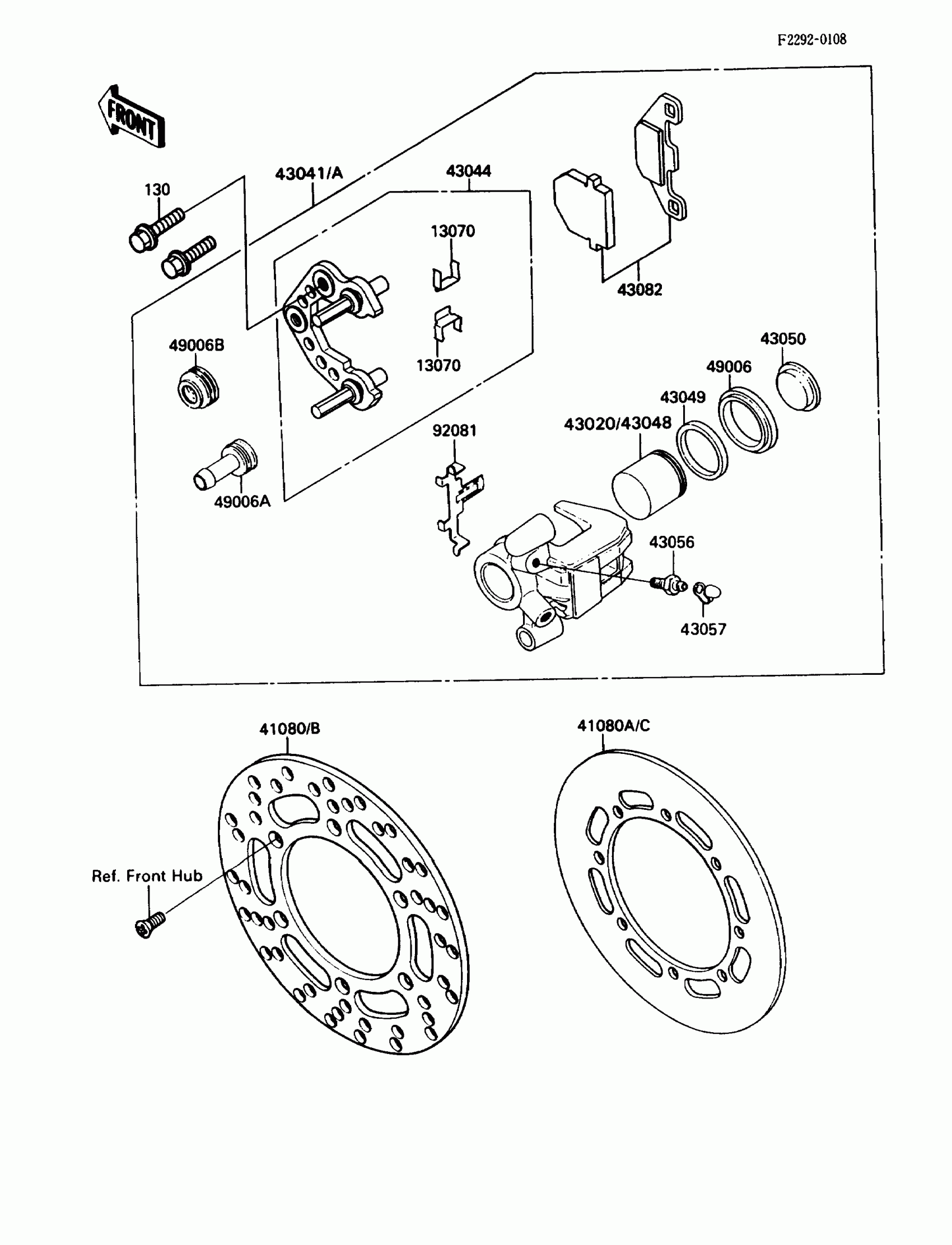

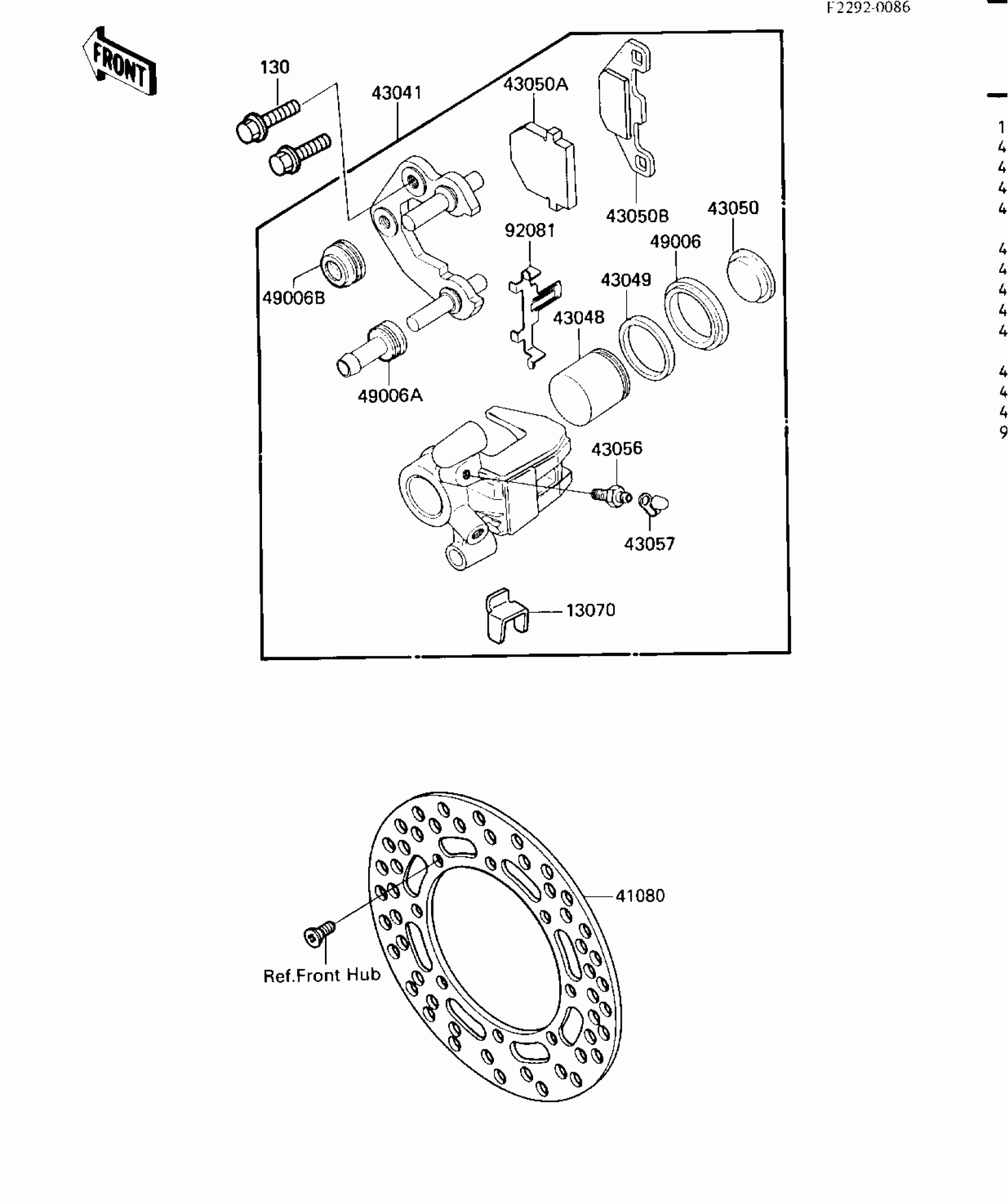

Kawasaki Big Wheel Front Brake Diagram

Description

Price

13070

GUIDE,PAD STOPPER

13070-1183

Unavailable

41080B

DISC,FR

41080-1270

$275.70

41080C

DISC,FR

41080-1271

$192.30

43020

PISTON-COMP-BRAKE

43020-1091

$61.19

43041A

CALIPER-ASSY,FR

43041-1336

$220.87

43044

HOLDER-COMP-CALIPER,FR

43044-1051

$121.40

43049

PACKING

43049-1016

$10.39

43056

BREATHER

43056-003

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1083

Unavailable

49006

BOOT,PISTON SEAL

49006-1053

$21.93

49006A

BOOT,CALIPER

49006-1054

$11.61

49006B

BOOT,CALIPER

49006-1055

$7.27

92081

SPRING,PAD

92081-1341

$14.76

130

BOLT-FLANGED

130P0840

$1.44
