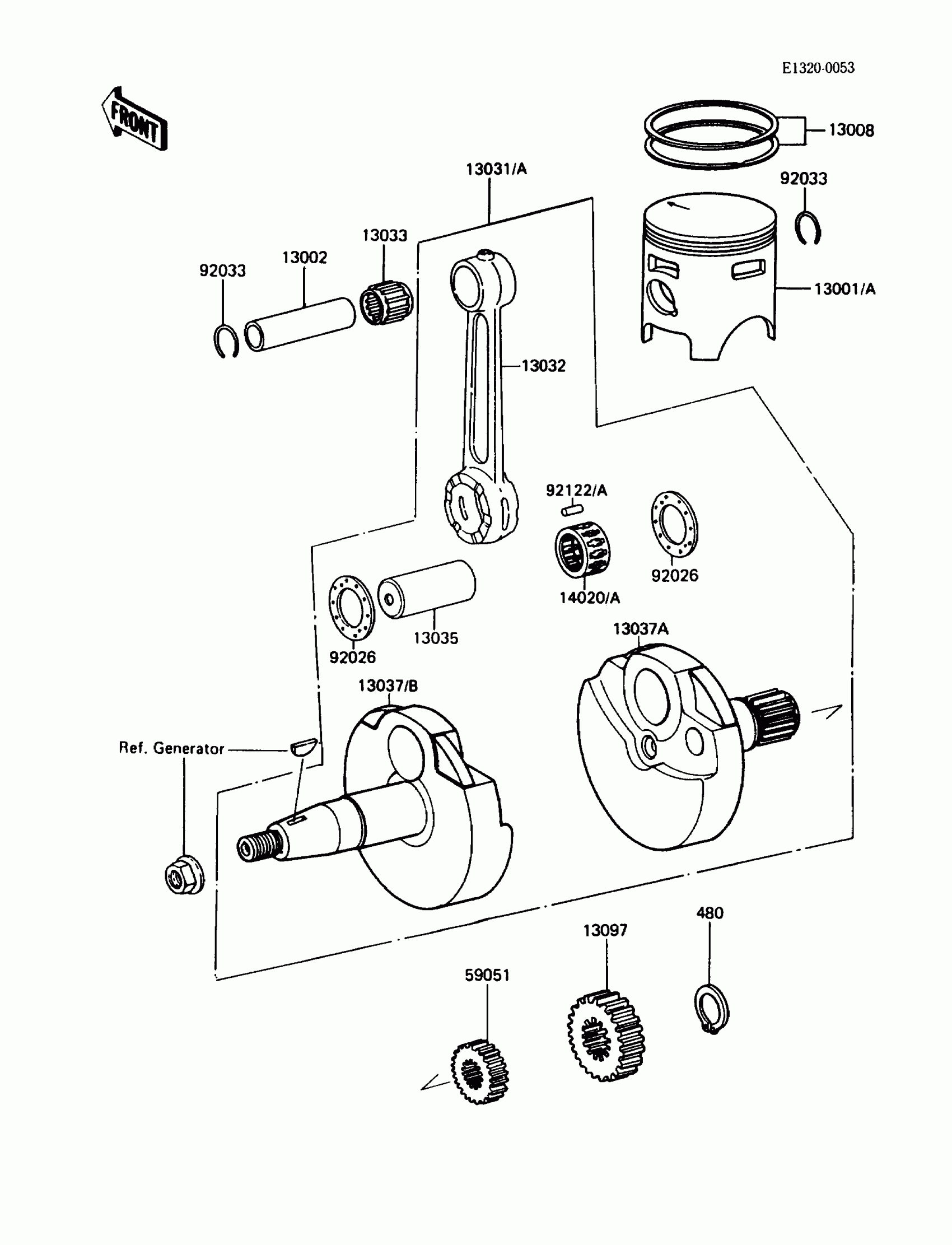

Kawasaki Big Wheel Crankshaft/Piston(s) Diagram

Description

Price

13001A

PISTON-ENGINE,(B)

13001-1306

$129.33

13002

PIN-PISTON

13002-1079

$16.15

13008

RING-SET-PISTON

13008-1100

$43.86

13031A

CRANKSHAFT-COMP

13031-1299

Unavailable

13032

ROD-CONNECTING

13032-1039

$92.01

13033

BEARING-SMALL END,14R1818AP-1

13033-1053

Unavailable

13035

PIN-CRANK

13035-1054-01

$42.08

13037A

CRANKSHAFT,RH

13037-1357

Unavailable

13037B

CRANKSHAFT,LH

13037-1380

Unavailable

13097

GEAR-PRIMARY SPUR,20T

13097-1148

$78.57

14020A

RETAINER

14020-1076

$66.61

59051

GEAR-SPUR,PUMP,23T

59051-1146

$30.38

92026

SPACER,22.5X37X1.0

92026-011

$9.89

92033

RING-SNAP

92033-1050

$2.78

92122A

ROLLER

92122-1177

$3.93

480

CIRCLIP-TYPE-C,16MM

480J1600

$4.31
