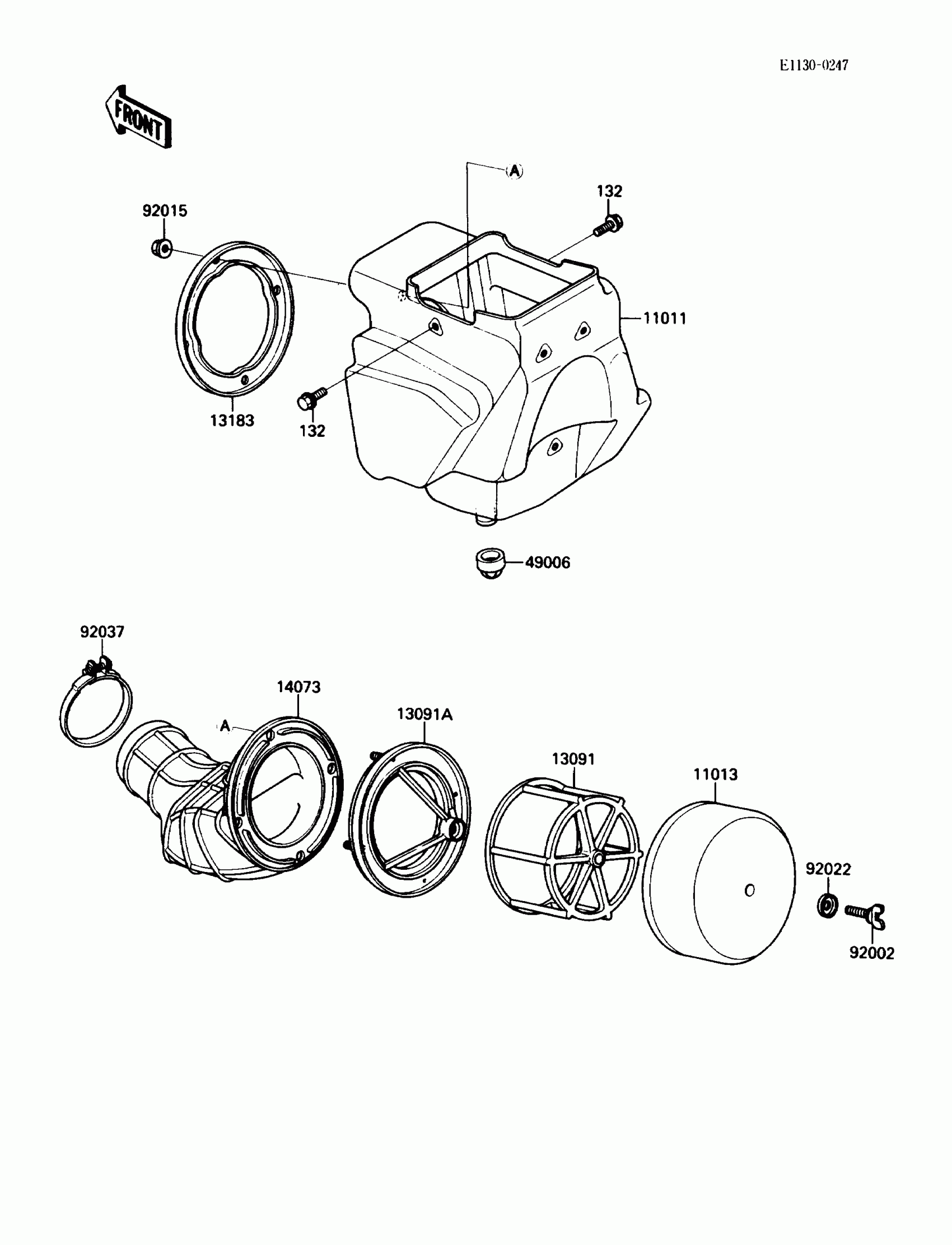

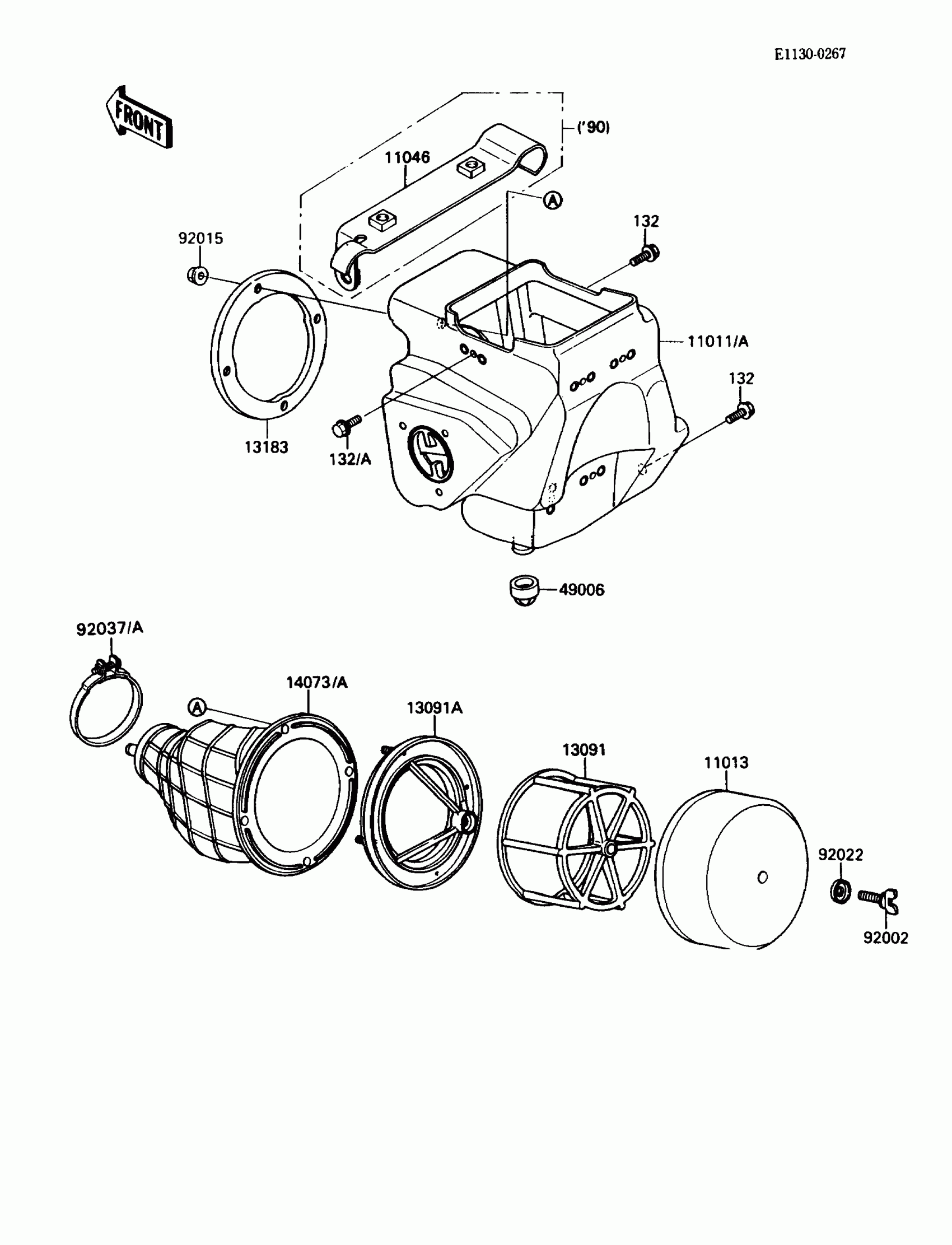

Kawasaki Big Wheel Air Cleaner Diagram

Description

Price

11011A

CASE-AIR FILTER

11011-1321

Unavailable

11013

ELEMENT-AIR FILTER

11013-1129

Unavailable

11046

BRACKET,IGNITER

11046-1876

Unavailable

13091

HOLDER,ELEMENT

13091-1393

Unavailable

13091A

HOLDER,ELEMENT

13091-1519

Unavailable

13183

PLATE,AIR FILTER DUCT

13183-1237

Unavailable

14073A

DUCT,AIR FILTER

14073-1418

$46.31

49006

BOOT,AIR FILTER

49006-1156

$9.39

92002

BOLT,WING

92002-1599

$6.45

92015

NUT,FLANGED,5MM

92015-1259

$3.92

92022

WASHER,PLAIN,6MM

92022-284

Unavailable

92037

CLAMP,55MM

92037-1486

$8.66

132

BOLT-FLANGED-SMALL

132G0614

$1.42

132A

BOLT-FLANGED-SMALL

132G0620

$2.33
