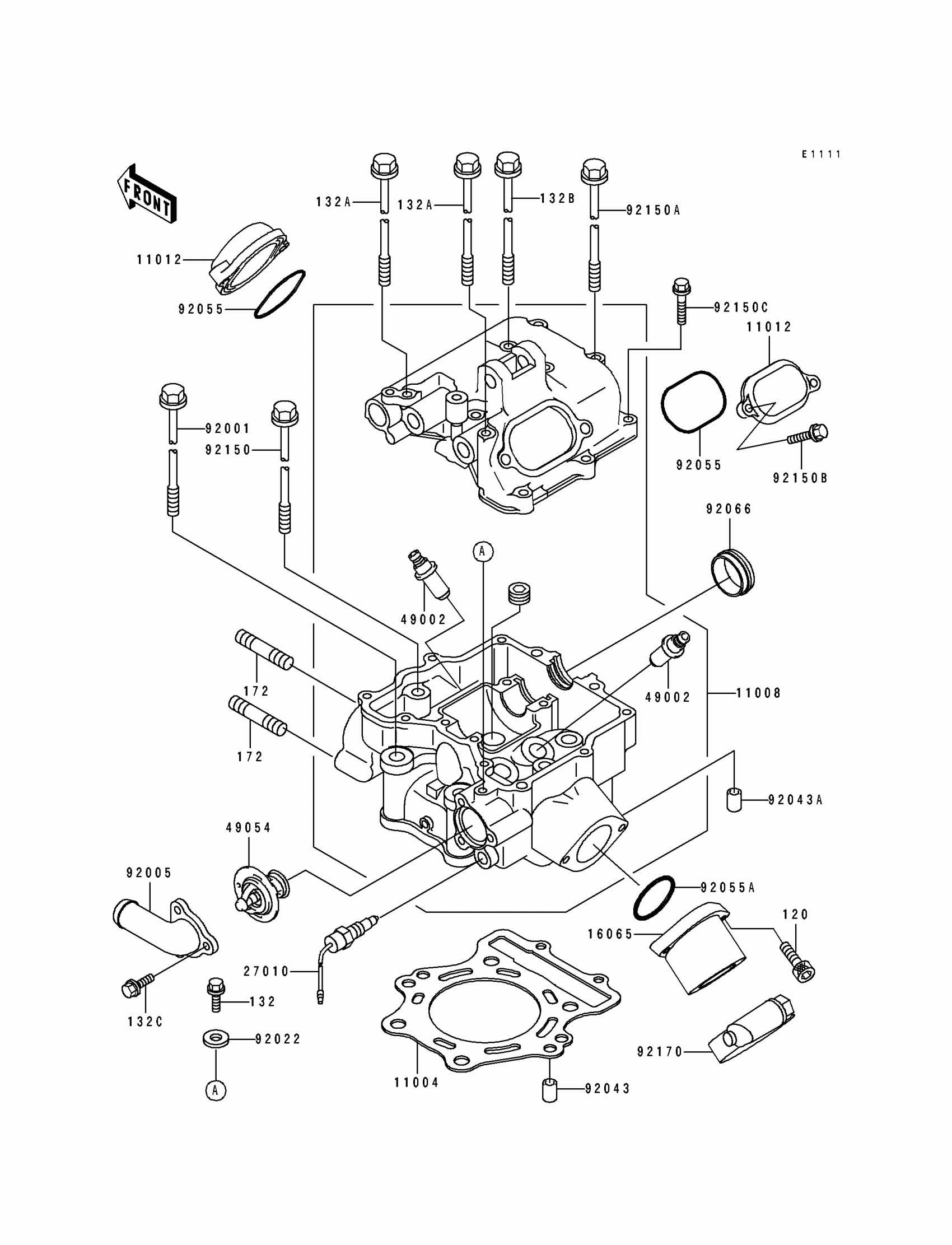

Kawasaki Bayou 400 4X4 Cylinder Head Diagram

#

Description
Price

11004

GASKET-HEAD

11004-1233

$51.62

11008

HEAD-COMP-CYLINDER

11008-5006

Unavailable

11012

CAP,ROCKER CASE

11012-1793

$30.15

16065

HOLDER-CARBURETOR

16065-1296

$41.19

27010

SWITCH,SENSOR WATER

27010-1346

$120.07

49002

GUIDE-VALVE

49002-1052

Unavailable

49054

THERMOSTAT

49054-1053

$54.56

92001

BOLT,10X185

92001-1994

$21.83

92005

FITTING

92005-1121

$36.12

92022

WASHER,6.2X11X1

92022-304

$3.65

92043

PIN,6.2X8X14

92043-1263

$0.43

92043A

PIN,DOWEL,8X10

92043-1302

$1.03

92055

RING-O,55MM

92055-1120

$5.52

92055A

RING-O,39.5X2.4

92055-1342

$16.66

92066

PLUG

92066-1289

$14.36

92150

BOLT,8X83

92150-1531

$11.34

92150A

BOLT,6X135

92150-1552

$7.34

92150B

BOLT,6X20

92150-1597

$2.49

92150C

BOLT,6X30

92150-1677

Unavailable

92170

CLAMP

92170-1280

Unavailable

120

BOLT-SOCKET,6X20

120S0620

Unavailable

132

BOLT-FLANGED-SMALL,6X10

132G0610

$1.60

132A

BOLT-FLANGED-SMALL,6X55

132G0655

$2.62

132B

BOLT-FLANGED-SMALL,6X65

132G0665

$4.15

132C

BOLT-FLANGED-SMALL,6X12

132J0612

$1.92

172

BOLT-STUD,8X22

172G0822

$2.12
