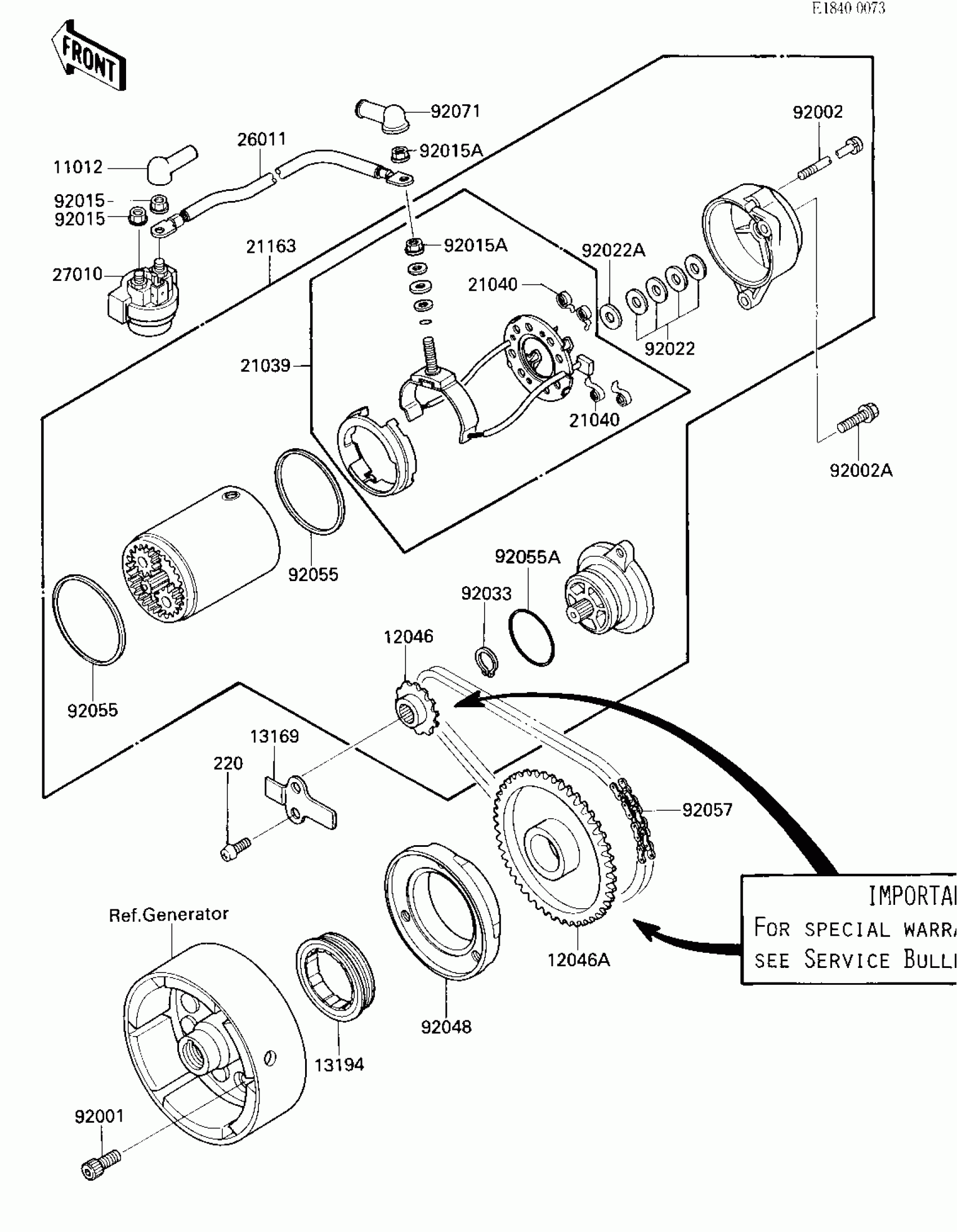

Kawasaki Bayou 300 STARTER MOTOR/STARTER CLUTCH (-E/NO. 017 Diagram

Description

Price

11012

CAP,TERMINAL

11012-1354

$10.19

12046

SPROCKET,STARTER MOTO

12046-1004

Unavailable

12046A

SPROCKET,STARTER

12046-1077

$76.41

13169

PLATE

13169-1925

Unavailable

13194

CLUTCH-ONEWAY

13194-1061

Unavailable

21039

BRUSH,CARBON

21039-1053

$94.23

21040

SPRING-BRUSH

21040-1003

$9.41

21163

STARTER-ELECTRIC

21163-1080

Unavailable

26011

WIRE-LEAD,STATER MOTOR

26011-1327

$68.02

27010

SWITCH,STARTER

27010-1314

$45.86

92001

BOLT-SOCKET,8X16

120P0816

$4.15

92002

BOLT

92002-1474

$15.34

92002A

BOLT

92002-1664

$5.24

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,9.1X18X0.2

21025-011

$6.22

92022A

WASHER,9.1X18X0.8

92022-1132

$6.22

92033

RING-SNAP,13MM

92033-037

$9.80

92048

RACE

92048-1061

Unavailable

92055

RING-O,64MM

92055-1086

$10.00

92055A

RING-O,42.8MM

92055-1313

$8.66

92057

CHAIN,STARTER,KEC29H,64L

92057-1196

$51.39

92071

GROMMET,STARTER TERMINAL

21017-017

$9.43

220

SCREW-PAN-CROS,6X14

220B0614

$1.48
