Description

Price

130

BOLT-FLANGED,6X10

130C0610

$3.84

180

BOLT-UPSET-WS

180D0618

Unavailable

13183

PLATE,HEAT GUARD

13183-1035

$8.76

14024

COVER,REAR FENDER,BLACK

14024-1095-6D

$29.68

14024B

COVER,REAR FENDER,F.RED

14024-1095-6L

$37.62

18018

PLATE-HEAT GUARD

18018-1071

$22.06

35011

STAY,REAR FLAP,LH

35011-1418

$47.92

35011A

STAY,REAR FLAP,RH

35011-1419

$47.92

35011B

STAY,FLAP,OUTER

35011-1435

$35.24

35019F

FLAP,FR,LH

35019-1225

$31.01

35019G

FLAP,FR,RH

35019-1226

$31.01

35019H

FLAP,RR,LH

35019-1227

$39.84

35019I

FLAP,RR,RH

35019-1228

$39.84

35019J

FLAP,FR,OUTER

35019-1255

$11.99

35023

FENDER-REAR,BLACK

35023-1139-6D

Unavailable

35023B

FENDER-REAR,F.RED

35023-1139-6L

$229.18

92009

SCREW,6X18,BLACK

92009-1181

$2.80

92009A

SCREW,6X14

92009-1288

$3.92

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92027

COLLAR,L=5.6

92027-1933

$5.78

92066

PLUG,11X3.2

92074-038

$7.22

92071

GROMMET

92071-1131

$7.77

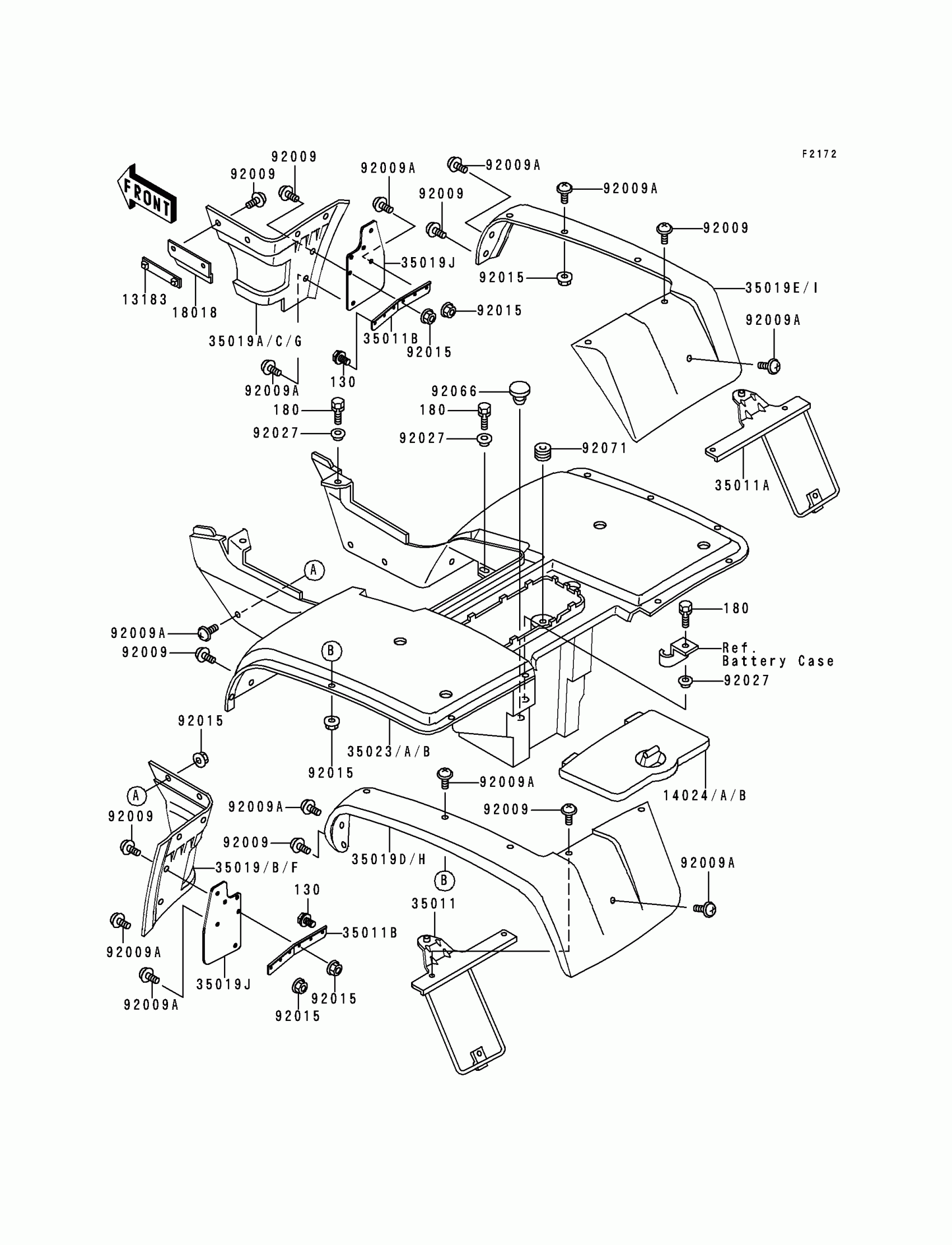

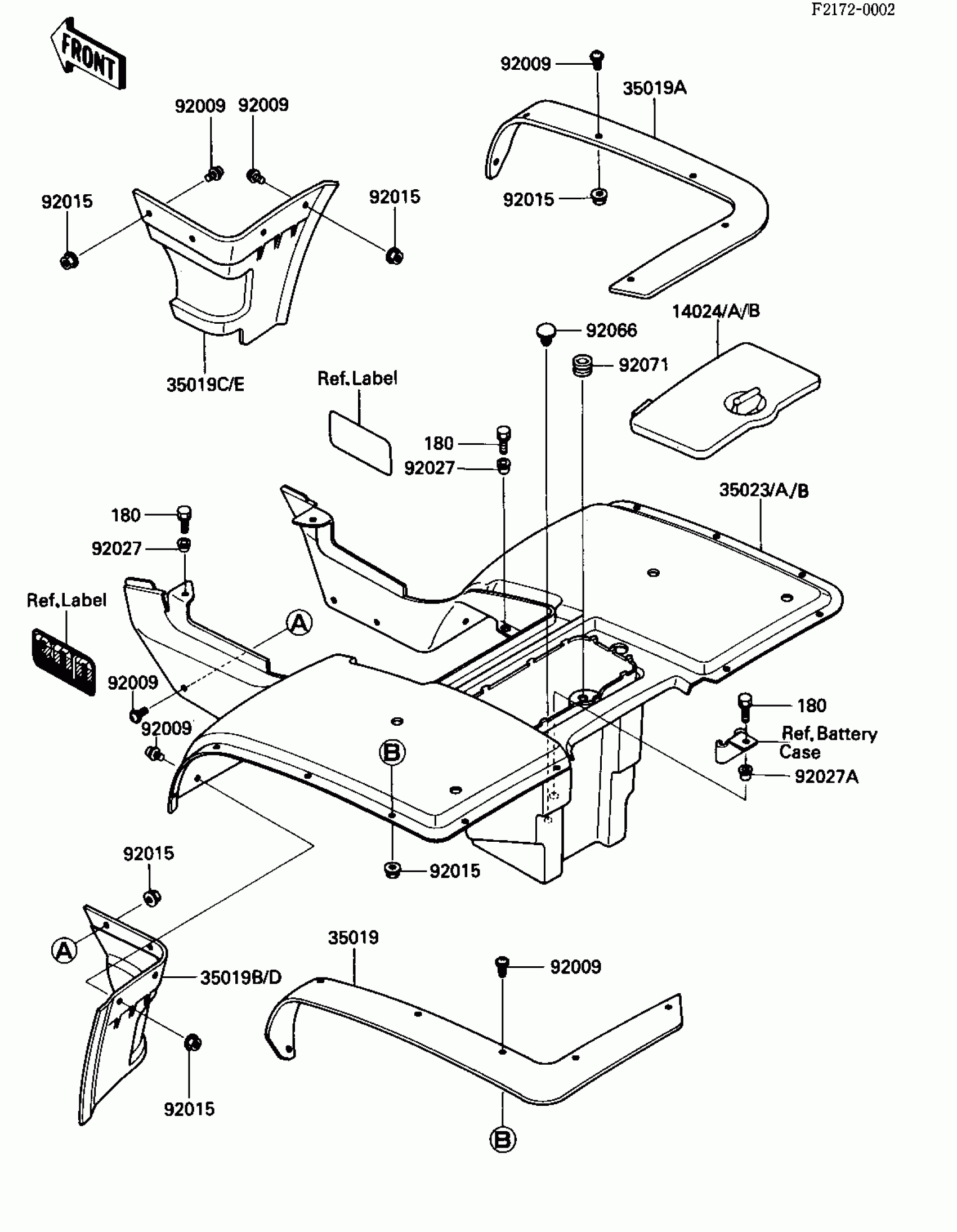

Kawasaki Bayou 300 Rear Fender Diagram
