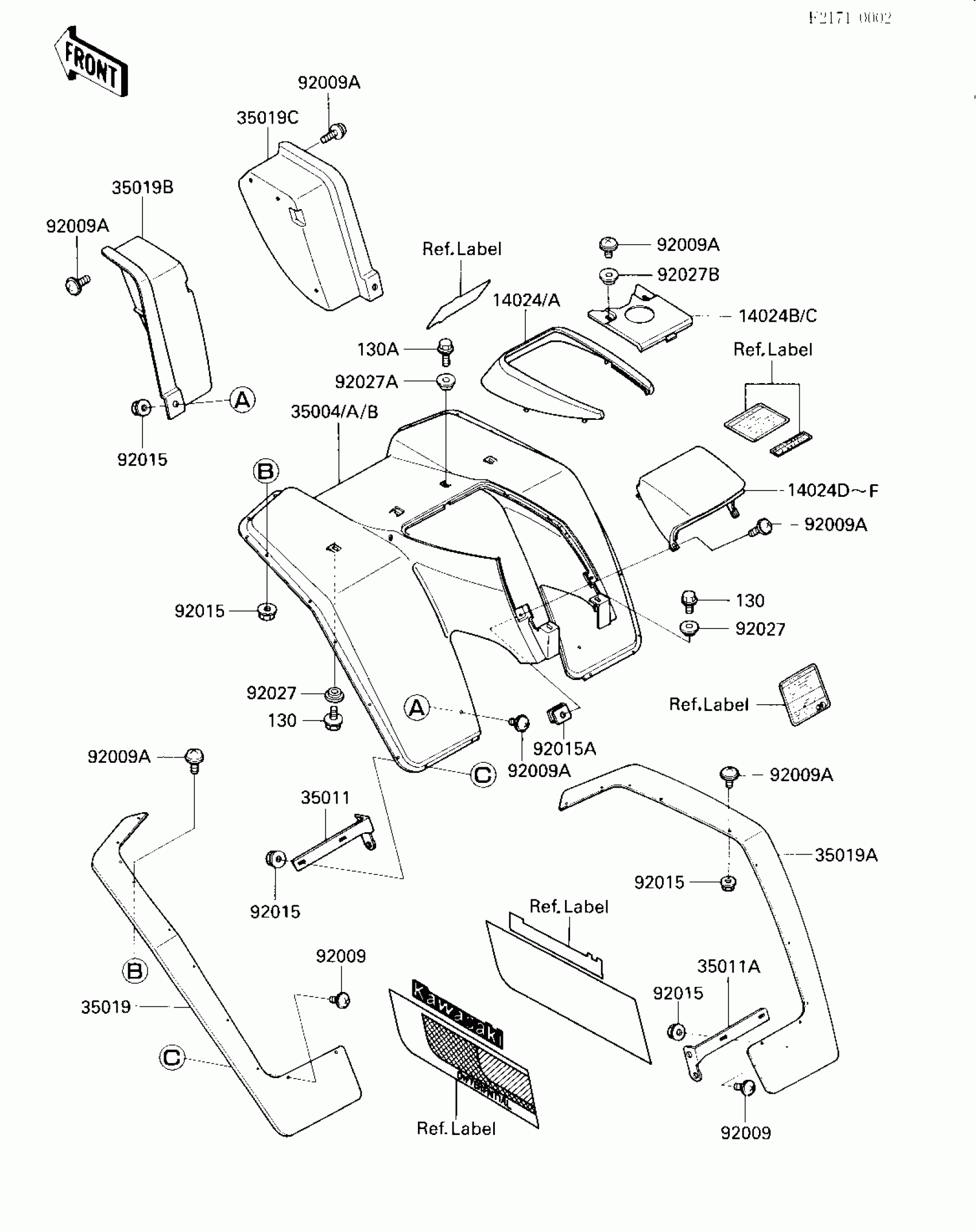

Kawasaki Bayou 300 FRONT FENDERS Diagram
#
Description
Price
14024
COVER,FRONT FENDER,FR,EBO (Can
14024-1064-6C
Unavailable
14024A
COVER-FRONT-EBONY
14024-1064-6D
$18.58
14024B
14024-1080-6D (Canada)
14024-1080-6C
Unavailable
14024C
COVER-REAR
14024-1080-6D
Unavailable
14024D
COVER,FRONT FENDER,RR,EBO (Can
14024-1093-6C
Unavailable
14024E
COVER,FRONT FENDER,RR,BLACK
14024-1093-6D
$26.77
14024F
COVER,FRONT FENDER,RR,F.RED
14024-1093-6L
$34.39
35004
FENDER-FRONT,EBONY (Canada)
35004-1172-6C
Unavailable
35004A
FENDER-FRONT,BLACK
35004-1172-6D
Unavailable
35004B
FENDER-FRONT,F.RED
35004-1172-6L
$257.86
35011
STAY
35011-1259
Unavailable
35011A
STAY
35011-1260
$11.40
35019
FLAP,FR,LH
35019-1146
$48.05
35019A
FLAP,FR,RH
35019-1147
$48.05
35019B
FLAP,FR,INSIDE,LH
35019-1148
Unavailable
35019C
FLAP,FR,INSIDE,RH
35019-1149
Unavailable
92009
SCREW,6X18
92009-1663
Unavailable
92009A
SCREW,6X14
92009-1288
$3.92
92015
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92015A
NUT,CLAMP,6MM
92015-1678
$5.52
92027
COLLAR
92027-122
$8.60
92027A
COLLAR,L=5.6
92027-1909
$6.16
92027B
COLLAR,L=4.7
92027-1964
$7.34
130
BOLT-FLANGED,6X16
130C0616
$0.63
130A
BOLT-FLANGED,8X20
130C0820
Unavailable
