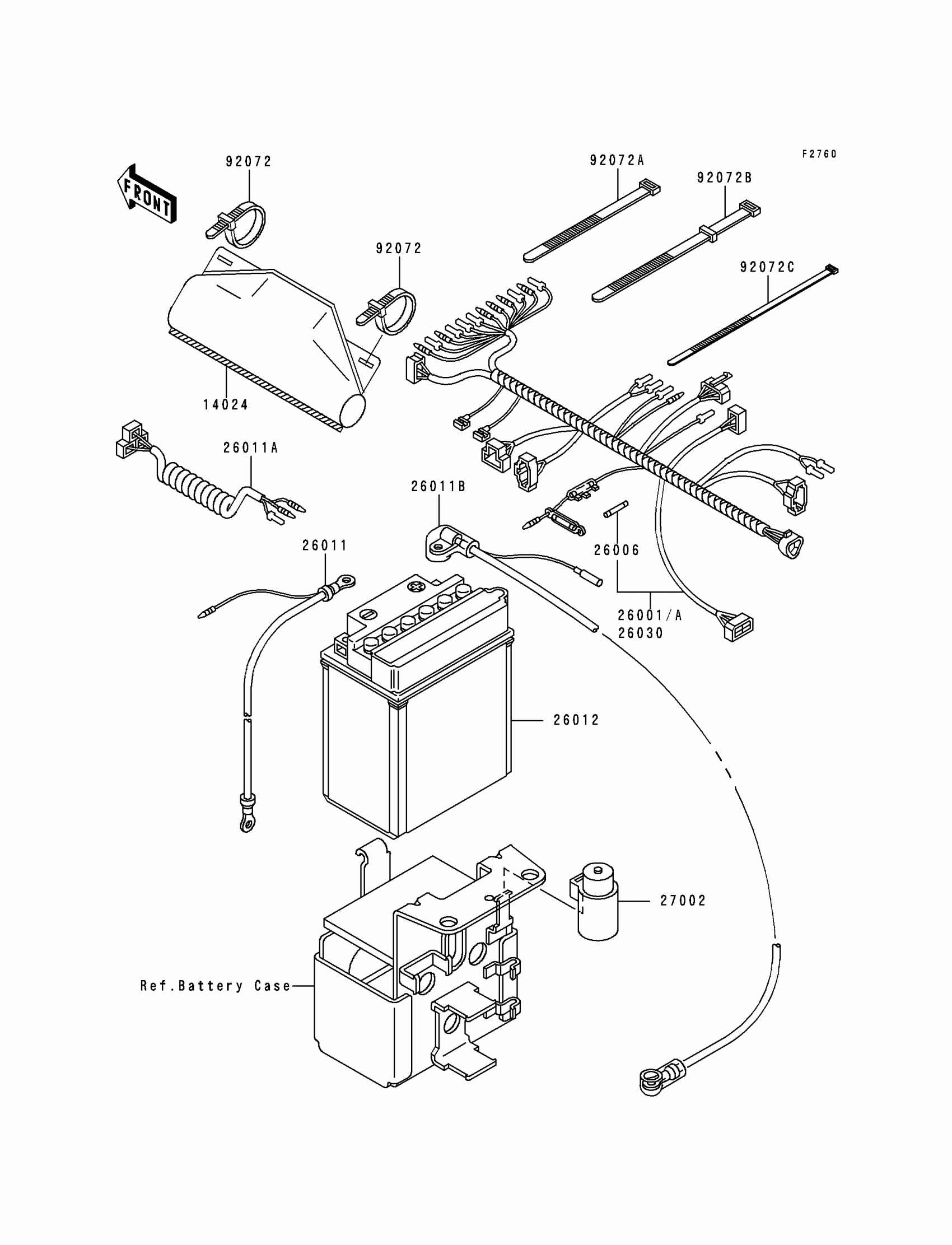

Kawasaki Bayou 300 Electrical Equipment Diagram

Description

Price

14024

COVER,COUPLER

14024-1624

Unavailable

26006

FUSE,30A,L=30

26006-1059

$4.96

26011

WIRE-LEAD,BATTERY(-)

26011-1303

$43.11

26011A

WIRE-LEAD,HEAD LAMP

26011-1405

$87.78

26011B

WIRE-LEAD,BATTERY(+)

26011-1418

$41.53

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=149

92072-031

$5.00

92072B

BAND,L=186

92072-056

$5.00

92072C

BAND,L=188

92072-1239

$1.73

26001A

HARNESS,MAIN

26001-1937

Unavailable

26012

BATTERY,12V 14AH,YB14A-A2

26012-1146

Unavailable

26030

HARNESS,MAIN

26030-1063

Unavailable

27002

RELAY-ASSY

27002-1051

$52.57
