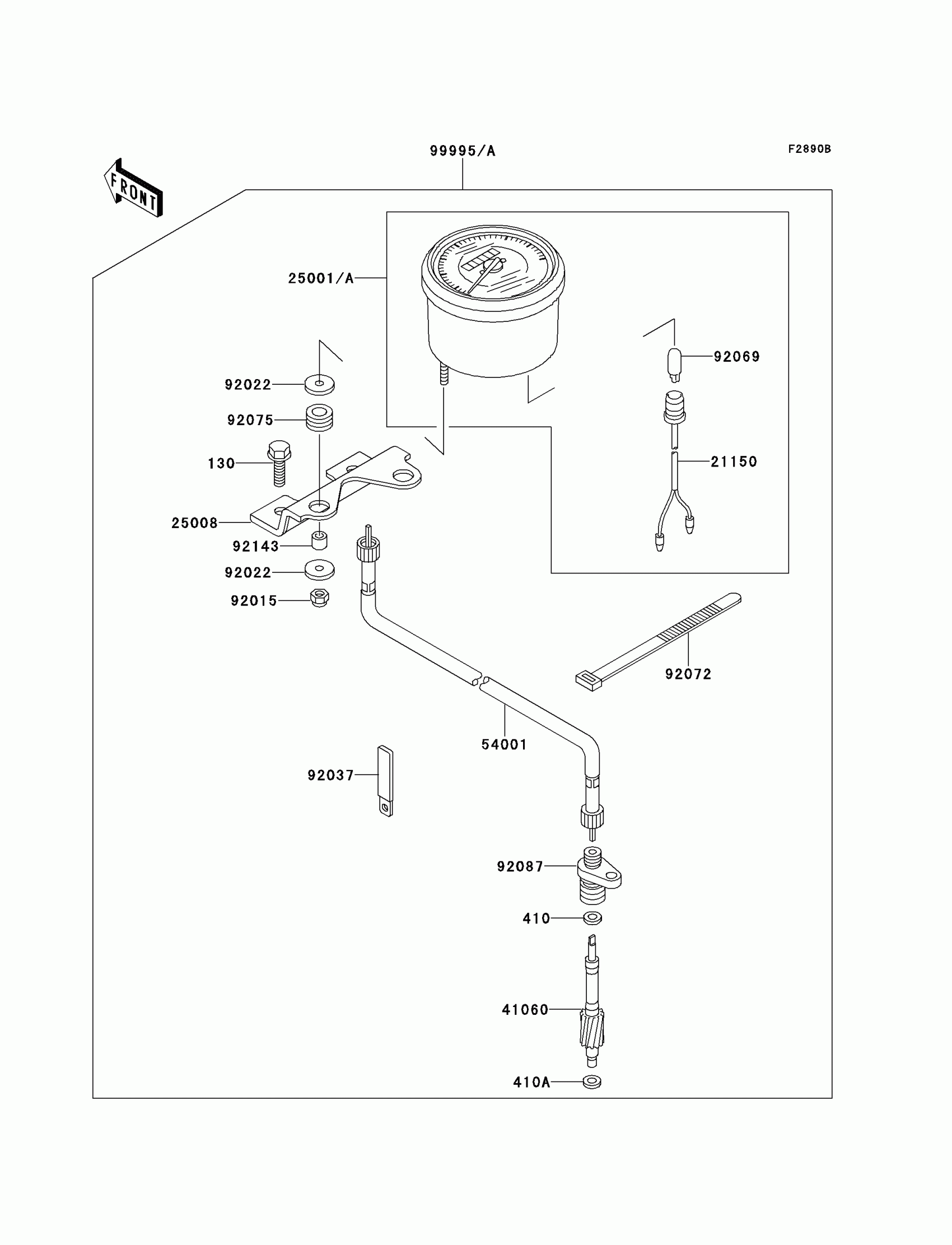

Kawasaki Bayou 300 4X4 Optional Parts(Meter) Diagram

Description

Price

130

BOLT-FLANGED,8X12

130J0812

$0.67

410

WASHER PLAIN 5MM

410B0500

$0.46

410A

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

21150

CORD-ASSY,SPEEDOMETER

21150-1054

$35.01

25008

BRACKET-METER

25008-1149

$47.03

41060

GEAR-METER SCREW

41060-1126

$42.93

54001

CABLE-SPEEDOMETER

54001-1151

Unavailable

92015

NUT,LOCK,5MM

92015-1221

$6.22

92022

WASHER,5.5X20X1.2

92022-1405

$4.31

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92069

BULB,12V 3.4W,T10

92069-1007

$5.00

92072

BAND,L=149

92072-031

$5.00

92075

DAMPER

92075-1409

$6.45

92087

BUSHING-METER GEAR

92087-1057

$24.32

92143

COLLAR,5.5X10X8.5

92143-1235

$5.88

25001

METER-ASSY,SPEED,MPH

25001-1723

$322.88

25001A

METER-ASSY,SPEED,KPH

25001-1725

Unavailable

99995

KIT.,METER,MPH

99995-1019

$261.71

99995A

KIT.,METER,KPH

99995-1021

Unavailable
