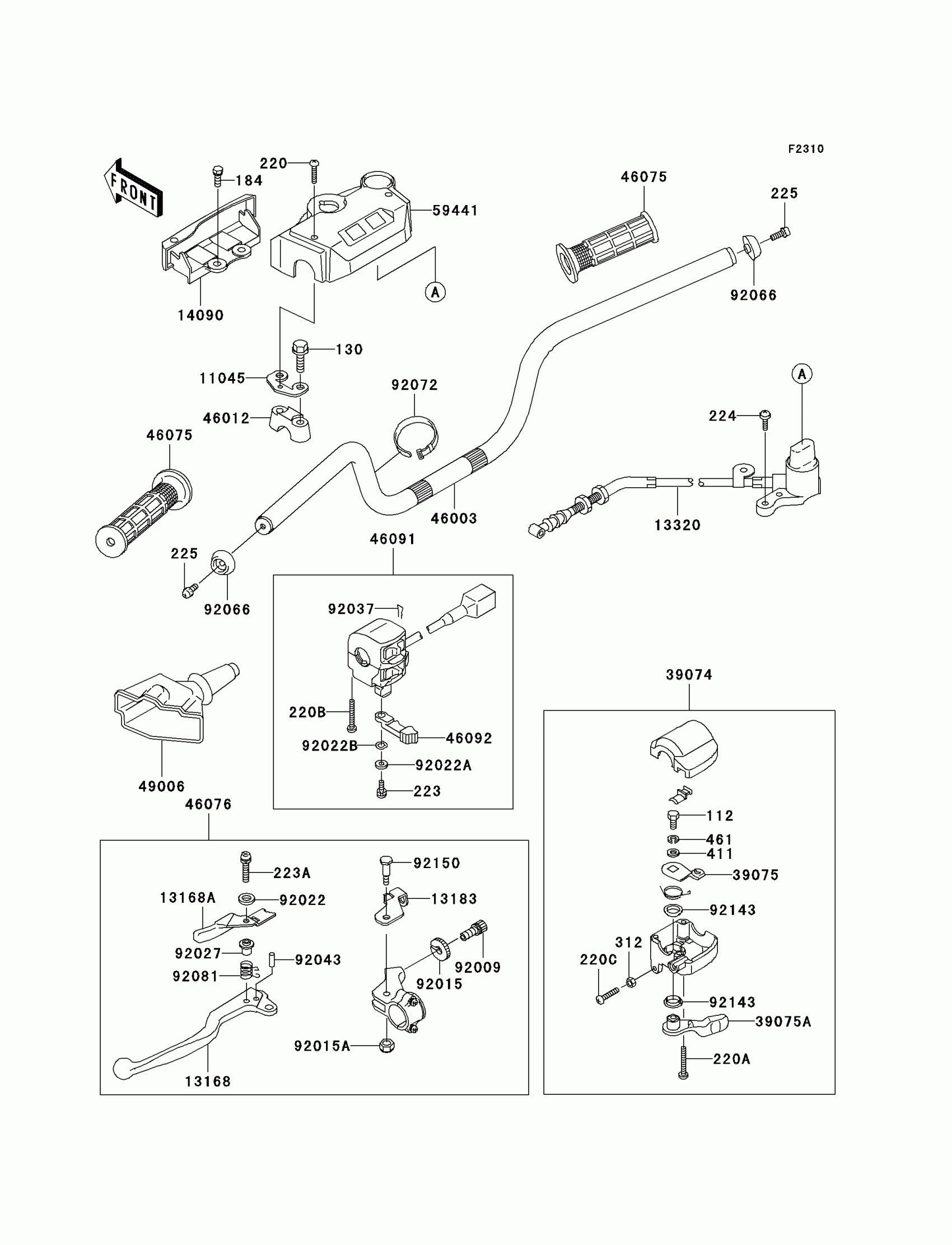

Kawasaki Bayou 300 4X4 Handlebar(KLF300-C10/C11) Diagram
#
112
BOLT-UPSET
112D0614
$0.49
130
BOLT-FLANGED,8X60
130P0860
$1.74
184
BOLT-UPSET-WP-SMALL
184J0814
$4.95
11045
BRACKET,HANDLE COVER,RH
11045-1925
$7.69
13168
LEVER,LH
13168-1449
$41.68
13168A
LEVER,LOCK
13168-1450
$29.01
13183
PLATE,LOCK
13183-1609
Unavailable
13320
LEVER-ASSY,REVERSE
13320-1005
$129.87
14090
COVER,HANDLE
14090-1767
$19.41
39074
LEVER-ASSY-THROTTLE
39074-1055
$79.09
39075
LEVER-THROTTLE,ARM
39075-1054
$11.51
39075A
LEVER-THROTTLE
39075-1059
$33.25
46003
HANDLE
46003-1365
$48.91
46012
HOLDER-HANDLE
46012-1168
$16.33
46075
GRIP
46075-1056
$25.83
46076
LEVER-ASSY-GRIP,LH
46076-1178
$52.54
46091
HOUSING-ASSY-CONTROL,LH
46091-1462
$233.96
46092
LEVER-GRIP,CHOKE
46092-1149
$5.69
49006
BOOT,CLUTCH LEVER
49006-1057
$21.09
59441
COVER-HANDLE
59441-1077
$28.68
92009
SCREW,CABLE ADJUST,8MM
92009-1435
$16.33
92015
NUT,CABLE ADJUST LOCK,8MM
92015-1596
$8.86
92015A
NUT
92015-1829
$4.26
92022
WASHER,4MM
92022-1647
$4.21
92022A
WASHER,5MM
92022-1837
$3.35
92022B
WASHER,WAVE,5MM
92022-1838
$3.35
92027
COLLAR,RETURN SPRING
92027-1336
$13.68
92037
CLAMP,CLIP
92037-1836
$5.33
92043
PIN,SPRING,3X16
92043-1268
$10.28
92066
PLUG,HANDLE
92066-1191
Unavailable
92072
BAND,L=149
92072-031
$5.00
92081
SPRING,LOCK RETURN
92081-1358
$5.46
92143
COLLAR
92143-1138
$3.56
92150
BOLT
92150-1420
Unavailable
220
SCREW-PAN-CROS,4X20
220C0420
$0.94
220A
SCREW-PAN-CROS,5X30
220C0530
Unavailable
220B
SCREW-PAN-CROS,5X35
220C0535
$2.06
220C
SCREW-PAN HEAD,6X30
220C0630
$1.89
223
SCREW-PAN-WS-CROS,5X12
223C0512
$4.32
223A
SCREW-PAN-WS-CROS,4X20
223C0420
$4.30
224
SCREW-PAN-WP-CROS,5X20
224B0520
$0.48
225
SCREW-PAN-WSP-CROS,6X20
225C0620
$3.84
312
NUT-HEX,6MM,BLACK
312C0600
$3.57
411
WASHER-PLAIN,6MM
411E0600
$1.31
461
WASHER-SPRING
461L0600
$0.71
