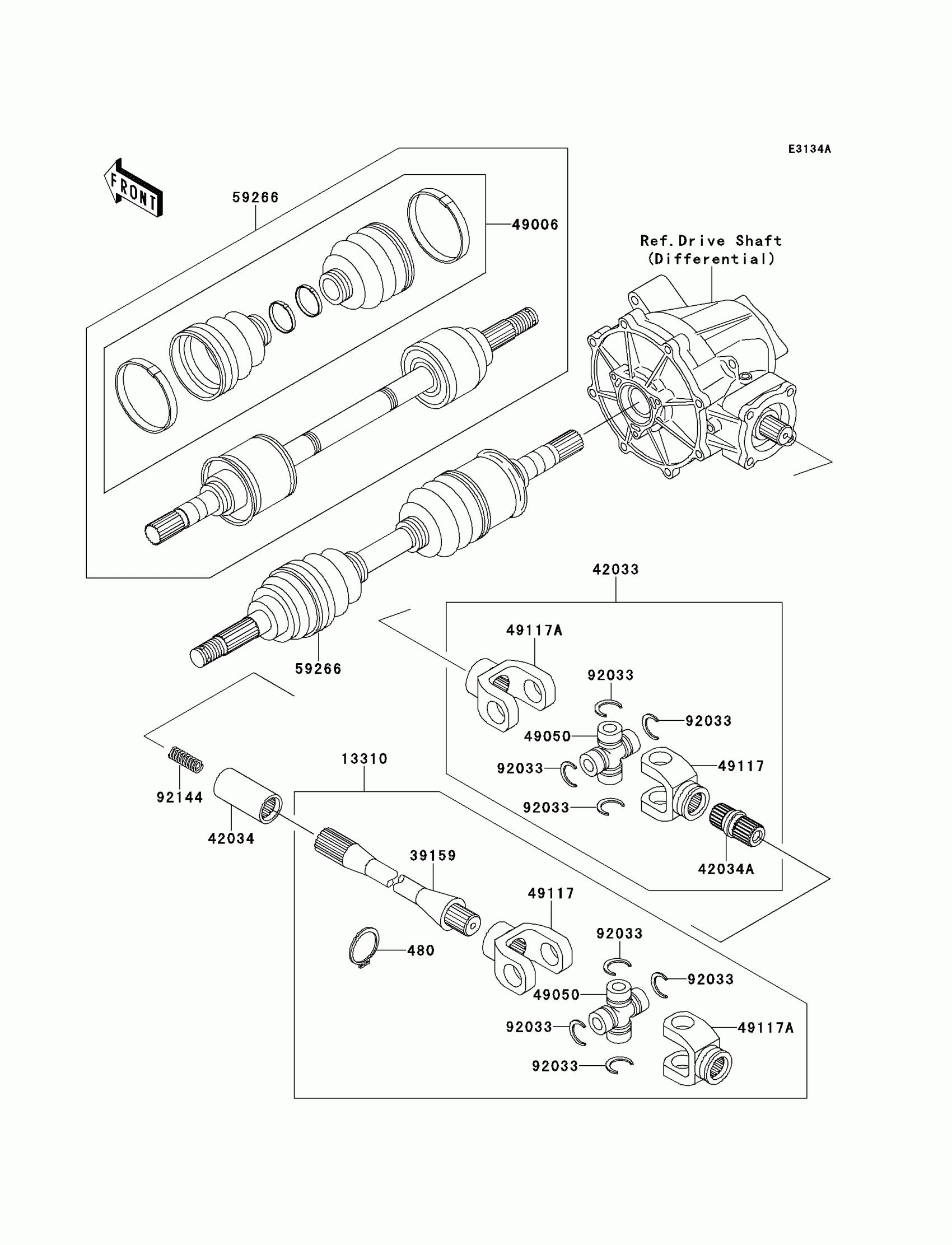

Kawasaki Bayou 300 4X4 Drive Shaft(Front)(KLF300-C5/C6) Diagram

Description

Price

480

CIRCLIP-TYPE-C,22MM

480J2200

$5.00

13310

SHAFT-ASSY

13310-1009

$220.70

39159

SHAFT-DRIVE

39159-1079

$294.65

42033

COUPLING-ASSY

42033-1161

$148.83

42034

COUPLING

42034-1103

Unavailable

42034A

COUPLING

42034-1127

$59.88

49006

BOOT,BJ&DOJ SET

49006-1252

$149.22

49050

SPIDER

49050-1055

$101.76

49117

YOKE

49117-1078

$62.69

49117A

YOKE

49117-1079

$62.69

59266

JOINT-BALL

59266-1096

$649.41

92033

RING-SNAP

92033-1158

$4.34

92144

SPRING

92144-1276

$5.42
