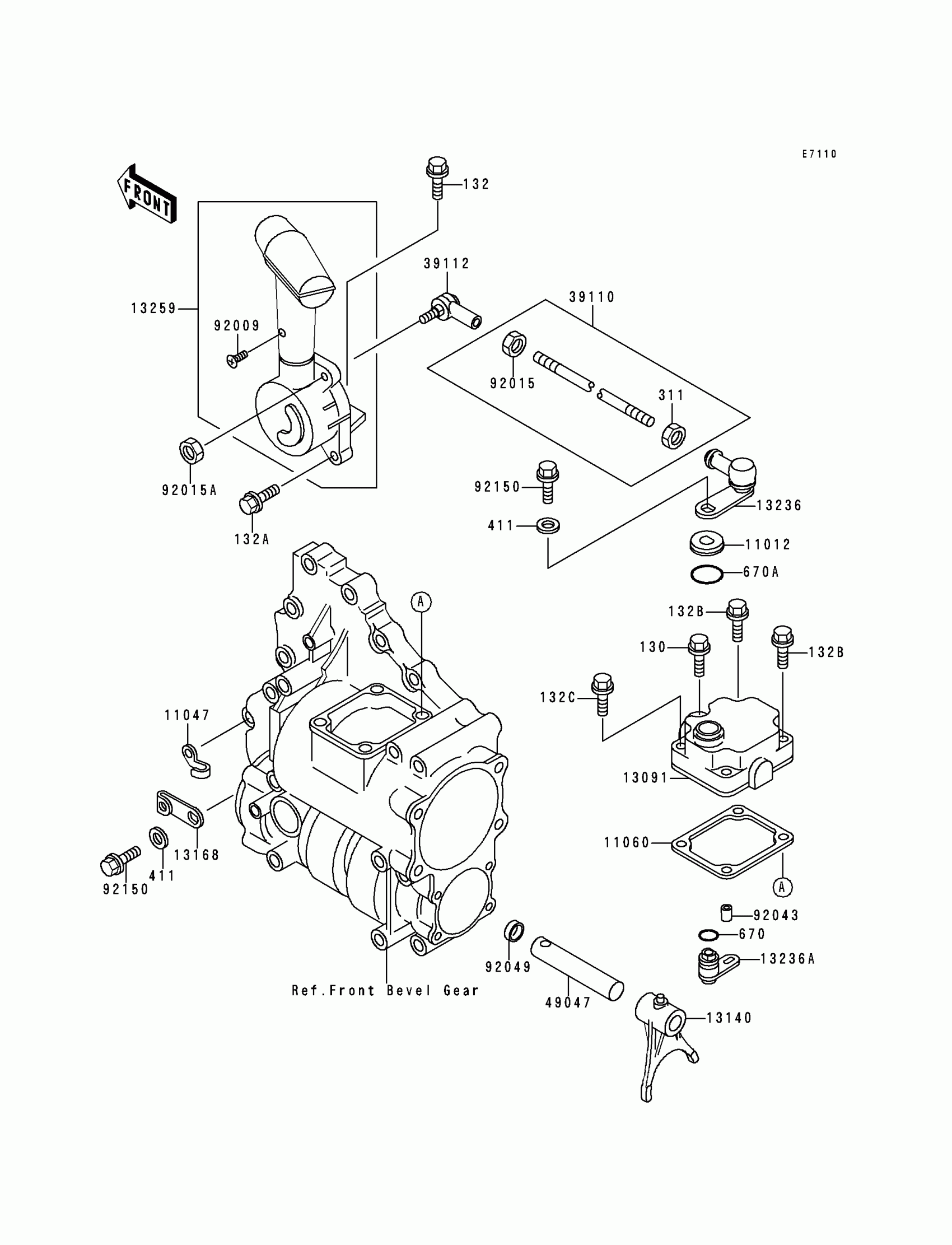

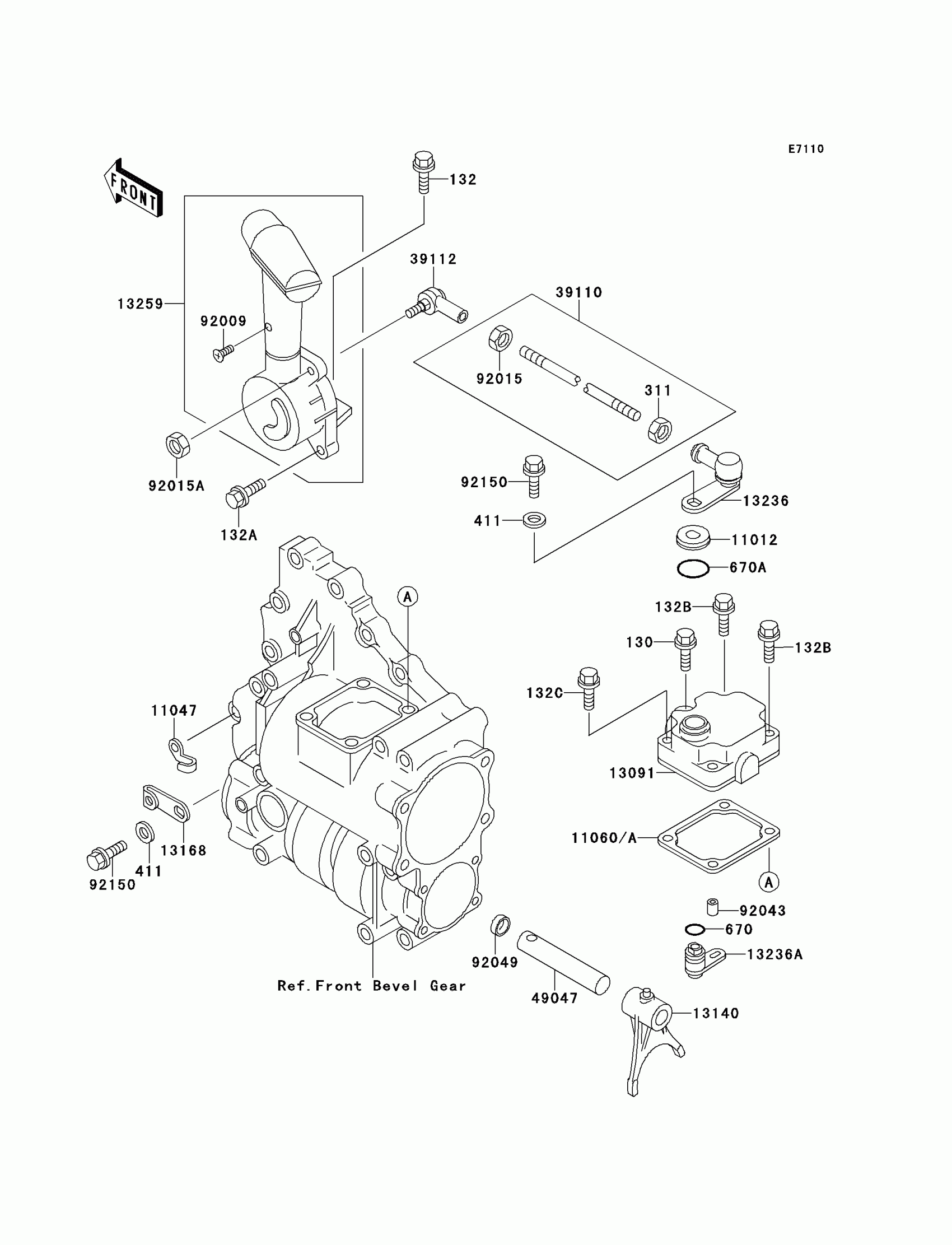

Kawasaki Bayou 300 4X4 Control Diagram

#

Description
Price

130

BOLT-FLANGED

130J0620

$0.43

132

BOLT-FLANGED-SMALL,6X20

132J0620

$3.64

132A

BOLT-FLANGED-SMALL,6X25

132J0625

$2.62

132B

BOLT-FLANGED-SMALL,6X30

132J0630

$3.84

132C

BOLT-FLANGED-SMALL,6X40

132J0640

$4.44

311

NUT-HEX

311J0600

$1.01

411

WASHER PLAIN

411F0600

$1.18

670

O RING,10MM

670B2010

$1.50

670A

O RING,18MM

670B2018

$1.42

11012

CAP

11012-1652

$8.12

11047

BRACKET,RELEASE LOCK WIRE

11047-1440

$13.84

11060

GASKET,CONTROL LEVER

11060-1233

Unavailable

13091

HOLDER

13091-1548

$55.20

13140

FORK-SHIFT

13140-1175

$109.79

13168

LEVER,RELEASE LOCK

13168-1395

$9.50

13236

LEVER-COMP

13236-1175

$99.61

13236A

LEVER-COMP

13236-1176

$22.33

13259

LEVER-ASSY-SHIFT CONTROL

13259-1003

$554.39

39110

ROD-ASSY-TIE

39110-1087

$11.51

39112

RODEND-TIE

39112-1006

$49.58

49047

ROD-SHIFT

49047-1078

$28.99

92009

SCREW,4X8

92009-1554

$4.40

92015

NUT,LEFT HANDED,6MM

92015-1178

$4.31

92015A

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92043

PIN,6.2X8X14

92043-1263

$0.43

92049

SEAL-OIL,RCA124

92049-1311

$6.42

92150

BOLT

92150-1681

$1.90
