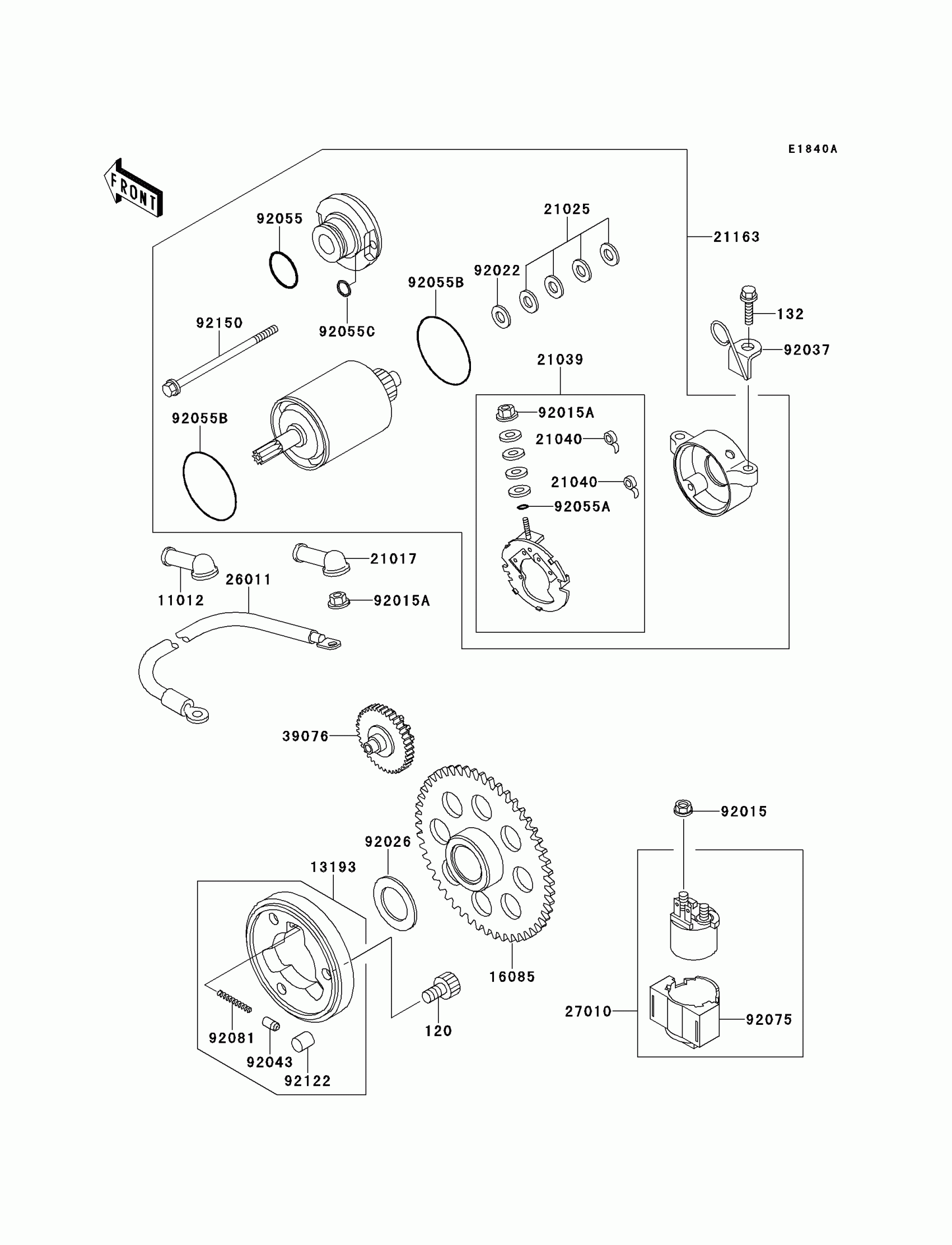

Kawasaki Bayou 220 Starter Motor(KLF220-A9) Diagram

#

Description
Price

120

BOLT-SOCKET,8X14

120P0814

$4.35

132

BOLT-FLANGED-SMALL,6X25

132Y0625

$5.02

11012

CAP,TERMINAL

11012-1354

$10.19

13193

CLUTCH-ASSY-ONEWAY

13193-1002

$116.39

16085

GEAR,ONEWAY CLUTCH

16085-1198

$129.23

21017

GROMMET,STARTER TERMINAL

21017-017

$9.43

21025

WASHER,9.1X18X0.2

21025-011

Unavailable

21039

BRUSH

21039-1066

$32.07

21040

SPRING-BRUSH

21040-1057

$8.42

21163

STARTER-ELECTRIC

21163-1266

$494.47

26011

WIRE-LEAD,STARTER

26011-1417

$64.96

27010

SWITCH

27010-1283

$130.42

39076

LIMITER,STARTER IDLE

39076-1060

$187.61

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92015A

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,9.1X18X0.8

92022-1132

$6.22

92026

SPACER,22X35.5X1.0

92026-092

$12.48

92037

CLAMP

92037-1962

$10.05

92043

PIN

92043-132

$6.22

92055

RING-O

92055-1276

$9.91

92055A

RING-O,4.5X2.0

92055-1370

$4.69

92055B

RING-O

92055-1550

$9.91

92055C

RING-O

92055-1551

$4.69

92075

DAMPER,MAGNETIC SWITCH

92075-1863

Unavailable

92081

SPRING,COIL

92081-159

$3.89

92122

ROLLER

92122-006

$6.22

92150

BOLT,FLANGED,4X80

92150-1969

$7.33
