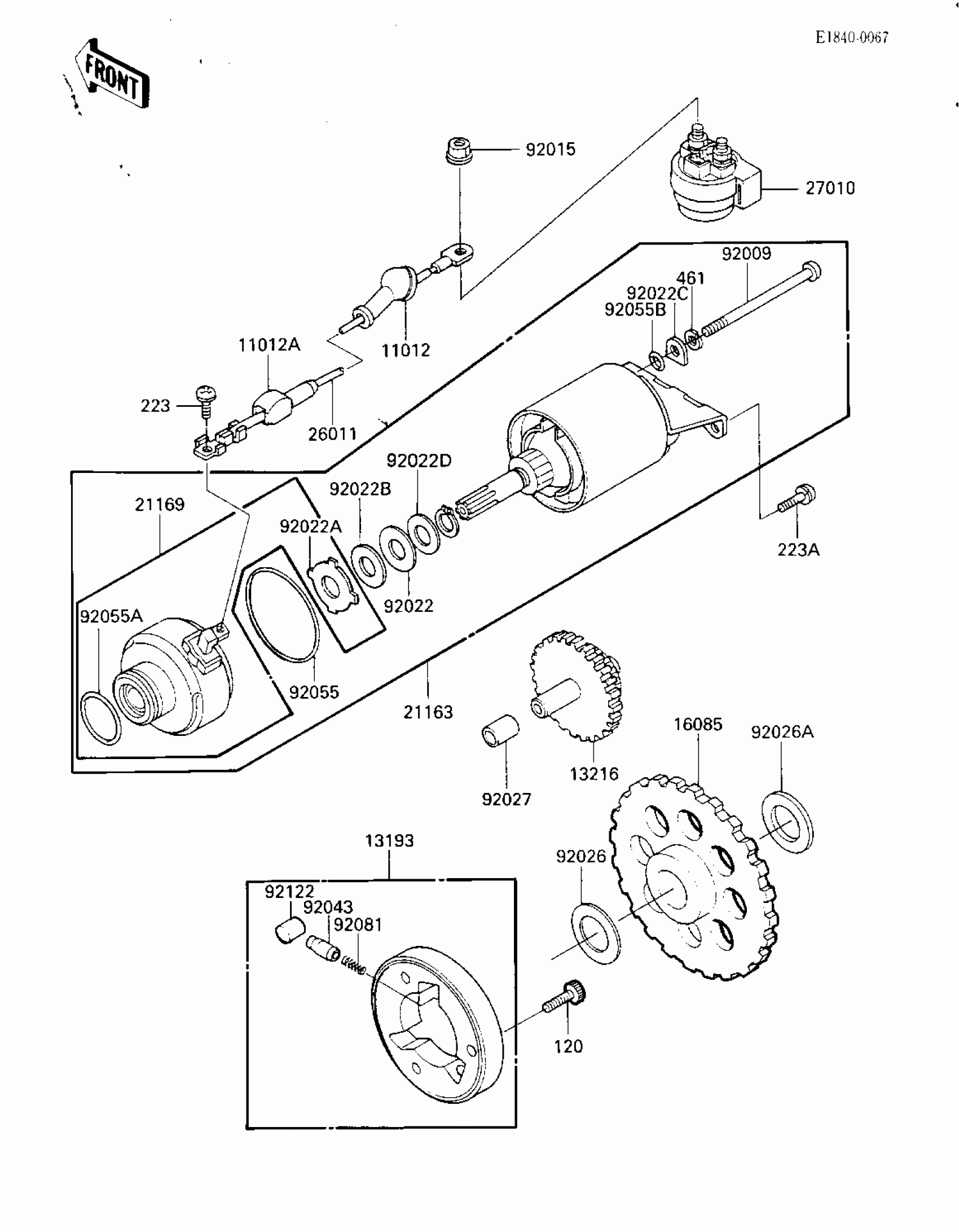

Kawasaki Bayou 185 STARTER MOTOR/STARTER CLUTCH Diagram

#

Description
Price

11012

CAP,TERMINAL

11012-1354

$10.19

11012A

CAP,STARTER TERMINAL

11012-1465

Unavailable

13193

CLUTCH-ASSY-ONEWAY

13193-1002

$116.39

13216

GEAR-COMP,IDLE

13216-1054

Unavailable

16085

GEAR,ONEWAY CLUTCH

16085-1032

Unavailable

21163

STARTER-ELECTRIC

21163-1076

$601.67

21169

TERMINAL,STARTER MOTOR

21169-1052

$161.68

26011

WIRE-LEAD,STARTER MOTOR

26011-1312

$35.14

27010

SWITCH,STARTER

27010-1314

$45.86

92009

SCREW

92009-1389

$6.02

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,THRUST

92022-1129

$3.61

92022A

WASHER,THRUST SUPPORT

92022-1130

Unavailable

92022B

WASHER,BAKELITE

92022-1131

$6.60

92022C

WASHER

92022-1697

$4.58

92022D

WASHER,22X12.2X0.5

92022-1714

Unavailable

92026

SPACER,22X35.5X1.0

92026-092

$12.48

92026A

SPACER,22.1X30.7X2.0

92026-1272

Unavailable

92027

COLLAR,12X17X17.3

92027-1723

$6.84

92043

PIN

92043-132

$6.22

92055

RING-O

92055-1042

Unavailable

92055A

RING-O

92055-1303

$11.79

92055B

RING-O

92055-1304

$1.86

92081

SPRING,COIL

92081-159

$3.89

92122

ROLLER

92122-006

$6.22

120

BOLT-SOCKET,8X14

120P0814

$4.35

223

SCREW-PAN-WS-CROS

223B0508

$0.40

223A

SCREW-PAN-WS-CROS

223X0616

$4.43

461

WASHER SPRING 5MM

461F0500

$0.69
