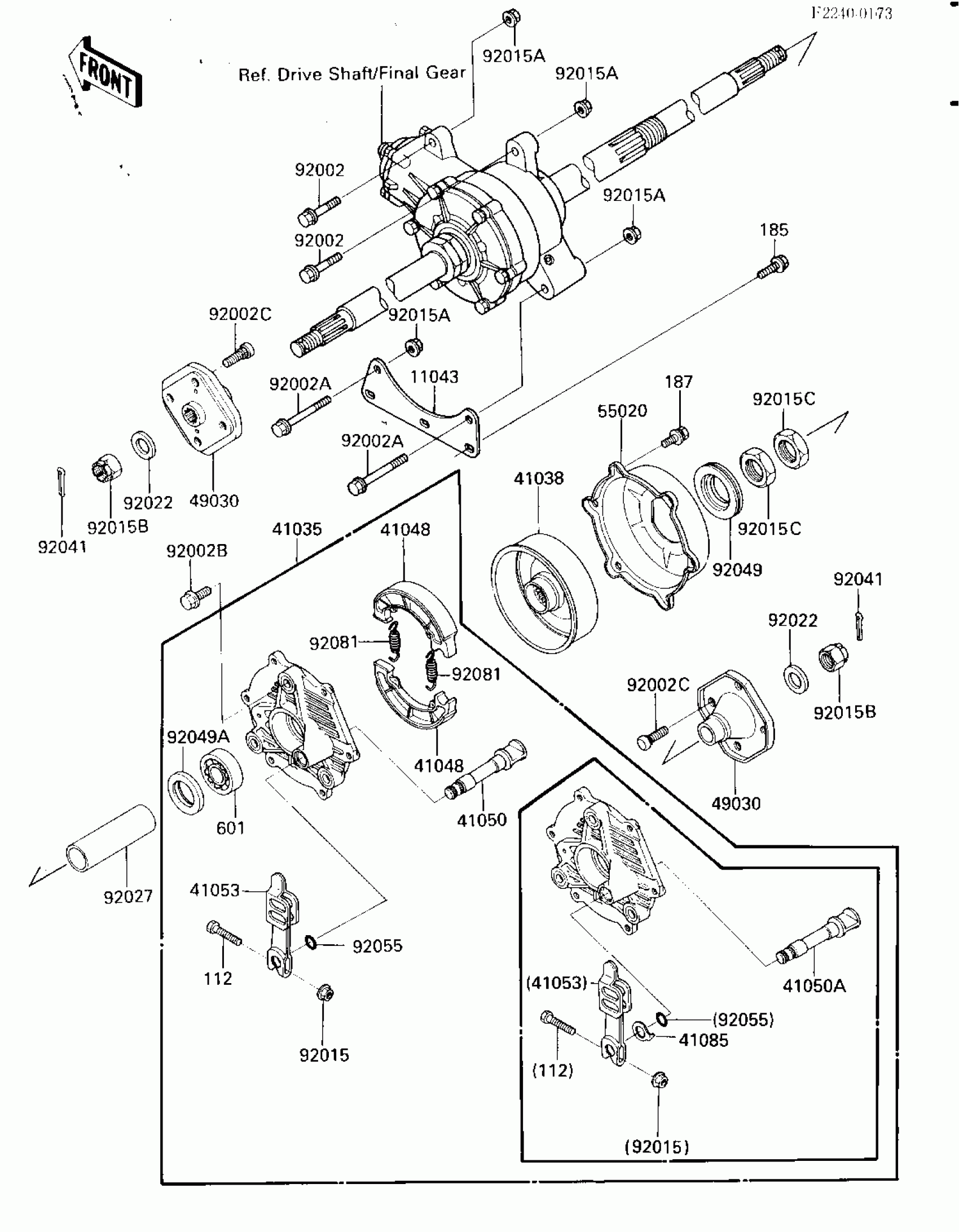

Kawasaki Bayou 185 REAR HUB/BRAKE (-F/NO.012886) Diagram
#
Description
Price
11043
BRACKET
11043-1550
Unavailable
41035
PANEL-ASSY-BRAKE,RR
41035-1246
$554.05
41038
DRUM,RR BRAKE
41038-1120
$221.00
41048
SHOE-BRAKE
41048-1069
$27.31
41050
CAM-BRAKE
41050-1057
$63.67
41050A
CAM-BRAKE
41050-1062
$63.67
41053
LEVER-BRAKE CAM
41053-1056
$34.55
41085
INDICATOR
41085-1053
$13.84
49030
HUB,RR
49030-1065
Unavailable
55020
GUARD,RR BRAKE DRUM
55020-1175
$21.52
92002
BOLT,FLANGED,10X38
92002-1313
$9.51
92002A
BOLT,FLANGED,10X70
92002-1315
$10.37
92002B
BOLT,FLANGED,10X20
92002-1368
$5.15
92002C
BOLT,10MM
92002-1459
$5.33
92015
NUT,6MM
41072-007
$3.92
92015A
NUT,FLANGED,10MM
92015-1428
$5.00
92015B
NUT,CASTLE,18MM
42045-018
$9.23
92015C
NUT,LOCK,32MM
92015-1493
Unavailable
92022
WASHER,18.3X34X4.5
92022-1658
$3.92
92027
COLLAR,RR HUB,L=124.5
92027-1758
$53.56
92041
COTTER,4.0X35
92041-1053
$3.92
92049
SEAL-OIL,RR BRAKE DRUM
92049-1194
Unavailable
92049A
SEAL-OIL,REAR HUB
92049-4001
$17.72
92055
RING-O,16.8X2.4
92055-1258
$4.92
92081
SPRING,BRAKE SHOE
42020-004
$8.51
112
BOLT-UPSET
112H0640
$3.90
185
BOLT-UPSET-WSP-SMALL
185H0818
$3.02
187
BOLT 6X14
187B0614
$0.88
601
BEARING-BALL,#6007UU
601A6007UU
$42.10
