Description

Price

11044

BRACKET

11043-1930

Unavailable

23004

LAMP-HEAD

23004-1176

$181.40

23005

BODY-COMP-HEAD LAMP,F

23005-1054-6C

$36.83

23005A

BODY-COMP-HEAD LAMP,FR,F.RED

23005-1054-6L

$58.02

23005B

BODY-COMP-HEAD LAMP,L

23005-1055-6C

$42.12

23005C

BODY-COMP-HEAD LAMP,L

23005-1055-6L

$36.26

23005D

BODY-COMP-HEAD LAMP,R

23005-1056-6C

$58.02

23005E

BODY-COMP-HEAD LAMP,RH,F.RED

23005-1056-6L

$36.83

23007

LENS-COMP,HEAD LAMP

23007-1122

$103.15

23008

SOCKET H.L.

23008-4004

$55.49

92002

BOLT,FLANGED,6X12

92002-1350

$5.35

92027

COLLAR,L=9

92027-1188

$5.52

92027A

COLLAR

92027-4020

$4.65

92069

BULB,12V 45/45W

92069-1061

$13.28

92075

DAMPER

92075-277

$2.84

180

BOLT-UPSET-WS

180B0620

$3.00

225

SCREW-PAN-WSP-CROS,6X16

225C0616

$4.02

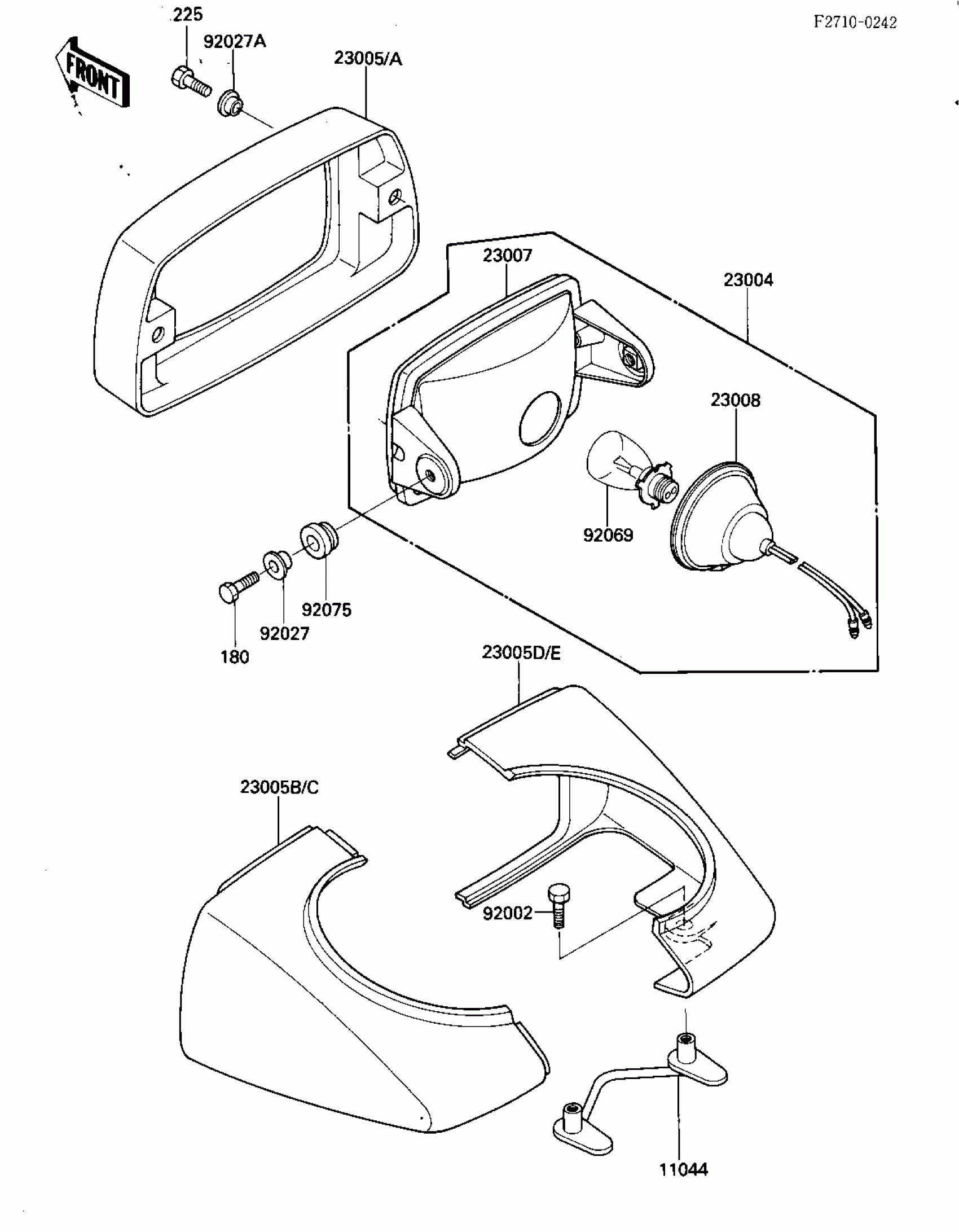

Kawasaki Bayou 185 HEADLIGHT Diagram

BRACKET

LAMP-HEAD

BODY-COMP-HEAD LAMP,F

BODY-COMP-HEAD LAMP,FR,F.RED

BODY-COMP-HEAD LAMP,L

BODY-COMP-HEAD LAMP,L

BODY-COMP-HEAD LAMP,R

BODY-COMP-HEAD LAMP,RH,F.RED

LENS-COMP,HEAD LAMP

SOCKET H.L.

BOLT,FLANGED,6X12

COLLAR,L=9

COLLAR

BULB,12V 45/45W

DAMPER

BOLT-UPSET-WS

SCREW-PAN-WSP-CROS,6X16
