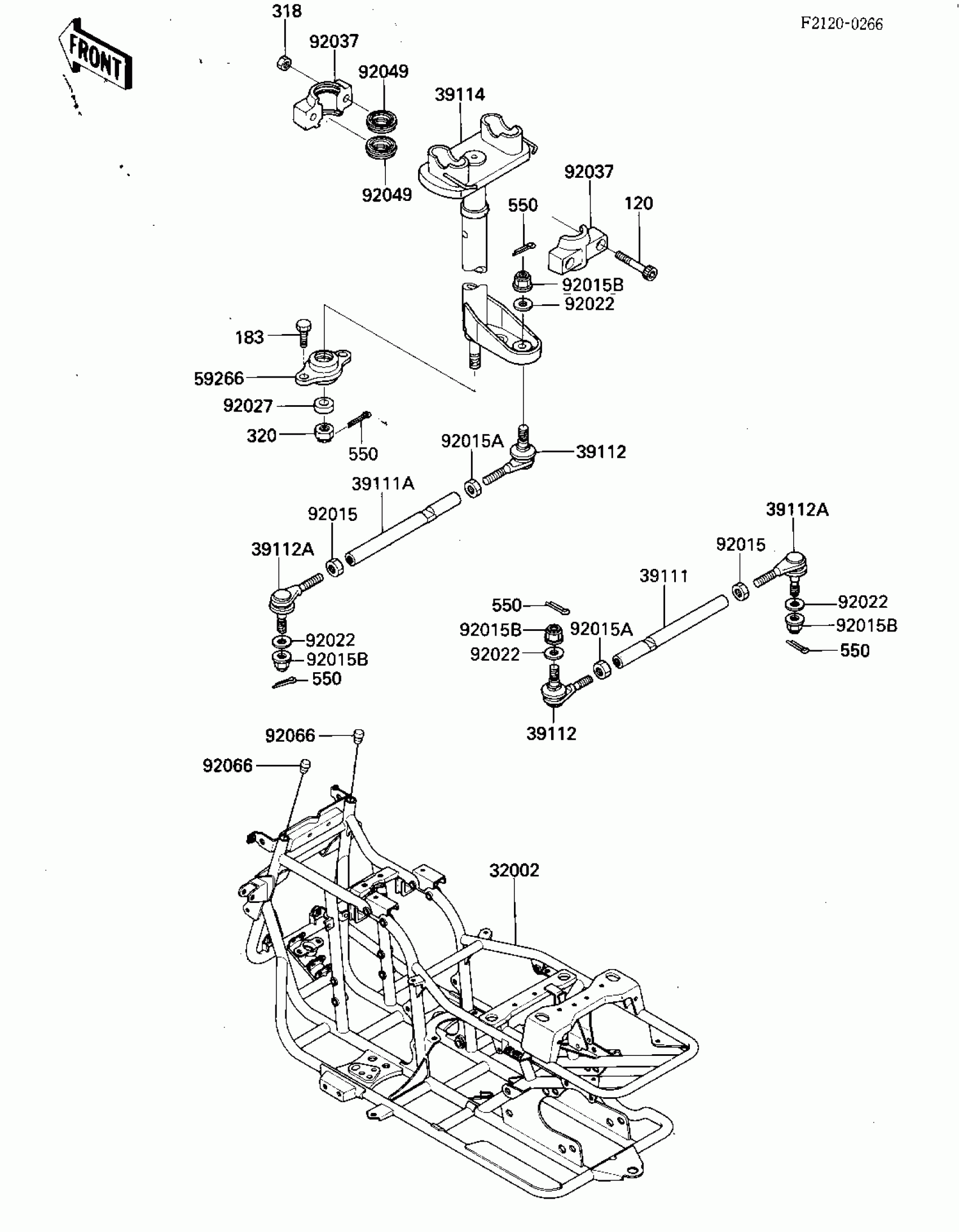

Kawasaki Bayou 185 FRAME/STEERING Diagram

Description

Price

32002

FRAME-COMP

32002-1767

$973.68

39111

ROD-TIE,RH

39111-1054

$38.25

39111A

ROD-TIE,LH

39111-1061

$38.25

39112

RODEND-TIE

39112-1051

$92.76

39112A

RODEND-TIE

39112-1052

$86.52

39114

SHAFT-COMP-STRG

39114-1051

$188.18

59266

JOINT-BALL

59266-1066

Unavailable

92015

NUT,LOCK,10MM

92015-1460

$6.52

92015A

NUT,LOCK,10MM

92015-1494

$6.22

92015B

NUT,FLANGED,10MM

92015-1502

$10.28

92022

WASHER,10.5X24X1.6

92022-1137

$4.38

92027

COLLAR,10X21.3X7

92027-1817

$15.14

92037

CLAMP,STEERING SHAFT

92037-1572

$77.89

92049

SEAL-OIL,MY25X33X8

92049-1199

$16.52

92066

PLUG

92066-1220

$4.96

120

BOLT,ALLEN,8X45

120P0845

$4.81

183

BOLT-UPSET-WS-SMALL

183G0822

$5.21

318

NUT-HEX-SMALL,8MM

318B0800

$0.59

320

NUT-CASTLE

320H1000

$7.88

550

PIN COTTER 2.0X15

550D2015

$1.04
