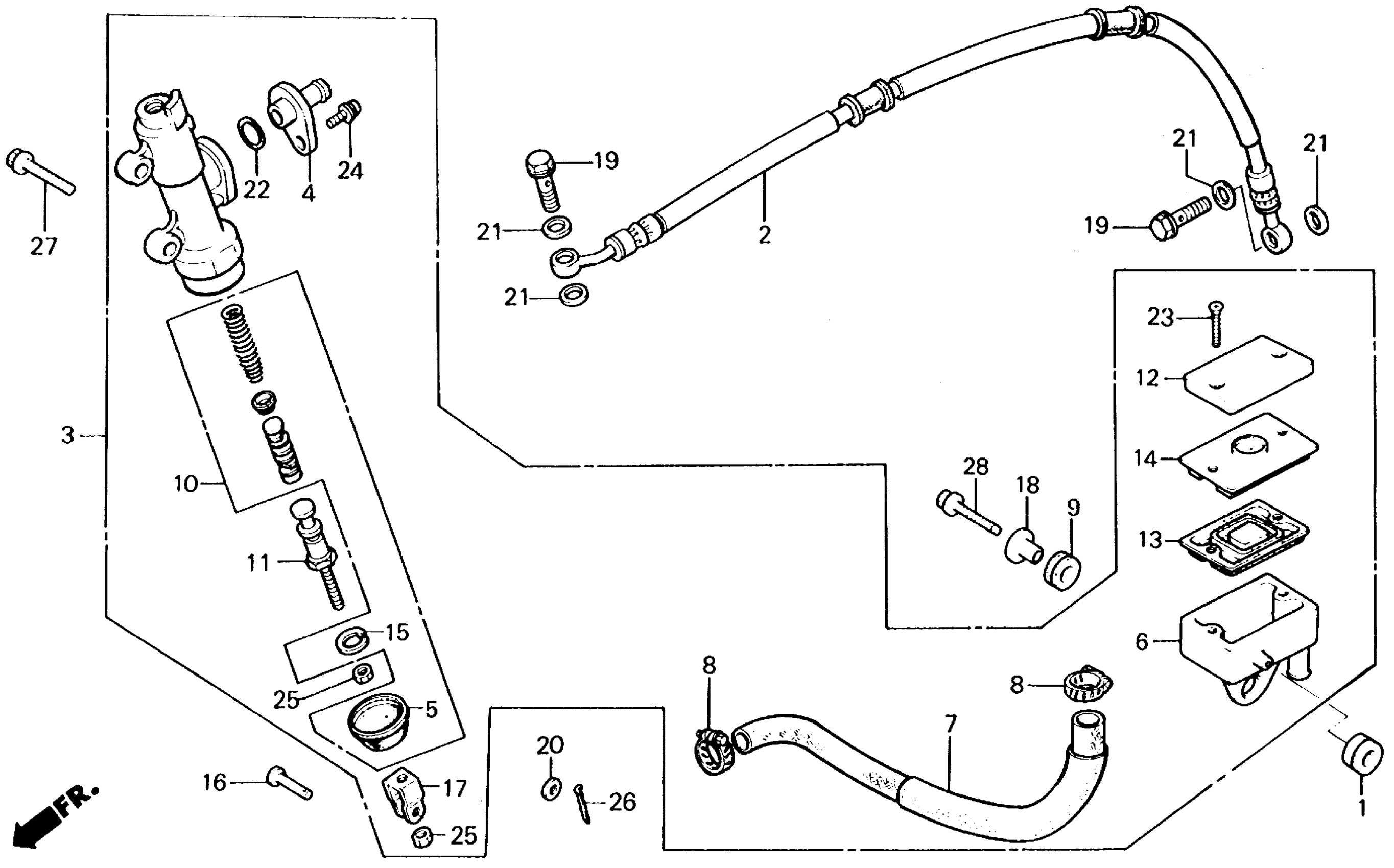

Honda ATC200XA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-GK500056 TO JH3TB052-GK519186 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

RUBBER, TAILLIGHT SETTING

33715-965-000

$5.10

2

HOSE ASSY., RR. BRAKE

43310-HB5-003

Unavailable

3

MASTER CYLINDER ASSY., RR. BRAKE (NISSIN) This part replaces 43500-HB5-006.

43500-HB5-671

Unavailable

3

MASTER CYLINDER ASSY., RR. BRAKE (NISSIN)

43500-HB5-671

Unavailable

4

CONNECTOR

43503-HB5-006

$9.95

5

BOOT

43504-MB2-006

$10.04

6

CUP, OIL

43511-HA2-016

$37.16

7

HOSE, MASTER CYLINDER (NISSHIN) This part replaces 43512-HB5-006.

43512-HB5-671

Unavailable

7

HOSE, MASTER CYLINDER (NISSHIN)

43512-HB5-671

Unavailable

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-964-006

$17.93

9

RUBBER, OIL CUP MOUNTING

43516-HA2-000

$4.48

10

PISTON SET, MASTER CYLINDER (NISSIN) This part replaces 43520-MB2-305.

43520-MB2-315

$46.51

11

ROD, PUSH

43530-MB2-006

$34.74

12

CAP, MASTER CYLINDER

45513-HA2-006

$27.55

13

DIAPHRAGM

45520-MG7-006

$10.61

14

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

15

CIRCLIP, MASTER CYLINDER

46182-500-013

$4.90

16

PIN, BRAKE ROD

46503-371-000

Unavailable

17

JOINT, BRAKE ROD

46504-MB2-006

Unavailable

18

COLLAR (6.3X13)

50324-425-010

$5.05

19

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

19

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

19

BOLT, OIL (10X22)

90145-KM3-751

$11.02

20

WASHER (7X12)

90501-310-000

$1.74

21

WASHER, OIL BOLT

90545-300-000

$3.99

22

O-RING (14.8X2.4)

91212-422-006

$2.56

23

SCREW, FLAT (4X30)

93600-04030-1A

$1.49

24

SCREW-WASHER (4X12)

93893-04012-08

$1.49

24

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

25

NUT, HEX. (8MM)

94002-08000-0S

$1.49

26

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

26

PIN, COTTER (1.6X25)

94201-16250

$1.49

27

BOLT, FLANGE (6X20)

96300-06020-00

$1.49

27

BOLT, FLANGE (6X20) This part replaces 96500-06020-00.

96300-06020-00

$1.49

28

BOLT, FLANGE (6X25)

96300-06025-00

$1.49

28

BOLT, FLANGE (6X25) This part replaces 96400-06025-00.

96300-06025-00

$1.49

28

BOLT, FLANGE (6X25) This part replaces 96500-06025-00.

96300-06025-00

$1.49
