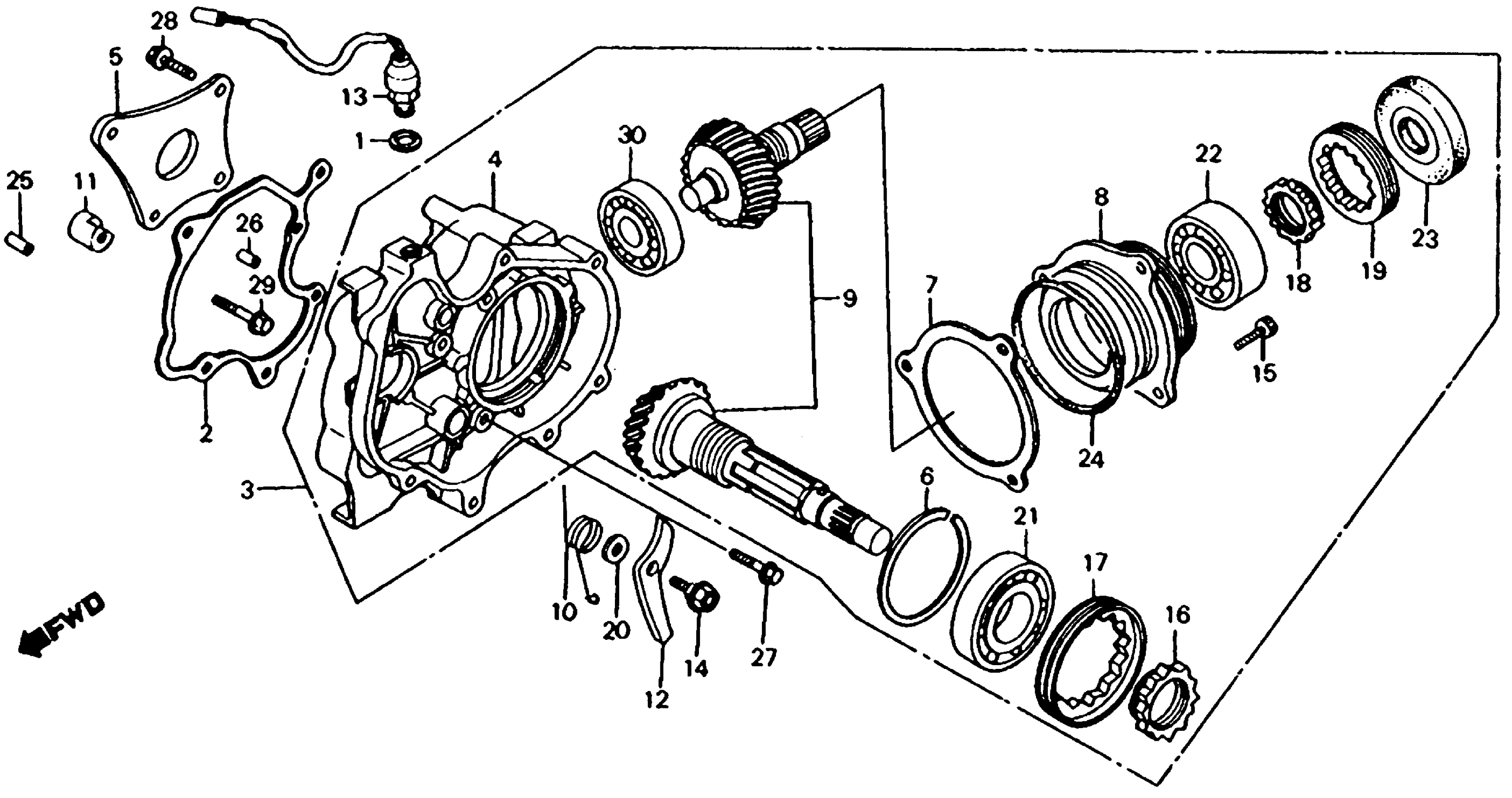

Honda ATC200ESA (84) BIG RED, JPN, VIN# JH3TB055-EC307605 TO JH3TB055-EC516032 SIDE GEAR CASE + GROSS SHAFT Diagram

#

Description
Price

1

COLLAR (10MM)

11205-969-000

Unavailable

2

GASKET, SIDE GEAR CASE This part replaces 11397-969-000.

11397-969-306

Unavailable

2

GASKET, SIDE GEAR CASE

11397-969-306

Unavailable

3

CASE ASSY., SIDE GEAR

21100-969-000

Unavailable

4

CASE, SIDE GEAR

21200-969-000

Unavailable

5

STAY, SIDE GEAR CASE

21205-969-000

Unavailable

6

SHIM A, FINAL DRIVE

21311-969-000

Unavailable

6

SHIM B, FINAL DRIVE

21312-969-000

Unavailable

6

SHIM C, FINAL DRIVE

21313-969-000

Unavailable

6

SHIM D, FINAL DRIVE

21314-969-000

Unavailable

6

SHIM E, FINAL DRIVE

21315-969-000

Unavailable

6

SHIM F, FINAL DRIVE

21316-969-000

Unavailable

6

SHIM G, FINAL DRIVE

21317-969-000

Unavailable

7

SHIM A, FINAL DRIVEN (0.40) (NOT AVAILABLE)

21341-969-000

Unavailable

7

SHIM B, FINAL DRIVEN (0.45)

21342-969-000

Unavailable

7

SHIM C, FINAL DRIVEN (0.50)

21343-969-000

Unavailable

7

SHIM D, FINAL DRIVEN (0.55)

21344-969-000

Unavailable

7

SHIM E, FINAL DRIVEN (0.60)

21345-969-000

Unavailable

7

SHIM F, FINAL DRIVEN (0.30) | Use from Engine SN 6049814

21346-969-000

Unavailable

7

SHIM G, FINAL DRIVEN (0.35) | Use from Engine SN 6049814

21347-969-000

Unavailable

8

HOLDER A, BEARING

21371-969-000

Unavailable

9

SHAFT SET, FINAL DRIVE

23200-969-000

Unavailable

10

SPRING, STOPPER LEVER (NOT AVAILABLE)

24718-969-000

Unavailable

11

CAM, STOPPER LEVER

24719-969-000

Unavailable

12

LEVER, REVERSE STOPPER | Use up to Engine SN 6102337 This part replaces 24720-969-000.

24720-969-020

Unavailable

12

LEVER, REVERSE STOPPER | Use up to Engine SN 6102337 This part replaces 24720-969-010.

24720-969-020

Unavailable

12

LEVER, REVERSE STOPPER

24720-969-020

Unavailable

13

SWITCH ASSY., REVERSE

35600-969-003

Unavailable

14

PIVOT, SUB-TRANSMISSION DRUM STOPPER (NOT AVAILABLE)

90025-969-000

Unavailable

15

BOLT, SOCKET (8X22)

90061-MB0-000

$5.44

16

NUT, LOCK (28MM)

90243-ME5-000

Unavailable

17

NUT, LOCK (70MM) (NOT AVAILABLE)

90244-969-000

Unavailable

18

NUT, LOCK (24MM)

90245-969-000

Unavailable

19

NUT, LOCK (56MM)

90246-969-000

Unavailable

20

WASHER, THRUST (6MM)

90451-ZE1-000

$1.57

20

WASHER, THRUST (6MM) This part replaces 90451-898-000.

90451-ZE1-000

$1.57

21

BEARING, RADIAL BALL (63/28) This part replaces 91012-969-000.

91009-HC0-003

$31.43

22

BEARING, RADIAL BALL (5205)

91014-969-003

$139.89

23

OIL SEAL (22X58X6) (NOK) (NOT AVAILABLE) This part replaces 91206-969-003.

91206-969-005

Unavailable

23

OIL SEAL (22X58X6) (NOK) (NOT AVAILABLE) | Use from Engine SN 6088751

91206-969-005

Unavailable

24

O-RING (75X2.5) | Use up to Engine SN 6061137

91301-107-000

$4.87

24

O-RING (72.5X2.2) | Use from Engine SN 6061138

91301-969-003

Unavailable

25

PIN A, DOWEL (8X14)

94301-08140

$2.25

26

PIN A, DOWEL (10X16)

94301-10160

$2.28

27

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

27

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

28

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

28

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

29

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

29

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

30

BEARING, RADIAL BALL (6302)

96100-63020-00

$8.91
