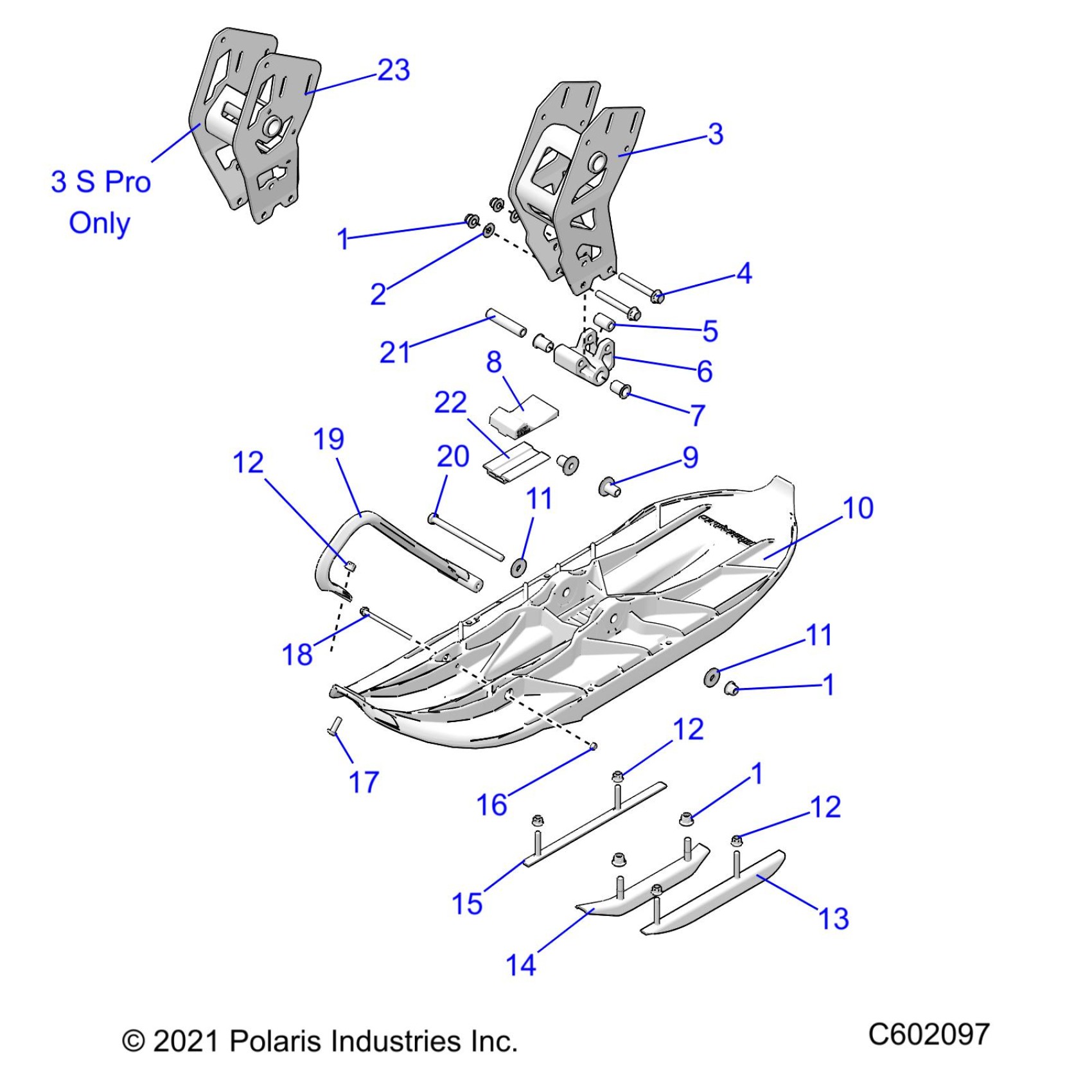

Polaris ARO/ARO 3/129/137 ALL OPTIONS (R03) - J22UKB/UKE/UMC/UMF/UMG/UMH/USB STEERING, SKI ASM. - J22UKB/UKE/UMC/UMF/UMG/UMH/USB ALL OPTIONS (C602097) Diagram

#

Description
Price

1

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

1

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

1

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

2

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

3

SPINDLE, LWT BLACK UMG,UKB,USB BLACK MODELS ONLY

1824637-458

Unavailable

3

SPINDLE, LWT RED UMCXXXR MODEL ONLY

1824637-293

Unavailable

3

SPINDLE-LWT ORNGBST UMCXXXK MODEL ONLY

1824637-647

Unavailable

4

SCR-HXFL-M10X1.5X80 10.9 ZY3

7519143

$10.39

5

SPACER-SPINDLE BLOCK CENTER

5141778

Unavailable

6

ASM-BLOCK SPINDLE WIDE [INCL. 7]

1830003

Unavailable

7

BUSHING-SKI PIVOT

5438460

$15.99

8

STOP-SKI RUBBER WIDE TSLD

5417309

Unavailable

9

BUSHING-PLASTIC SKI METRIC

5136908

$15.99

10

ASM-SKI, 11.5 WIDE HD, BLK [INCL. 9]

1824847-070

Unavailable

11

WASHER-.406X1.25X.125 BELLE-Y

7556130

$6.39

11

WASHER-.406X1.25X.125 BELLE-Y

7556130

$6.39

12

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

12

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

12

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

13

SKAG-LH HARD ECOAT

1824919-329

Unavailable

14

SKAG-CENTER FORMED E-COAT

1825004-329

Unavailable

15

SKAG-RH HARD ECOAT

1824920-329

Unavailable

16

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

17

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

18

SCR-HXFL-M6X1.0X105 8.8 ZOD

7520233

$6.39

19

TOE-PLASTIC SKI,BLK [BLACK COLOR OPTION]

5435681-070

$40.46

19

TOE-PLASTIC SKI,BRIGHT WHT [WHITE COLOR OPTION]

5435681-133

$44.51

19

TOE-PLASTIC SKI,RED [RED COLOR OPTION]

5435681-293

$40.46

19

TOE, PLASTIC SKI, ORANGE BURST [ORANGE COLOR OPTION]

5435681-647

$34.99

20

SCR-HH M10X1.5X155 8.8 ZOD

7519098

$12.79

21

BUSHING-15.88X10.13X76.20

5136910

$7.99

22

BRKT-SUPPORT SKI RUBBER

5143604

Unavailable

23

WELD-SPINDLE LOW WHT UMFXXXW MODEL ONLY

1824944-133

Unavailable

23

WELD-SPINDLE LOW RED UMFXXXR MODEL ONLY

1824944-293

Unavailable

23

WELD-SPINDLE LOW BLK UKE,UMF,UMH BLACK MODELS ONLY

1824944-458

Unavailable

23

WELD-SPINDLE LOW ORGBST UMFXXXK MODEL ONLY

1824944-647

Unavailable
