- ARO 129/129LE/137/137LE ALL OPTIONS (R01) - J21UKB/UKC/UKE/USB/USC/UMC/UMG
DRIVE TRAIN, JACKSHAFT AND BRAKE DISC - J21UKB/UKC/UKE/USB/USC/UMC/UMG ALL OPTIONS (600655)

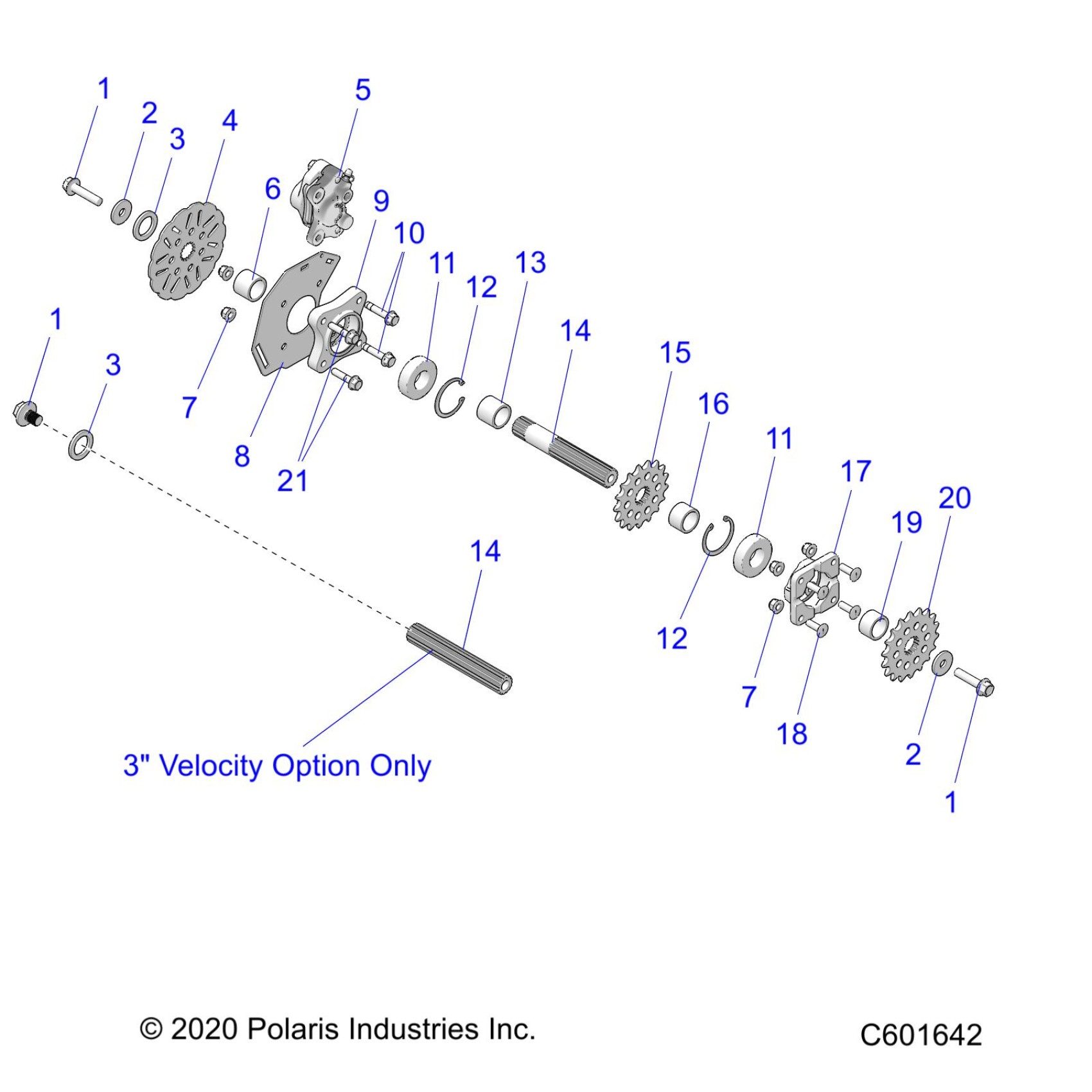

Polaris ARO 129/129LE/137/137LE ALL OPTIONS (R01) - J21UKB/UKC/UKE/USB/USC/UMC/UMG DRIVE TRAIN, JACKSHAFT AND BRAKE DISC - J21UKB/UKC/UKE/USB/USC/UMC/UMG ALL OPTIONS (600655) Diagram
#
1
SCR-HXFL-M10X1.25X45 ZOD P30 [QTY. 1, 3" VELOCITY OPTION]
7520187
$3.99
1
SCR-HXFL M14X1.5X20 7075 ALU [3" VELOCITY OPTION ONLY]
7521295
Unavailable
1
SCR-HXFL-M10X1.25X45 ZOD P30 [QTY. 1, 3" VELOCITY OPTION]
7520187
$3.99
1
SCR-HXFL M14X1.5X20 7075 ALU [3" VELOCITY OPTION ONLY]
7521295
Unavailable
1
SCR-HXFL-M10X1.25X45 ZOD P30 [QTY. 1, 3" VELOCITY OPTION]
7520187
$3.99
1
SCR-HXFL M14X1.5X20 7075 ALU [3" VELOCITY OPTION ONLY]
7521295
Unavailable
2
WSHR-10.5X31.8X3.43 ZOD HRD [QTY. 1, 3" VELOCITY OPTION]
7556800
$7.19
2
WSHR-10.5X31.8X3.43 ZOD HRD [QTY. 1, 3" VELOCITY OPTION]
7556800
$7.19
3
BUSHING-1X1 1/2X .145
7556162
$3.99
3
BUSHING-1X1 1/2X .145
7556162
$3.99
4
DISC-BRAKE SPLINED
1913425
Unavailable
5
BRAKE CALIPER [SEE BRAKES, BRAKE SYSTEM]
-------
Unavailable
6
TUBE-SPACER BRAKE NO HUB
5142620
Unavailable
7
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
7
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
8
BRKT-SUPPORT BRAKE COVER BLK
5267201-458
Unavailable
9
ASM-BEARING FRAME SINGLE [INCL. 11,12]
1523594
Unavailable
10
SCR-HXFL-M8X1.25X40 8.8 ZODP30
7519267
$3.99
11
BEARING
3514308
Unavailable
11
BEARING
3514308
Unavailable
12
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
12
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
13
TUBE-SPACER RH FRAME
5142621
Unavailable
14
JACKSHAFT-11.5 WIDE 1144 CF
6231116
Unavailable
14
JACKSHAFT-11.5" HOLLOW [3" VELOCITY OPTION ONLY]
6231142
Unavailable
14
JACKSHAFT-11.5 WIDE 1144 CF
6231116
Unavailable
14
JACKSHAFT-11.5" HOLLOW [3" VELOCITY OPTION ONLY]
6231142
Unavailable
15
SPROCKET-17T 520 SLW HD
3222362
Unavailable
15
SPROCKET-SPLINED 16T 520 [OPTION]
3222291
Unavailable
15
SPROCKET-18T 520 SLW HD [OPTION]
3222363
Unavailable
16
TUBE-SPACER CENTER
5141033
Unavailable
17
ASM-BEARING SNGL THRU HOLES [INCL. 11,12,AND HOUSING]
1523108
Unavailable
18
SCR-RHCAR-M8X1.25X25 8.8 ZOD
7520297
$4.99
19
TUBE-SPACER LH
5141032
Unavailable
20
SPROCKET-18T 520 SLW HD
3222363
Unavailable
20
SPROCKET-SPLINED 16T 520 [OPTION]
3222291
Unavailable
20
SPROCKET-17T 520 SLW HD [OPTION][STOCK FOR 3" TRCK OPTION]
3222362
Unavailable
21
SCR-HXFL-M8X1.25X35 8.8 ZOD
7519052
$1.59
