- ARO 120/120SX/129/137 ALL OPTIONS (R03) - J19URB/URC/USB/USC/URL/UKC
SUSPENSION, SHOCK, REAR (SX) - J19URLXXXA (600928)

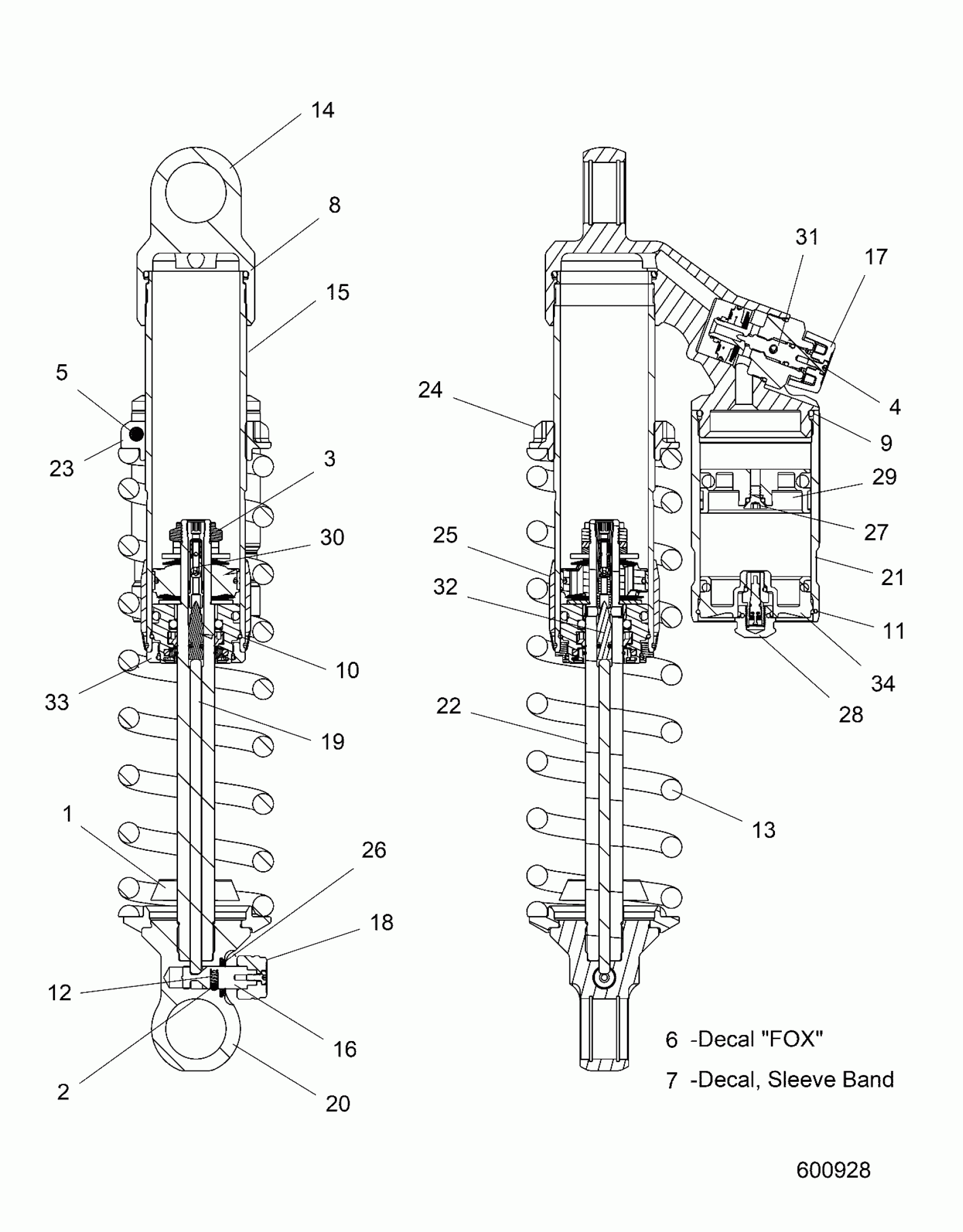

Polaris ARO 120/120SX/129/137 ALL OPTIONS (R03) - J19URB/URC/USB/USC/URL/UKC SUSPENSION, SHOCK, REAR (SX) - J19URLXXXA (600928) Diagram
#
Description
Price
-
SHOCK-FOX SX CLICKER REAR
7061260
Unavailable
-
K-REBUILD, O-RING, SEALS
-------
Unavailable
1
BUMPER-.40 TLG
1500348
Unavailable
2
BALL-AIR VALVE
1500724
$12.79
3
NUT-LOCK
1500842
Unavailable
4
SCREW-#4-40x1/4
1501011
$13.59
5
SCREW-M5x.8x18MM SOC CP
1501238
Unavailable
6
DECAL-RES. FOX
1501330
Unavailable
7
DECAL-BAND
1501331
Unavailable
8
O-RING-129
1500108
$10.99
9
O-RING,.103W-1.737ID
1500623
$6.39
10
RING-RETAINING, WIRE
1500097
$4.79
11
RING-RETAINING, WIRE 2.050
1501015
$9.59
12
SPRING-MUSIC WIRE
1501332
Unavailable
13
SPRING-8", 198.9LB, BLK
1501333
Unavailable
14
BODY CAP-2.3" DROP RES.
1501241
Unavailable
15
BODY-1.459-6.30 TLG
1501338
Unavailable
16
KNOB-POST, SS
1501339
Unavailable
17
KNOB-LOW SPEED
1501019
$10.39
18
KNOB-REBOUND, BLK ANO
1501334
Unavailable
19
ROD-METERING
1501335
Unavailable
20
EYELET-SHAFT
1501336
Unavailable
21
RESERVOIR, BLK
1501109
$111.33
22
SHAFT-.62x7.3TLG
1501337
Unavailable
23
RING-PRELOAD
1501244
Unavailable
24
RETAINER-SPRING
1501245
$34.99
25
SPRING GUIDE
1500930
$39.99
26
PLUG-REB ADJ
1501340
Unavailable
27
ASM-SCREW, BLK
1501341
$44.99
28
ASM-PISTON, FLOATING
1501342
Unavailable
29
ASM-BEARING
1501343
Unavailable
30
ADJUSTER-LCS
1501344
Unavailable
31
ASM-ADJUSTER, LCS
1501345
Unavailable
32
NEEDLE-PARABOLIC
1501346
Unavailable
33
ASM-BRNG CAP W/RING
1501113
$49.99
34
ASM-RES END CAP
1501347
Unavailable
