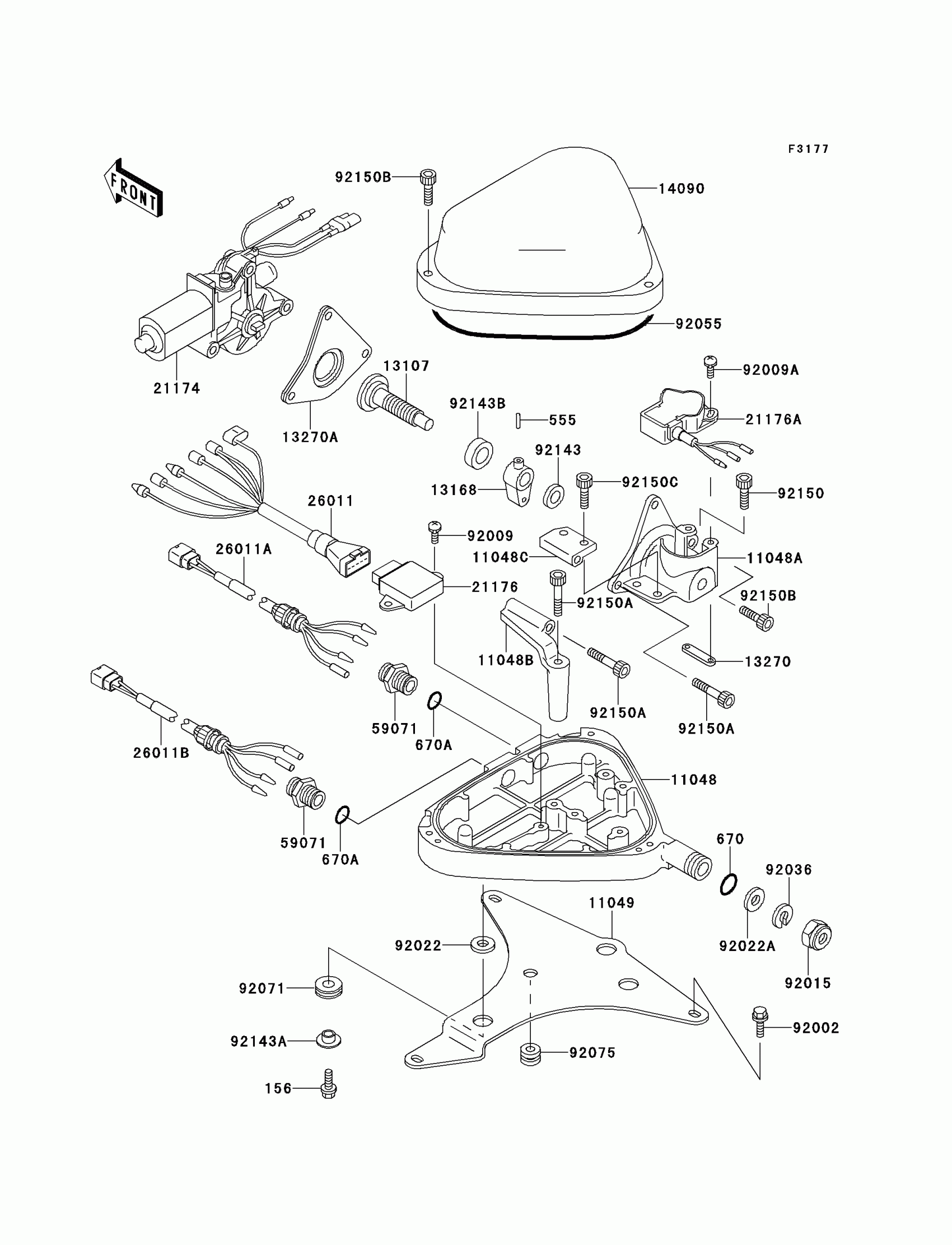

Kawasaki 900 ZXi Control(JH900-A1) Diagram
#
156
BOLT-WP,6X22
156R0622
$4.09
555
PIN-SPRING,3X14
555B0314
$4.67
670
O RING,11MM
670B2011
$1.28
670A
O RING,16MM
670B2016
$1.36
11048
BRACKET,MOTOR BOX,LWR
11048-3737
Unavailable
11048A
BRACKET,MOTOR MOUNT
11048-3738
$79.17
11048B
BRACKET
11048-3753
Unavailable
11048C
BRACKET
11048-3754
Unavailable
11049
BRACKET,TILT BOX
11049-3712
Unavailable
13107
SHAFT
13107-3735
Unavailable
13168
LEVER,SLIDE
13168-3724
Unavailable
13270
PLATE,TRIM SENSOR
13270-3744
$7.33
13270A
PLATE,MOTOR MOUNT
13270-3750
Unavailable
14090
COVER,MOTOR BOX,UPP
14090-3739
$151.11
21174
MOTOR-ELECTRIC
21174-3702
$684.59
21176
SENSOR,MOTOR CONTROL
21176-3701
$302.42
21176A
SENSOR,TRIM METER
21176-3705
Unavailable
26011
WIRE-LEAD,MOTOR CONTROL
26011-3809
Unavailable
26011A
WIRE-LEAD,TRIM SWITCH
26011-3823
Unavailable
26011B
WIRE-LEAD,TRIM METER
26011-3824
$87.20
59071
JOINT
59071-3001
$6.29
92002
BOLT,6X16
92002-3728
$4.69
92009
SCREW,5X12
92009-3740
$4.18
92009A
SCREW,4X12
92009-3807
$4.97
92015
NUT,20MM
92015-526
$29.72
92022
WASHER,6.2X20X2
92022-3714
$4.18
92022A
WASHER
92022-535
$7.34
92036
RING-SNAP
92036-501
Unavailable
92055
RING-O,ID=171
92055-3737
$13.43
92071
GROMMET
92071-3737
$5.54
92075
DAMPER
92075-1435
$6.45
92143
COLLAR
92143-3744
Unavailable
92143A
COLLAR
92143-3749
$5.23
92143B
COLLAR,14.3X24.5X8
92143-3751
Unavailable
92150
BOLT,SOCKET,6X18
92150-3775
$4.69
92150A
BOLT,SOCKET,6X65
92150-3821
$4.22
92150B
BOLT,SOCKET,6X30
92150-3822
$4.31
92150C
BOLT,SOCKET,6X25
92150-3823
$4.40
