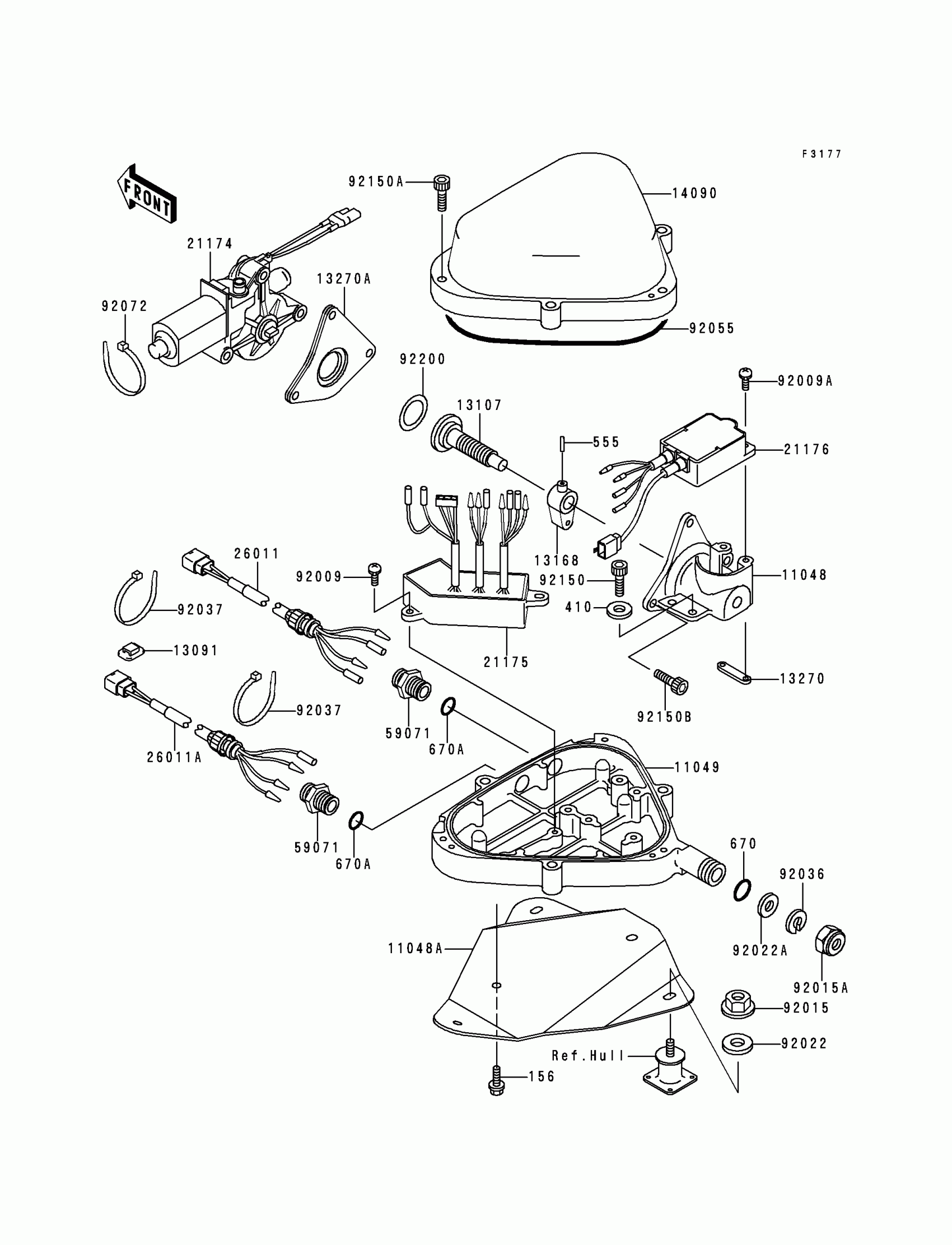

Kawasaki 900 STX Control Diagram
#
Description
Price
156
BOLT-WP,6X14
156R0614
$3.90
410
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
555
PIN-SPRING,3X14
555B0314
$4.67
670
O RING,11MM
670B2011
$1.28
670A
O RING,16MM
670B2016
$1.36
11048
BRACKET,MOTOR MOUNT
11048-3738
$79.17
11048A
BRACKET
11048-3742
Unavailable
11049
BRACKET,MOTOR BOX,LWR
11049-3715
Unavailable
13091
HOLDER,BAND
13091-3764
$5.17
13107
SHAFT
13107-3749
Unavailable
13168
LEVER,SLIDE
13168-3724
Unavailable
13270
PLATE,TRIM SENSOR
13270-3744
$7.33
13270A
PLATE,MOTOR MOUNT
13270-3822
$33.84
14090
COVER,MOTOR BOX,UPP
14090-3768
$172.03
21174
MOTOR-ELECTRIC
21174-3703
$607.83
21175
CONTROL UNIT-ELECTRONIC
21175-3707
$494.57
21176
SENSOR,TRIM METER
21176-3723
Unavailable
26011
WIRE-LEAD,TRIM SWITCH
26011-3823
Unavailable
26011A
WIRE-LEAD,TRIM METER
26011-3831
Unavailable
59071
JOINT
59071-3001
$6.29
92009
SCREW,5X12
92009-3740
$4.18
92009A
SCREW,4X12
92009-3807
$4.97
92015
NUT,6MM
92015-3767
$4.69
92015A
NUT,20MM
92015-526
$29.72
92022
WASHER,6.5X20X1.5
92022-3710
$3.65
92022A
WASHER
92022-535
$7.34
92036
RING-SNAP
92036-501
Unavailable
92037
CLAMP
92037-1173
$3.49
92055
RING-O,ID=171
92055-3737
$13.43
92072
BAND,L=201
92072-3778
$1.84
92150
BOLT,SOCKET,6X18
92150-3775
$4.69
92150A
BOLT,SOCKET,6X30
92150-3822
$4.31
92150B
BOLT,SOCKET,6X25
92150-3823
$4.40
92200
WASHER,22.5X32X1
92200-3742
Unavailable
