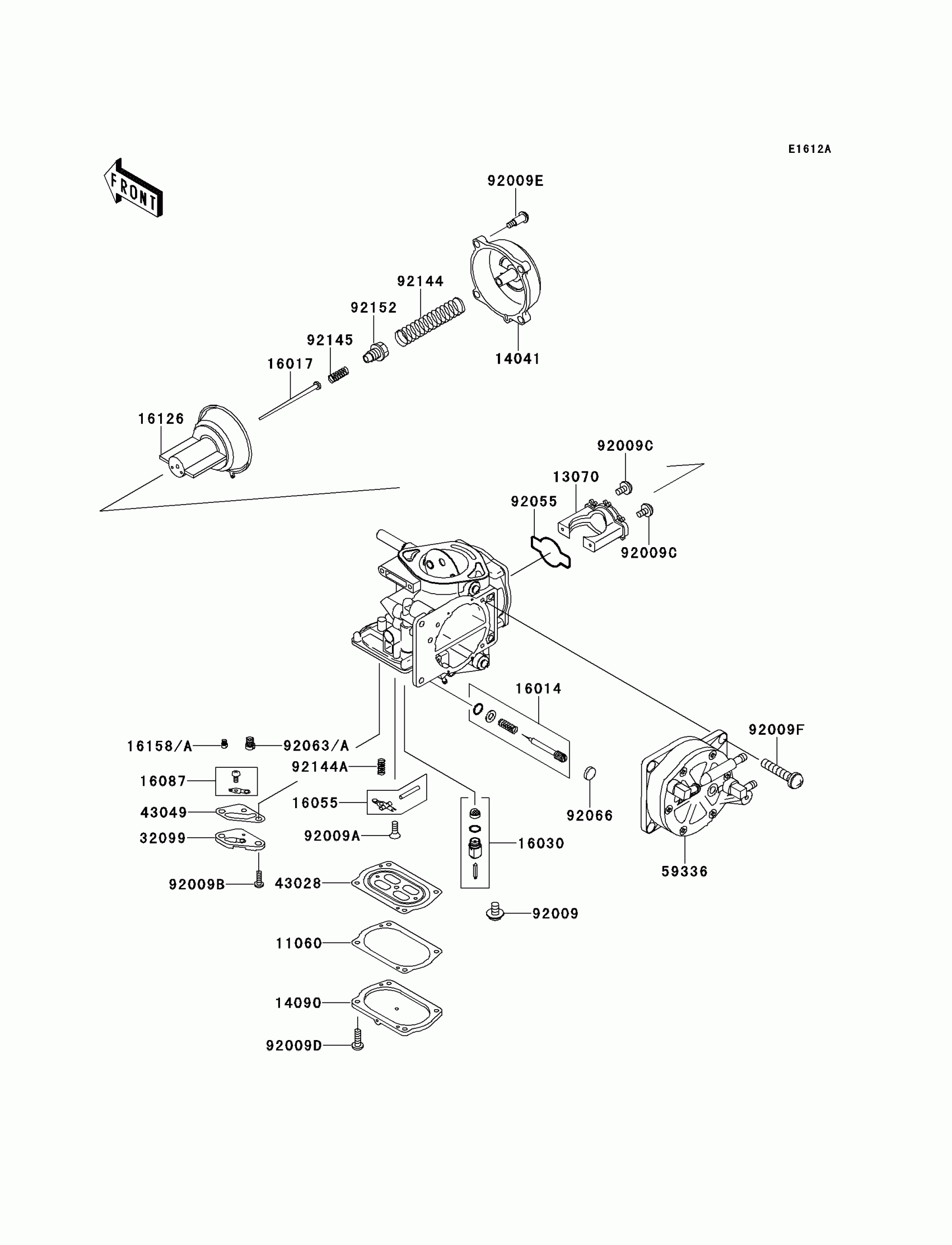

Kawasaki 900 STX Carburetor Parts(JT900-B2) Diagram
#
Description
Price
11060
GASKET,DIAPHRAGM COVER
11060-3789
$12.94
13070
GUIDE,VACUUM VALVE
13070-3726
$41.69
14041
COVER-COMP,MIXING
14041-1100
$86.95
14090
COVER,DIAPHRAGM
14090-3816
$35.87
16014
SCREW-PILOT AIR
16014-3702
$45.34
16017
JET-NEEDLE,N7FB
16017-3704
$43.19
16030
VALVE-FLOAT
16030-3704
$52.50
16055
ARM-FLOAT
16055-3702
$48.36
16087
VALVE-CHECK
16087-3706
$32.52
16126
VALVE,VACUUM
16126-3706
$217.49
16158
JET-SLOW,#38
16158-3722
$25.69
16158A
JET-SLOW,#35
16158-3726
$24.77
32099
CASE,JET
32099-3833
$43.92
43028
DIAPHRAGM,CARBURETOR
43028-3711
$89.55
43049
PACKING,JET CASE
43049-3713
$10.51
59336
CASE-PUMP,DIAPHRAGM
59336-3718
$178.80
92009
SCREW
92009-1771
$6.61
92009A
SCREW,3X8
92009-3712
$2.38
92009B
SCREW,4X8
92009-3804
$5.23
92009C
SCREW,VALVE GUIDE
92009-3839
$9.47
92009D
SCREW,DIAPHRAGM COVER
92009-3840
$2.97
92009E
SCREW,MIXING COVER
92009-3841
$3.69
92009F
SCREW,6X16
92009-3865
$5.00
92055
RING-O,VACUUM VALVE GUIDE
92055-3749
$6.38
92063
JET-MAIN,#165
92063-3720
$22.93
92063A
JET-MAIN,#155
92063-3723
$19.72
92066
PLUG,PILOT AIR SCREW
92066-3769
$4.28
92144
SPRING,VACUUM VALVE
92144-1962
$25.81
92144A
SPRING,FLOAT ARM
92144-3764
$10.19
92145
SPRING,JET NEEDLE
92145-3707
$9.32
92152
COLLAR,JET NEEDLE
92152-3706
$27.16
