- 850 RUSH PRO-S SC SELECT (R01) - S20DCH8RS
CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S20DCH8RS ALL OPTIONS (C601445)

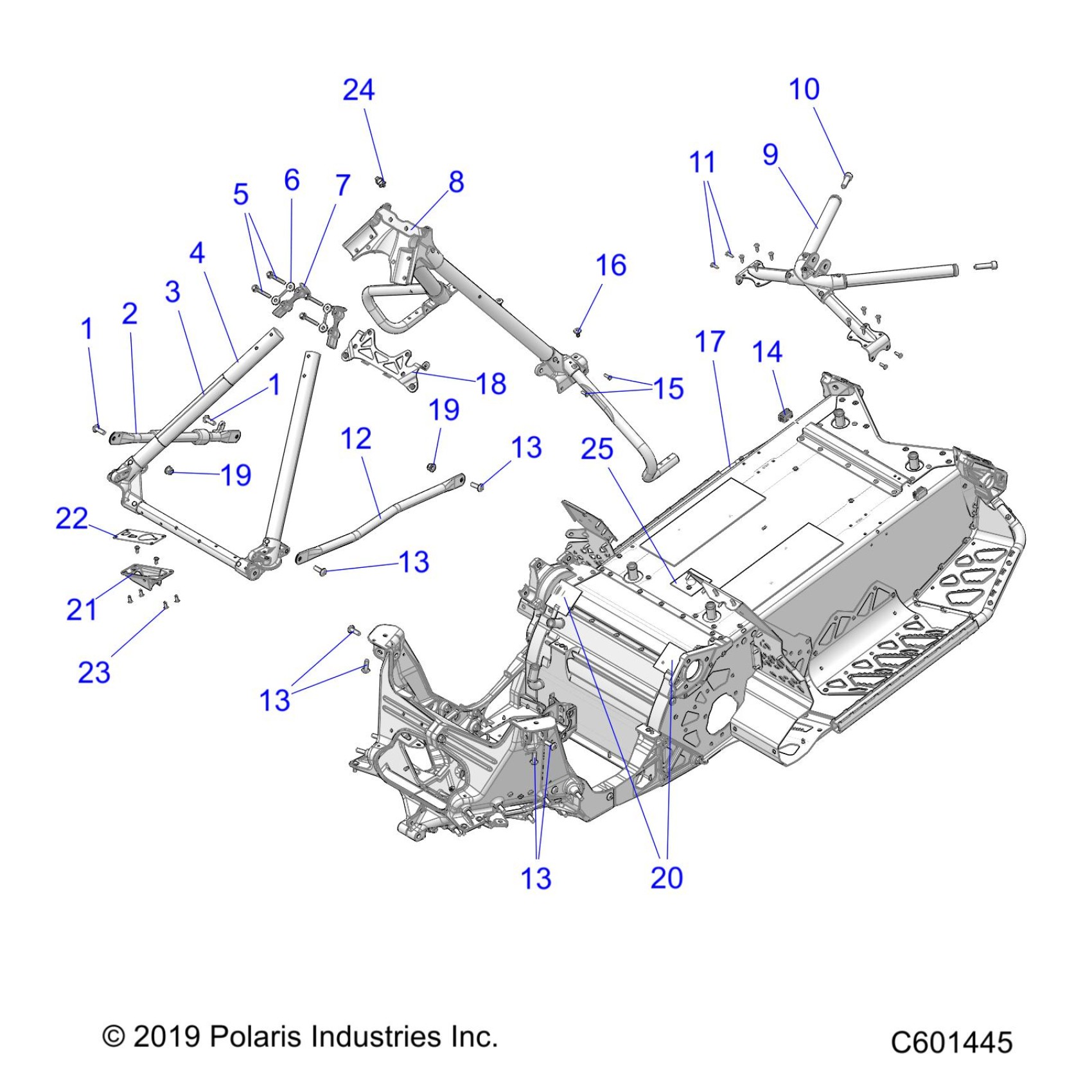

Polaris 850 RUSH PRO-S SC SELECT (R01) - S20DCH8RS CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S20DCH8RS ALL OPTIONS (C601445) Diagram
#
Description
Price
1
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
1
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
2
BRACE TUBE, RH, BLK
1024086-067
$44.99
3
FOIL-100MM X 200MM
5814124
$8.99
4
ASM., FRAME, TUBULAR, FRONT CF
1023852
$374.99
5
SCR-HXFL-M6X1X60 10.9 ZOD P30
7520723
$4.99
6
SHIM, TUBE CAST
5633083
$6.99
7
SPACER, TUBE CAST
5632923
$9.99
8
ASM., TUBE FRAME, REAR
1023209
$754.99
9
ASM., R/T SHOCK MOUNT 120, MBLK
1021433-458
$199.99
10
SCR-SH-M10X1.5X35 DP ZOD P80
7519102
$6.39
11
RIVET-3/16-.090-.290
7661637
$1.49
12
TUBE-BRACE LH BLK
5337391-329
$34.99
13
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
13
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
13
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
13
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
14
PLUG, TUNNEL SUPPORT
5439145
$3.99
15
RIVET-3/16-.214-.420
7661130
$1.49
16
SCR-TXTH-M6X1.0X15 8.8 P80 ZOD
7520147
$3.99
17
ASM-CHASSIS 850 120PRG GHSTGRY [SNOW CHECK SELECT]
1024790-728
$2,059.99
17
ASM-CHASSIS 850 120PRG ISKYBLU [SNOW CHECK SELECT]
1024790-737
$2,059.99
17
ASM-CHASSIS 850 120 PROG RED [SNOW CHECK SELECT]
1024790-293
$2,059.99
17
ASM-CHASSIS 850 120PRG MDNTBLU [SNOW CHECK SELECT]
1024790-485
$2,059.99
17
ASM-CHASSIS 850 120 PROG BLK [SNOW CHECK SELECT]
1024790-067
Unavailable
17
ASM-CHASSIS 850 120PROG NT/BLK [SNOW CHECK SELECT]
1024790-1142
$2,059.99
18
ASM-REGULATOR MOUNT
1024479
$36.41
19
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
19
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
20
PAD, 2.5"X2.5"
5814187
$4.03
21
MOUNT-LOAD CENTER
5454789
$9.70
22
BRKT-LOAD CENTER
5265340
$4.84
23
RIVET-4.8MM DIA-1.5-6.0 GRIP
7661973
$1.49
24
CABLE-TIE,DIA2.5-34MM,FIR-TREE
7082003
$3.19
25
PAD-40X63.5
5814353
$9.70
