- 850 INDY 129 XCR SC SELECT (R03) - S20EKL8RS
CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S20EKL8RS ALL OPTIONS (C601352)

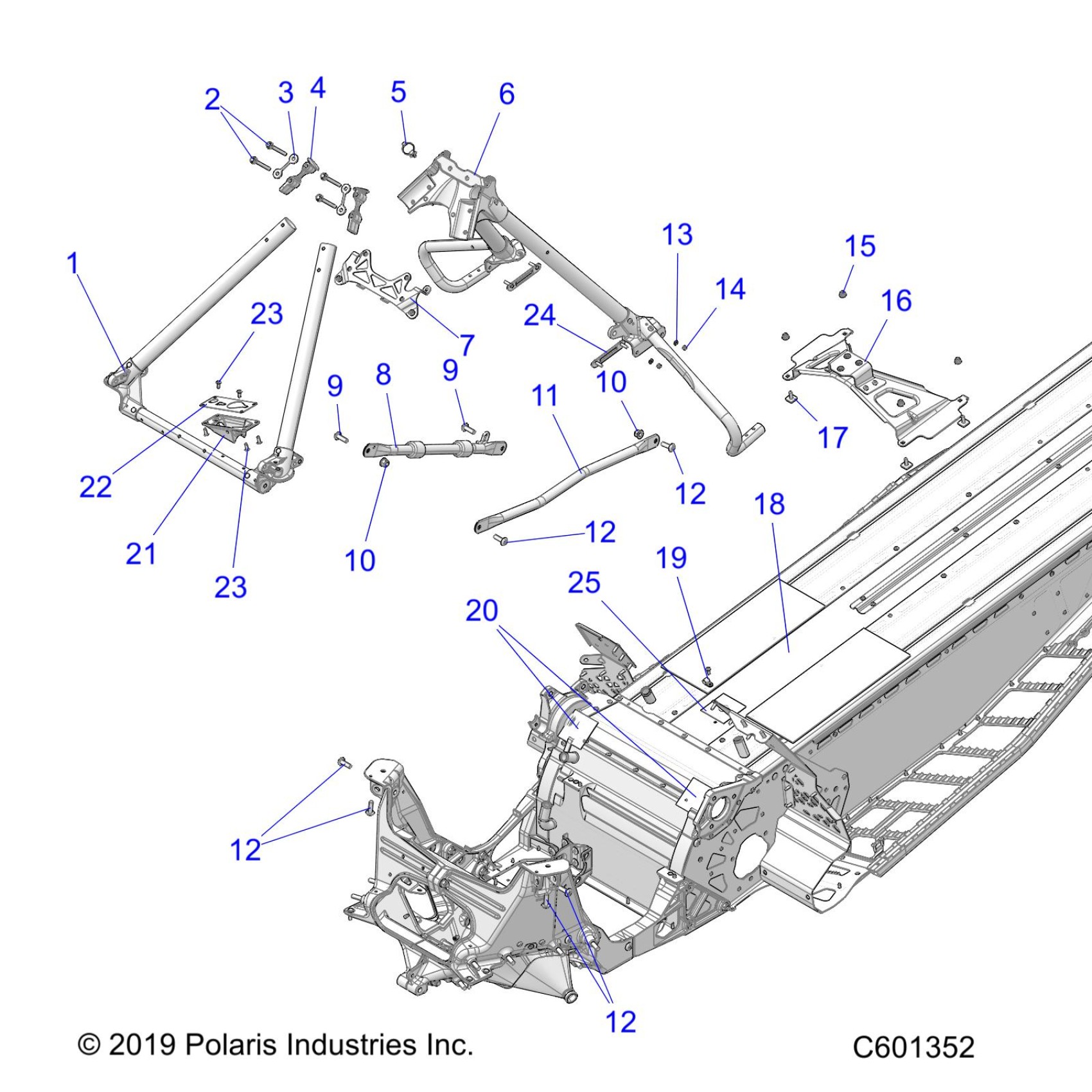

Polaris 850 INDY 129 XCR SC SELECT (R03) - S20EKL8RS CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S20EKL8RS ALL OPTIONS (C601352) Diagram
#
Description
Price
1
ASM-FRAME TUBULAR FRONT ALUM [INCL. FOIL]
1024164
$149.99
2
SCR-HXFL-M6X1X60 10.9 ZOD P30
7520723
$4.99
3
SHIM-TUBE CAST 31.76 DIA
5633083
$6.99
4
SPACER-TUBE CAST 27.00 DIA
5633122
$9.59
5
CABLE-TIE,DIA2.5-34MM,FIR-TREE
7082003
$3.19
6
ASM., TUBE FRAME, REAR
1023206
$319.99
7
ASM-REGULATOR MOUNT
1024479
$36.41
8
CROSS BRACE BLK
1024086-067
$44.99
9
SCREW-TXTR
7518906
$3.19
9
SCREW-TXTR
7518906
$3.19
10
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
10
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
11
TUBE-BRACE LH BLK
5337391-329
$34.99
12
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
12
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
12
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
12
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
13
WSHR-5.3X10X1 ZB
7556071
$4.79
14
NUT-M5X.8,HX NYL-Y
7546601
$1.49
15
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$3.99
16
BRACKET, FUEL TANK, MBLK
1021376-458
$111.33
17
SCR-SPCL M6X1.0X16 8.8 ZC
7520514
$3.99
18
ASM-TUNNEL 129 BLK [INCL. TUNNEL COOLER]
1024852-067
$1,534.99
18
ASM-TUNNEL 129 RED [INCL. TUNNEL COOLER]
1024852-293
Unavailable
18
ASM-TUNNEL 129 GHOST GRAY [INCL. TUNNEL COOLER]
1024852-728
Unavailable
18
ASM-CHASSIS 850 129 BLK [INCL. BULKHEAD]
1024856-067
$2,059.99
18
ASM-CHASSIS 850 129 RED [INCL. BULKHEAD]
1024856-293
$2,059.99
18
ASM-CHASSIS 850 129 GHOST GRAY [INCL. BULKHEAD]
1024856-728
$2,059.99
19
CLAMP-CABLE,NYLON,5/16"
7080960
$4.79
19
RIVET-4.8MM DIA-1.5-6.0GRIP BK
7662251
$2.49
20
PAD, 2.5"X2.5"
5814187
$4.03
21
MOUNT-LOAD CENTER
5454789
$9.70
22
BRKT-LOAD CENTER
5265340
$4.84
23
RIVET-4.8MM DIA-1.5-6.0 GRIP
7661973
$1.49
23
RIVET-4.8MM DIA-1.5-6.0 GRIP
7661973
$1.49
24
ASM-STUD PLATE 5MM
1023672
$12.79
25
PAD-40X63.5
5814353
$9.70
