- 850 AXYS PRO RMK 174 3" SC SELECT (R02) - S20EHM8RS
CHASSIS, BULKHEAD ASM. - S20EHM8RS ALL OPTIONS (601005C)

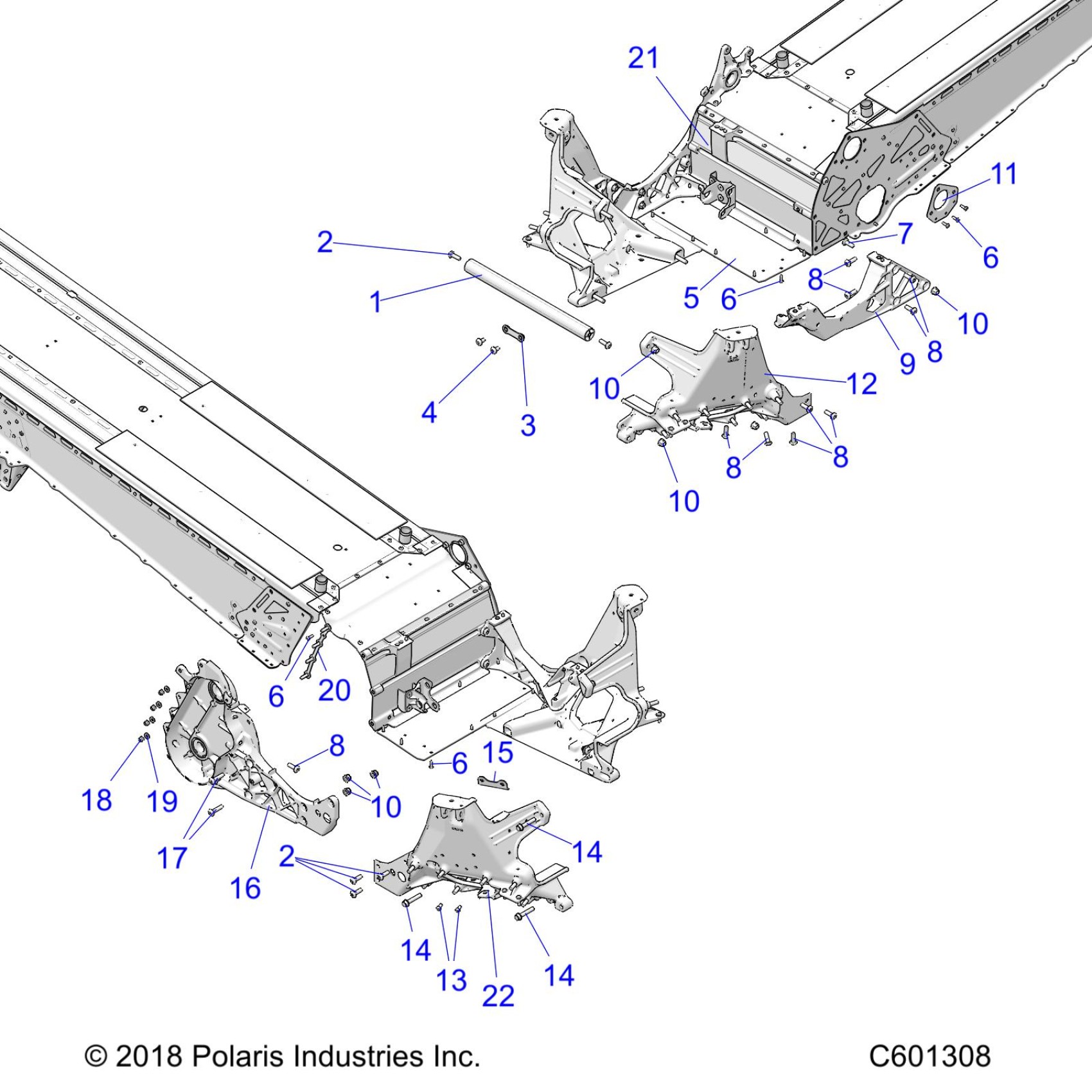

Polaris 850 AXYS PRO RMK 174 3" SC SELECT (R02) - S20EHM8RS CHASSIS, BULKHEAD ASM. - S20EHM8RS ALL OPTIONS (601005C) Diagram
#
Description
Price
-
KIT, LORD, 406, 50 ML CARTRIDGE [ADHESIVE]
2204400
$74.99
-
KIT, LORD, 406 REPAIR KIT, 50 ML [ADHESIVE]
2204171
$294.99
-
KIT, LORD, MIX NOZZLES, 12 PIECE
2204172
$4.99
1
TUBE-CROSSOVER, EXTRUDED
5140781
$106.49
2
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
2
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
3
ASM-NUT PLATE M8 47MM
1020829
$15.99
4
SCR-TXTH-M8X1.25X15 8.8ZOD P80
7519109
$1.59
5
FLOOR, BULKHEAD
5256849
$29.03
6
RIVET-3/16-.090-.290
7661637
Unavailable
6
RIVET-3/16-.090-.290
7661637
Unavailable
6
RIVET-3/16-.090-.290
7661637
Unavailable
6
RIVET-3/16-.090-.290
7661637
Unavailable
7
SCR-RHCAR-M8X1.25X25 8.8 ZOD
7520297
$4.99
8
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
8
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
8
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
8
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
8
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
9
ASM., BRACE, LOWER, LH [REQUIRES ADHESIVE][INCL. DOWEL PINS]
1023784
$139.99
9
PIN-DOWEL,M6X10
5136879
Unavailable
10
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
10
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
10
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
10
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
11
FLANGETTE-3BOLT 0MM OFFSET
5258020
$12.79
12
ASM., CLIP W/STUD RMK LH [INCL. STUDS][REQUIRES ADHESIVE]
1023155
$354.99
12
STUD
7519204
$19.99
13
SCR-TXPH-M6X1.0X15 GR5 ZOD NYL
7518656
$3.99
14
SCR-M8X1.25X45-HX/FL-Y
7516732
$1.59
14
SCR-M8X1.25X45-HX/FL-Y
7516732
$1.59
14
SCR-M8X1.25X45-HX/FL-Y
7516732
$1.59
15
ASM., BRKT., IDLER, TOP
1019666
$28.32
16
ASM-CHAINCASE,INTERMD,RMK [REQUIRES ADHESIVE][INCL. BRNGS., SEALS]
1333255
$319.99
17
SCR-TXTH M8X1.25X35 8.8ZOD P80
7519049
$7.19
18
NUT-HEX-M6X1.0 8 ZOD NYL
7547505
$2.39
19
WASHER
7556588
$2.39
20
ASM., STUD PLATE
1020066
$16.99
21
ASM-CLOSEOFF BULKHEAD
1023782
$147.60
21
PIN-DOWEL,M6X10
5132835
$2.39
22
ASM-CLIP W/STUD RH [INCL. STUDS][REQUIRES ADHESIVE]
1023783
$319.99
22
STUD
7519204
$19.99
