- 800 SWITCHBACK PRO-X SC SELECT (R01) - S18DDJ8PS
CHASSIS, BULKHEAD ASM. - S18DDJ8PS ALL OPTIONS (600762)

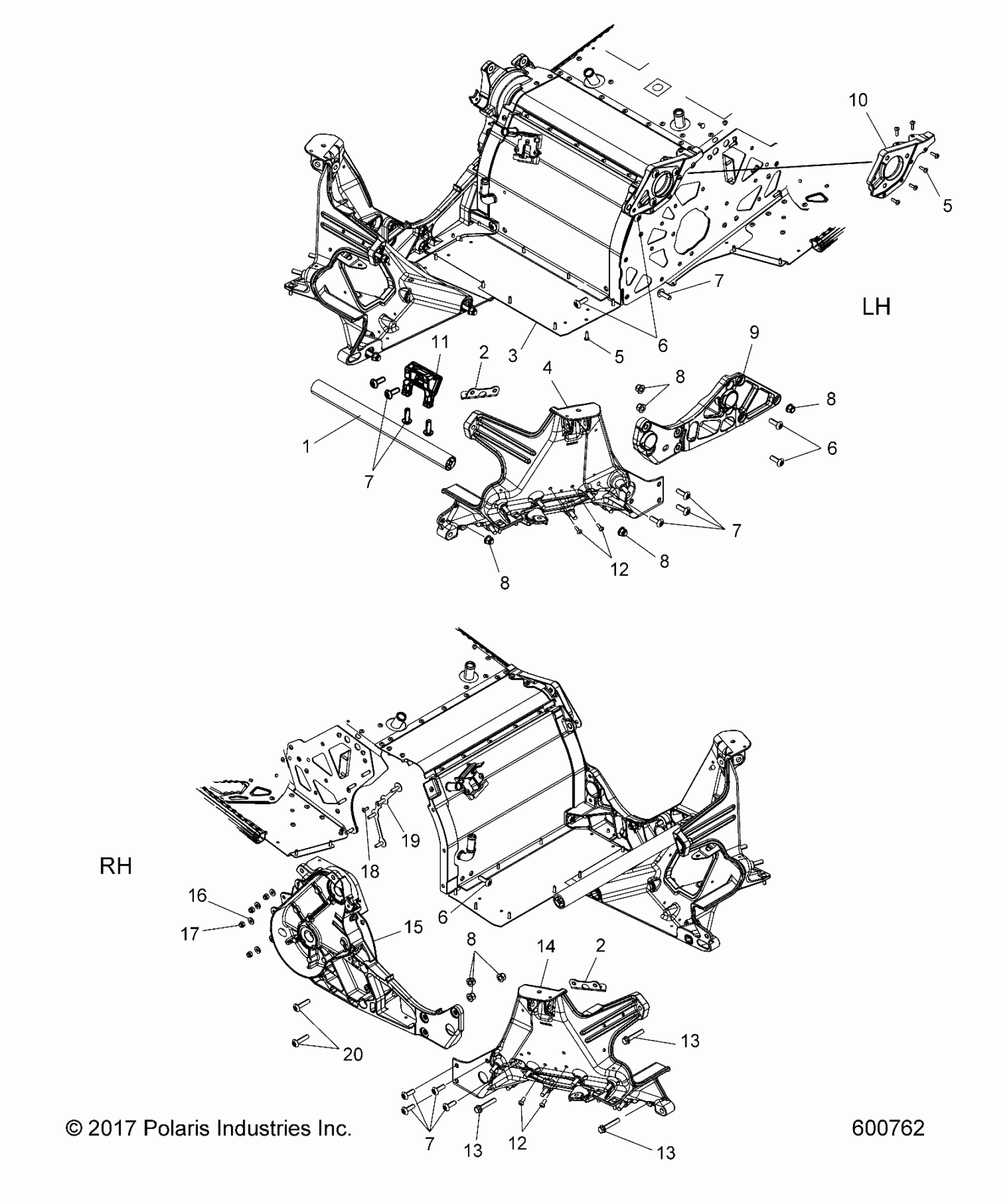

Polaris 800 SWITCHBACK PRO-X SC SELECT (R01) - S18DDJ8PS CHASSIS, BULKHEAD ASM. - S18DDJ8PS ALL OPTIONS (600762) Diagram
#
Description
Price
-
KIT, LORD, 406 REPAIR KIT, 50 ML [ADHESIVE]
2204171
$294.99
-
KIT, LORD, 406, 50 ML CARTRIDGE [ADHESIVE]
2204400
$74.99
-
KIT, LORD, MIX NOZZLES, 12 PIECE
2204172
$4.99
1
TUBE-CROSSOVER, EXTRUDED
5140781
$106.49
2
ASM., BRKT., IDLER, TOP
1019666
$28.32
2
ASM., BRKT., IDLER, TOP
1019666
$28.32
3
FLOOR, BULKHEAD
5256849
$29.03
4
STUD
7519204
$19.99
4
ASM., CLIP W/STUD, LH [INCL. STUDS][REQUIRES ADHESIVE]
1019181
$329.99
5
RIVET-3/16-.090-.290
7661637
$1.49
5
RIVET-3/16-.090-.290
7661637
$1.49
6
SCREW
7518906
$3.19
6
SCREW
7518906
$3.19
6
SCREW
7518906
$3.19
7
SCREW
7519070
$6.39
7
SCREW
7519070
$6.39
7
SCREW
7519070
$6.39
7
SCREW
7519070
$6.39
8
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
8
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
8
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
8
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
8
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
9
ASM., BRACE, LOWER, LH [REQUIRES ADHESIVE][INCL. SLEEVE]
1019183
$139.99
10
MOUNT-JACKSHAFT BRG.
5139244
Unavailable
11
MOUNT, STEERING, LOWER
5138449
$16.99
12
SCREW
7518656
$3.99
12
SCREW
7518656
$3.99
13
SCREW
7516732
$1.59
13
SCREW
7516732
$1.59
13
SCREW
7516732
$1.59
14
STUD
7519204
$19.99
14
ASM., CLIP W/STUD, RH [INCL. STUDS][REQUIRES ADHESIVE]
1019182
$309.99
15
ASM-CHAINCASE INTERMD [REQUIRES ADHESIVE][INCL. BRNGS., SEALS]
1333119
$289.99
16
WASHER
7556588
$2.39
17
NUT
7547505
$2.39
18
RIVET
7661973
$1.49
19
ASM-STUD PLATE M6X4
1020927
$34.99
20
SCREW
7519049
$7.19
