- 800 SWITCHBACK ASSAULT ALL OPTIONS (R01) - S16CW8
SUSPENSION, RAIL MOUNTING - S16CW8 ALL OPTIONS (49SNOWSUSPRAIL13SBASLT)

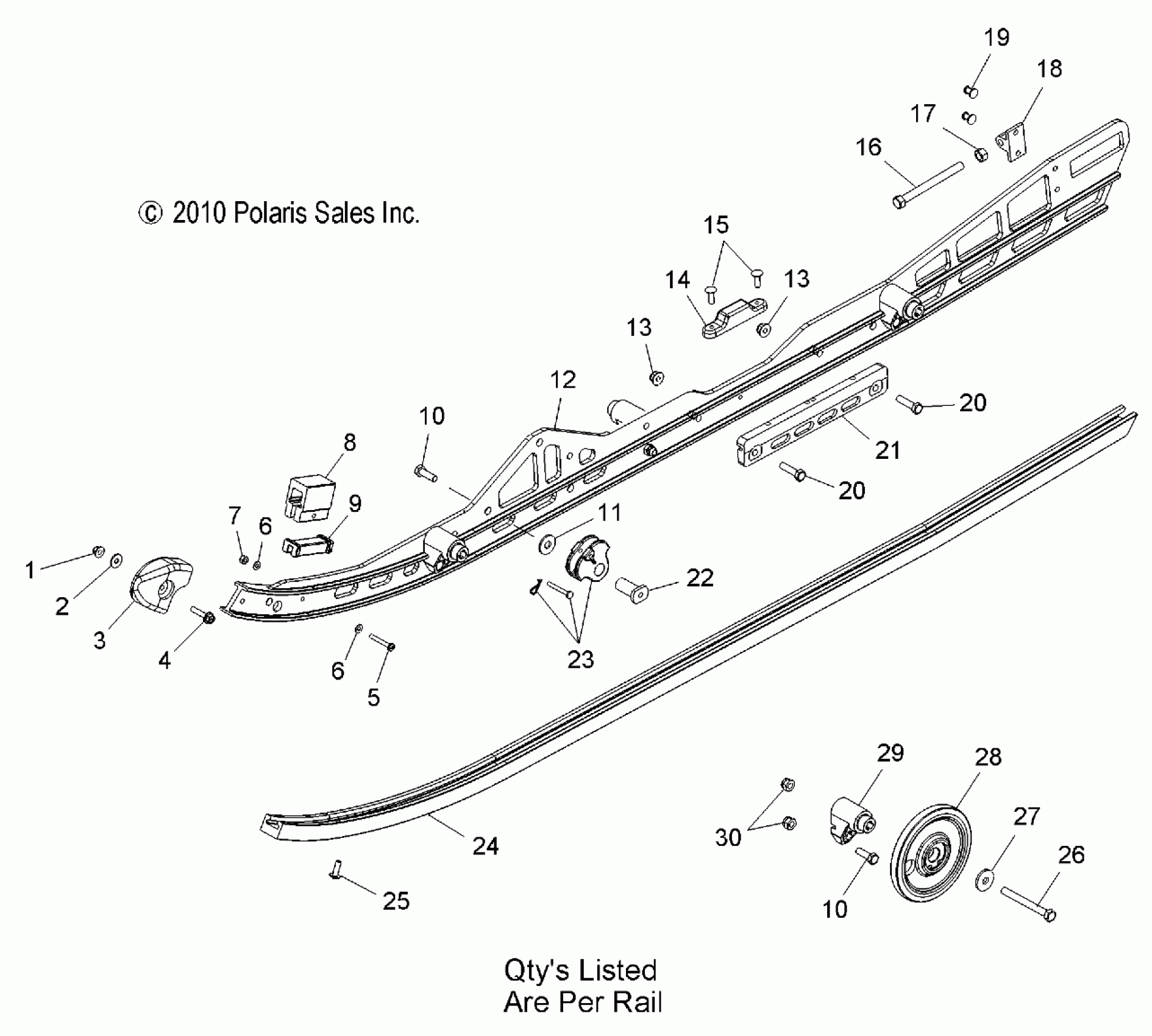

Polaris 800 SWITCHBACK ASSAULT ALL OPTIONS (R01) - S16CW8 SUSPENSION, RAIL MOUNTING - S16CW8 ALL OPTIONS (49SNOWSUSPRAIL13SBASLT) Diagram
#
1
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
2
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
3
CAP, RAIL TIP
5438374
$20.22
4
SCREW
7518993
$2.39
5
Screw
7510504
$6.76
6
Washer, Flat
7555783
$3.99
6
Washer, Flat
7555783
$3.99
7
Nut, Nylok
7541925
$1.49
8
BUMPER, JOUNCE, REAR
5521498
$8.89
9
LINER-BUMPER
5432946
$9.70
10
BOLT
7515317
$4.79
10
BOLT
7515317
$4.79
11
WASHER
7555983
Unavailable
12
ASM., RAIL, 144, RH, INDY RED [SNOW CHECK] [INCL. 13,18-21]
1543286-293
$564.99
12
ASM., RAIL, 144, LH, VOODOO BLUE [SNOW CHECK] [INCL. 13,18-21]
1543285-619
$669.99
12
ASM., RAIL, 144, LH, INDY RED [SNOW CHECK] [INCL. 13,18-21]
1543285-293
$564.99
12
ASM., RAIL, 144, RH, VOODOO BLUE [SNOW CHECK] [INCL. 13,18-21]
1543286-619
$703.49
12
ASM., RAIL, 144, RH, BLACK [SNOW CHECK] [INCL. 13,18-21]
1543286-067
$1,019.99
12
ASM., RAIL, 144, LH, ORANGE BURST [SNOW CHECK] [INCL. 13,18-21]
1543285-647
Unavailable
12
ASM., RAIL, 144, RH, ORANGE BURST [SNOW CHECK] [INCL. 13,18-21]
1543286-647
Unavailable
12
ASM., RAIL, 144, RH, NATURAL [INCL. 13,18-21]
1543286-309
$594.99
12
ASM., RAIL, 144, LH, NATURAL [INCL. 13,18-21]
1543285-309
$594.99
12
ASM., RAIL, 144, LH, BLACK [SNOW CHECK] [INCL. 13,18-21]
1543285-067
$1,097.49
13
NUT-5/16-18 HX FLG NL-Y
7542343
$4.79
13
NUT-5/16-18 HX FLG NL-Y
7542343
$4.79
14
BUMPER
5432166
$5.59
15
Screw
7515199
$1.49
16
SCREW
7517227
$7.19
17
NUT
7542404
$1.59
18
BLOCK, IDLER BOLT ADJUSTABLE
5130530
$32.37
19
RIVET
7621501
$2.39
20
Screw
7512392
$4.79
20
Screw
7512392
$4.79
21
PLATE, RAIL REINFORCE
5136588
$60.70
22
MOUNT, TORSION SPRING
5136368
$16.99
23
Pin, Clevis
7661123
$3.99
23
GUIDE, SPRING, SQUARE
5434334
$28.32
23
PIN, HITCH
7661644
$2.39
24
HI-FAX,.45/74",SERVICE,BLK [SNOW CHECK][HI-FAX]
5521633-070
$40.46
24
HI-FAX,.45/74",SERVICE,NAT [HI-FAX]
5521633-309
$40.46
25
Screw
7515199
$1.49
26
Screw
7515346
$5.59
27
WASHER, SPRING, CON.
7556387
$1.59
28
BEARING [1 PER WHEEL]
3514384
$19.84
28
RING-RETAINING [1 PER WHEEL]
7710444
$8.79
28
ASM., WHEEL
1590457
$35.99
29
BLOCK, WHEEL MOUNT
5631446
$24.27
30
NUT-5/16-18 NYLOK-Y
7542324
$1.49
