- 800 SWITCHBACK ASSAULT 144 ALL OPTIONS (R02) - S17EEC8
SUSPENSION, RAIL MOUNTING - S17EEC8 ALL OPTIONS (600251)

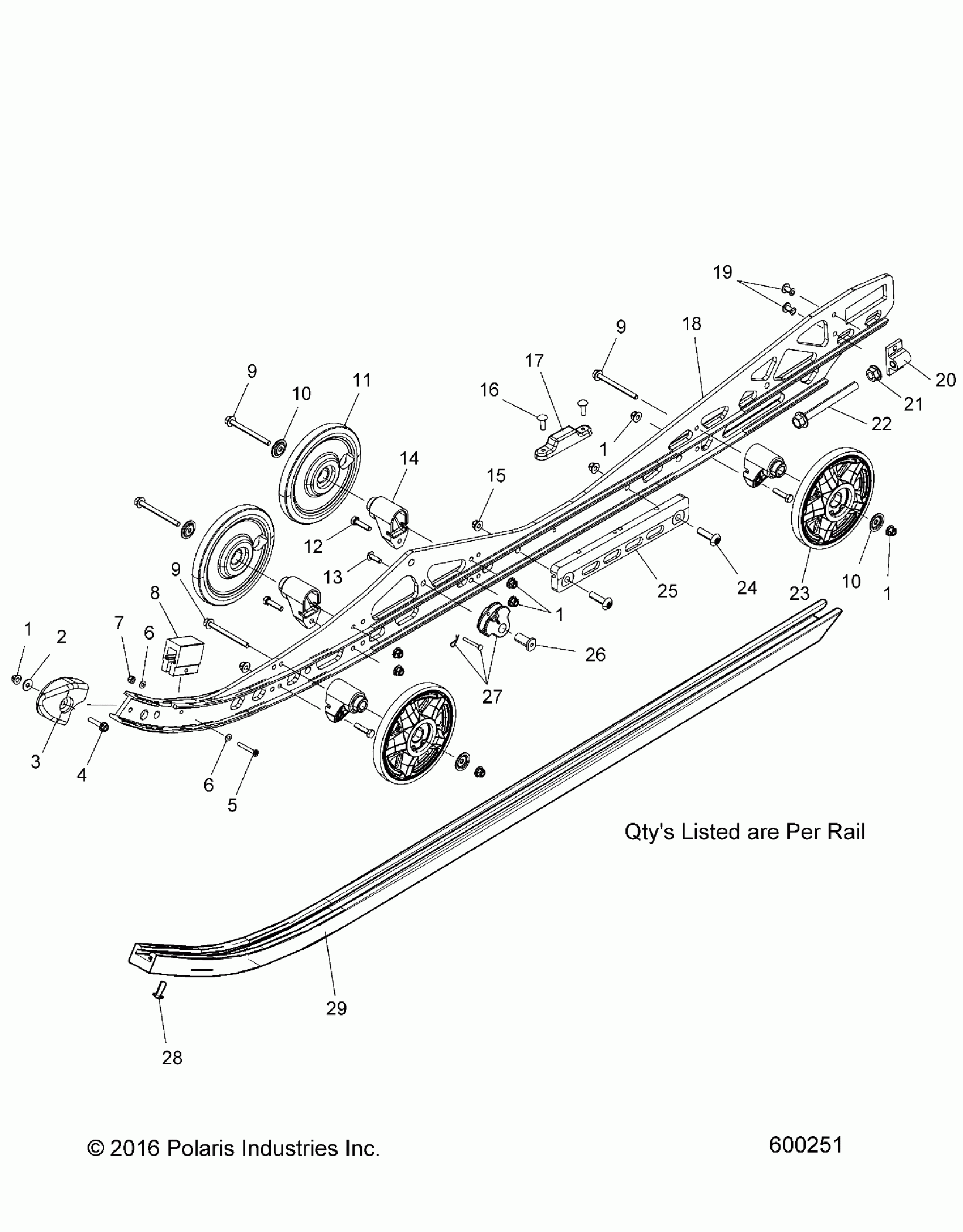

Polaris 800 SWITCHBACK ASSAULT 144 ALL OPTIONS (R02) - S17EEC8 SUSPENSION, RAIL MOUNTING - S17EEC8 ALL OPTIONS (600251) Diagram
#
1
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
1
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
1
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
2
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
3
CAP, RAIL TIP
5438374
$20.22
4
SCREW
7518993
$2.39
5
Screw
7510504
$6.76
6
Washer, Flat
7555783
$3.99
6
Washer, Flat
7555783
$3.99
7
Nut, Nylok
7541925
$1.49
8
BUMPER, JOUNCE, FRONT
5521499
$8.89
9
SCR-HXFL- M6X1.0X70 10.9 ZOD
7519908
$4.79
9
SCR-HXFL- M6X1.0X70 10.9 ZOD
7519908
$4.79
9
SCR-HXFL- M6X1.0X70 10.9 ZOD
7519908
$4.79
10
WASHER, OFFSET
7556799
$3.19
10
WASHER, OFFSET
7556799
$3.19
11
BEARING [1 PER WHEEL]
3514384
$19.84
11
RING-RETAINING [1 PER WHEEL]
7710444
$8.79
11
ASM., WHEEL, PLAIN
1590457
$35.99
12
SCREW, HH
7517510
$4.79
13
SCREW, M8x25 TXTR
7518906
$3.19
14
BLOCK, WHEEL MOUNT
5632808
$24.27
15
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
16
Screw
7515199
$1.49
17
BUMPER
5432166
$5.59
18
ASM., RAIL, 144, LH, INDY RED [SNOW CHECK] [INCL. 15,19,20,24,25]
1543559-293
$664.99
18
ASM., RAIL, 144, RH, VELOCITY BLUE [SNOW CHECK] [INCL. 15,19,20,24,25]
1543560-689
$729.99
18
ASM., RAIL, 144, RH, BLACK [SNOW CHECK] [INCL. 15,19,20,24,25]
1543560-067
$664.99
18
ASM., RAIL, 144, LH, ORANGE BURST [SNOW CHECK] [INCL. 15,19,20,24,25]
1543559-647
$799.99
18
ASM., RAIL, 144, RH, ORANGE BURST [SNOW CHECK] [INCL. 15,19,20,24,25]
1543560-647
$799.99
18
ASM., RAIL, 144, LH, NATURAL [INCL. 15,19,20,24,25]
1543559-309
$664.99
18
ASM., RAIL, 144, RH, INDY RED [SNOW CHECK] [INCL. 15,19,20,24,25]
1543560-293
$664.99
18
ASM., RAIL, 144, LH, VELOCITY BLUE [SNOW CHECK] [INCL. 15,19,20,24,25]
1543559-689
$799.99
18
ASM., RAIL, 144, RH, NATURAL [INCL. 15,19,20,24,25]
1543560-309
$664.99
18
ASM., RAIL, 144, LH, BLACK [SNOW CHECK] [INCL. 15,19,20,24,25]
1543559-067
$664.99
19
RIVET
7621501
$2.39
20
BLOCK-IDLER BOLT ADJ METRIC
5136570
$34.99
21
NUT, HXFL
7547017
$5.59
22
SCREW, HXFL
7519167
$11.99
23
BEARING
3514384
$19.84
23
RING-RETAINING
7710444
$8.79
23
ASM., WHEEL, LWT
1590511
$38.39
24
SCREW, M8x30 TR/TX
7518953
$1.59
25
PLATE, RAIL REINFORCE
5136588
$60.70
26
SHAFT, SPRING ROLLER
5136687
$10.51
27
Pin, Clevis
7661123
$3.99
27
GUIDE, SPRING, SQUARE
5434334
$28.32
27
PIN, HITCH
7661644
$2.39
28
SCREW
7518976
$3.19
29
HI-FAX,.45/74",SERVICE,BLK [SNOW CHECK][HI-FAX]
5521633-070
$40.46
29
HI-FAX,.45/74",SERVICE,NAT [HI-FAX]
5521633-309
$40.46
