- 800 SKS 146 SC SELECT ALL OPTIONS (R01) - S20ELS8PS
SUSPENSION, TORQUE ARM, REAR - S20ELS8PS ALL OPTIONS (C601283)

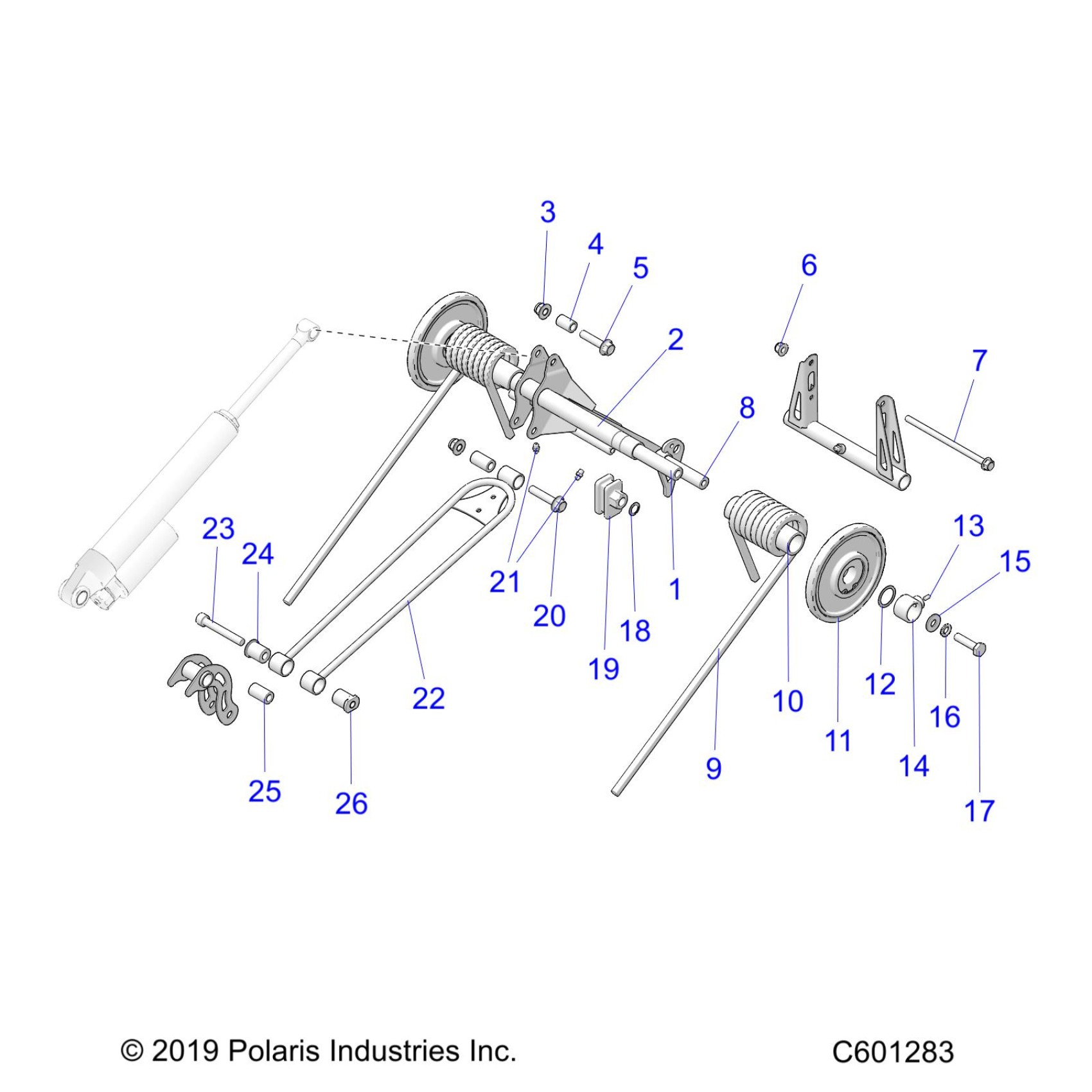

Polaris 800 SKS 146 SC SELECT ALL OPTIONS (R01) - S20ELS8PS SUSPENSION, TORQUE ARM, REAR - S20ELS8PS ALL OPTIONS (C601283) Diagram
#
Description
Price
1
SHAFT
5137223
$69.99
2
WELD-RTA ECOAT
1543511-329
$264.99
3
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
4
BUSHING
5136569
$8.79
5
SCR-M10X1.5X45 8.8 HX/FL ZOD
7518958
$3.19
6
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
7
SCR-HXFL-M8X1.25X150 8.8 ZOD
7519200
$9.59
8
SHAFT
5337198
$28.32
9
SPRG-TORSION.359SQ/77LH,ECOAT [STD]
7041629-329
$113.32
9
SPRG-TORSION.359SQ/77RH,ECOAT [STD]
7041630-329
$113.32
9
SPRING-TORSION,.347SQ/77�LHBLK [OPT]
7041627-067
$135.54
9
SPRING-TORSION,.347/77�,RH,BLK [OPT]
7041628-067
$135.54
9
SPRG-TORS,.375SQ/77,LH,ECOAT [OPT]
7041942-329
$117.37
9
SPRG-TORS,.375SQ/77,RH,ECOAT [OPT]
7041943-329
$113.32
10
SLEEVE-TORSION SPRING RMK
5434337
$7.99
11
ASM-WHL,CARRIER,LWT,PLAIN,5.62
1590539
$54.99
11
BEARING
3514303
$11.99
11
RET.RING-TRUARC
7718407
$4.79
12
WASHER, SPRING
7571605
$6.39
13
SCR-10-24-3/8 SOC/SET-Y
7518262
$3.99
14
SPACER
5135424
$19.99
15
WSHR-M10.5X25X2.4 ZPC
7556559
$3.19
16
WSHR-M10,SPRING LOC ZPC
7556558
$2.39
17
SCR-HH,M10X40 10.9 ZPC P80
7519223
$3.99
18
CLIP-PUSH ON
7080394
$2.39
19
ROLLER-SPRING,ADJ,SQUARE,X10
5432983
$9.70
20
SCR-M10X1.5X50 8.8 HX/FL ZOD
7518971
$6.39
21
FITTING-LUBRICATION 1/4-28
7080424
$4.79
22
WELD-SHOCK ROD ECOAT
1543561-329
$102.21
23
SCR-SH-M10X1.5X70 12.9 ZOD P80
7520368
$6.39
24
BUSHING, RTS
5140273
$11.99
25
BUSHING
5137360
$3.99
26
BUSHING, RTS, THREADED
5140274
$11.99
