- 800 SKS 146 SC SELECT ALL OPTIONS (R01) - S20ELS8PS
SUSPENSION, RAIL ASM. - S20ELS8PS ALL OPTIONS (C601265)

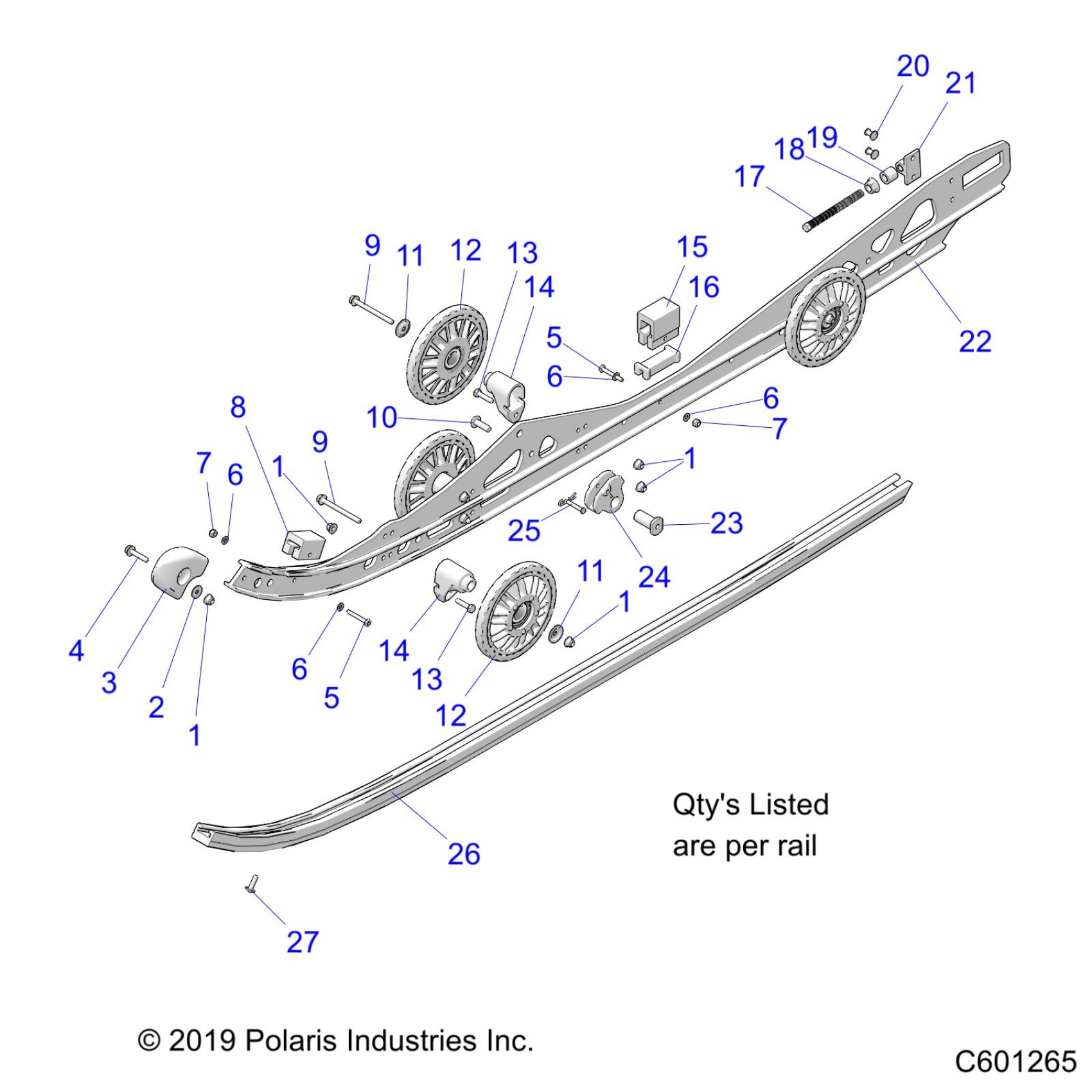

Polaris 800 SKS 146 SC SELECT ALL OPTIONS (R01) - S20ELS8PS SUSPENSION, RAIL ASM. - S20ELS8PS ALL OPTIONS (C601265) Diagram
#
1
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
$1.49
1
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
$1.49
1
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
$1.49
1
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
$1.49
2
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
3
CAP, RAIL TIP
5438374
$20.22
4
SCR-M6X1.0X30 8.8 HXFL ZOD
7518993
$2.39
5
SCREW-#10-24X1.5,TRX/PN MC-Y
7510504
$6.76
5
SCREW-#10-24X1.5,TRX/PN MC-Y
7510504
$6.76
6
Washer
7555783
$3.99
6
Washer
7555783
$3.99
6
Washer
7555783
$3.99
6
Washer
7555783
$3.99
7
BUMPER, JOUNCE, FRONT
5521499
$8.89
7
BUMPER, JOUNCE, FRONT
5521499
$8.89
8
NUT-NYLOC 10-24 Y
7541925
$1.49
9
SCR-HXFL- M6X1.0X70 10.9 ZOD
7519908
$4.79
9
SCR-HXFL- M6X1.0X70 10.9 ZOD
7519908
$4.79
10
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
11
WASHER, OFFSET
7556799
$3.19
11
WASHER, OFFSET
7556799
$3.19
12
ASM-WHEEL SPOKED 5.62
1590632
$38.39
12
BEARING-.7874X1.6535X.4724 NSK
3515142
$19.99
12
RING-RETAINING
7710444
$8.79
12
ASM-WHEEL SPOKED 5.62
1590632
$38.39
12
BEARING-.7874X1.6535X.4724 NSK
3515142
$19.99
12
RING-RETAINING
7710444
$8.79
13
SCR-HH-M6X1.0X25 8.8 ZPB
7517510
$4.79
13
SCR-HH-M6X1.0X25 8.8 ZPB
7517510
$4.79
14
BLOCK, WHEEL MOUNT
5632808
$24.27
14
BLOCK, WHEEL MOUNT
5632808
$24.27
15
BUMPER-JOUNCE,REAR
5521498
$8.89
16
LINER-BUMPER
5432946
$9.70
17
SCR-HX-M10X1.5X100,8.8,ZOD
7520083
$12.79
18
NUT-HXFLGHD,M10,0600087
7547017
$5.59
19
SPACER
5137152
$3.19
20
RIVET-FLAT HD-1/4 X .575
7621501
$2.39
21
BLOCK-IDLER BOLT ADJ METRIC
5136570
$34.99
22
ASM., RAIL, LH, BASIC 146, NAT. [INCL. 20,21]
1543814-309
$674.99
22
ASM., RAIL, RH, BASIC 146, NAT. [INCL. 20,21]
1543815-309
$674.99
22
ASM., RAIL, LH, BASIC 146, BLACK [INCL. 20,21]
1543814-067
$674.99
22
ASM., RAIL, RH, BASIC 146, BLACK [INCL. 20,21]
1543815-067
$674.99
22
ASM., RAIL, LH, BASIC 146, RED [INCL. 20,21]
1543814-293
$664.99
22
ASM., RAIL, RH, BASIC 146, RED [INCL. 20,21]
1543815-293
$674.99
22
ASM., RAIL, LH, BASIC 146, WHITE [INCL. 20,21]
1543814-599
$674.99
22
ASM., RAIL, RH, BASIC 146, WHITE [INCL. 20,21]
1543815-599
$674.99
22
ASM., RAIL, LH, BASIC 146, LIME SQUEEZE [INCL. 20,21]
1543814-630
$674.99
22
ASM., RAIL, RH, BASIC 146, LIME SQUEEZE [INCL. 20,21]
1543815-630
$674.99
22
ASM., RAIL, LH, BASIC 146, ORANGE BURST [INCL. 20,21]
1543814-647
$674.99
22
ASM., RAIL, RH, BASIC 146, ORANGE BURST [INCL. 20,21]
1543815-647
$674.99
22
ASM., RAIL, LH, BASIC 146, GHST GRAY [INCL. 20,21]
1543814-728
$674.99
22
ASM., RAIL, RH, BASIC 146, GHST GRAY [INCL. 20,21]
1543815-728
$674.99
22
ASM., RAIL, LH, BASIC 146, IND SKY BLUE [INCL. 20,21]
1543814-737
$649.99
22
ASM., RAIL, RH, BASIC 146, IND SKY BLUE [INCL. 20,21]
1543815-737
$649.99
23
SHAFT-SPRING ROLLER
5136687
$10.51
24
GUIDE-SPRING SQUARE
5434334
$28.32
25
PIN-CLEVIS 3/16X1 1/4
7661123
$3.99
25
PIN-HITCH, 3/32-Y
7661644
$2.39
26
HI-FAX,.45/74",SERVICE,BLK
5521633-070
$40.46
27
SCR-M6X1.0X20 TR/TX/TAP ZOD
7518976
$3.19
